3

Features

The Matrix Orbital Parallel display series offers a low cost display solution utilizing an industry standard
communication interface for simple integration into a wide variety of new and existing applications. The
Light Emitting Diode backlight with configurable brightness and voltage controlled contrast allows the
MOP Liquid Crystal Display line to offer a professional display solution for any project.

Hardware

Drawing

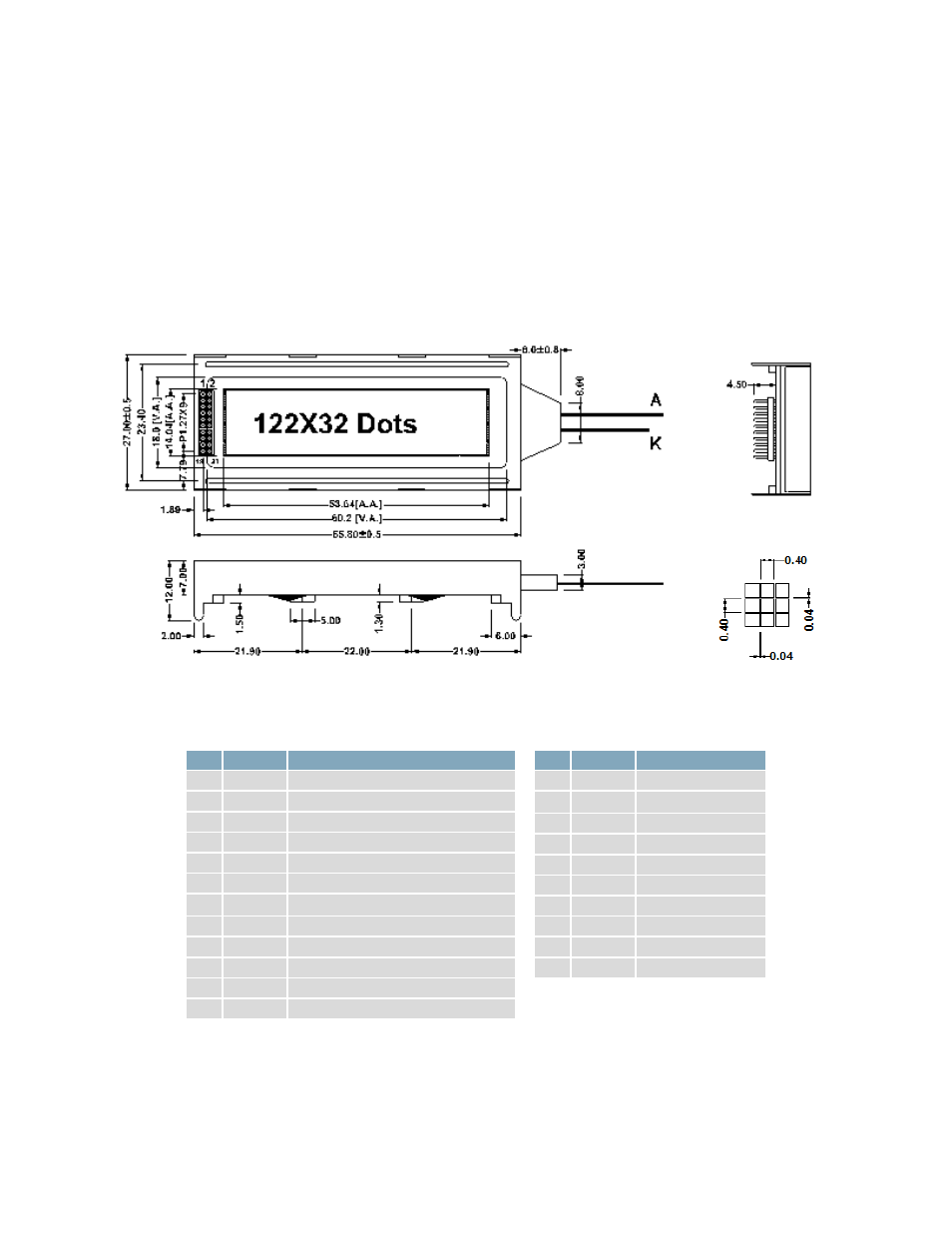

Figure 1: MOP-GL12232D Mechanical Drawing

Interface

Table 1: Display Control

Pin Symbol

Description

1

RS

Register Select

2

CS2

Chip Enable (Right)

3

CS1

Chip Enable (Left)

4

NC

No Connect

5

NC

No Connect

6

W/R

Write/Read

7

V

SS

Ground

16

V

DD

Supply Voltage for Logic

17

RST

Reset

18

V

0

Supply Voltage for LCD (Contrast)

19

NC

No Connect

20

NC

No Connect

Table 2: Parallel Data and Backlight

Pin Symbol

Description

8

DB0

Data bit 0

9

DB1

Data bit 1

10

DB2

Data bit 2

11

DB3

Data bit 3

12

DB4

Data bit 4

13

DB5

Data bit 5

14

DB6

Data bit 6

15

DB7

Data bit 7

A

LED (+)

Backlight Anode

K

LED (-)

Backlight Cathode

*Note:

Offered on applicable units only
