Matrix Orbital MOP-GL12232D - Manual (Page 6)

5
Timing Characteristics
Table 5: Read and Write Operation Specifications
Item Symbol Min Typ Max Unit
Address Hold Time t
AH
10 － － ns
Address Set-Up Time t
AW
20 － － ns
System Cycle Time t
CYC
1000 － － ns
Control Pulse Width t
CC
200 － － ns
Data Set-Up Time t
DS
80 － － ns
Data Hold Time t
DH
10 － － ns
Access Time t
ACC
－ － 90 ns
Output Hold Time t
OH
10 － 60 ns
Conditions: Ta = -20℃ to 75℃, VDD = 5.0± 0.5V

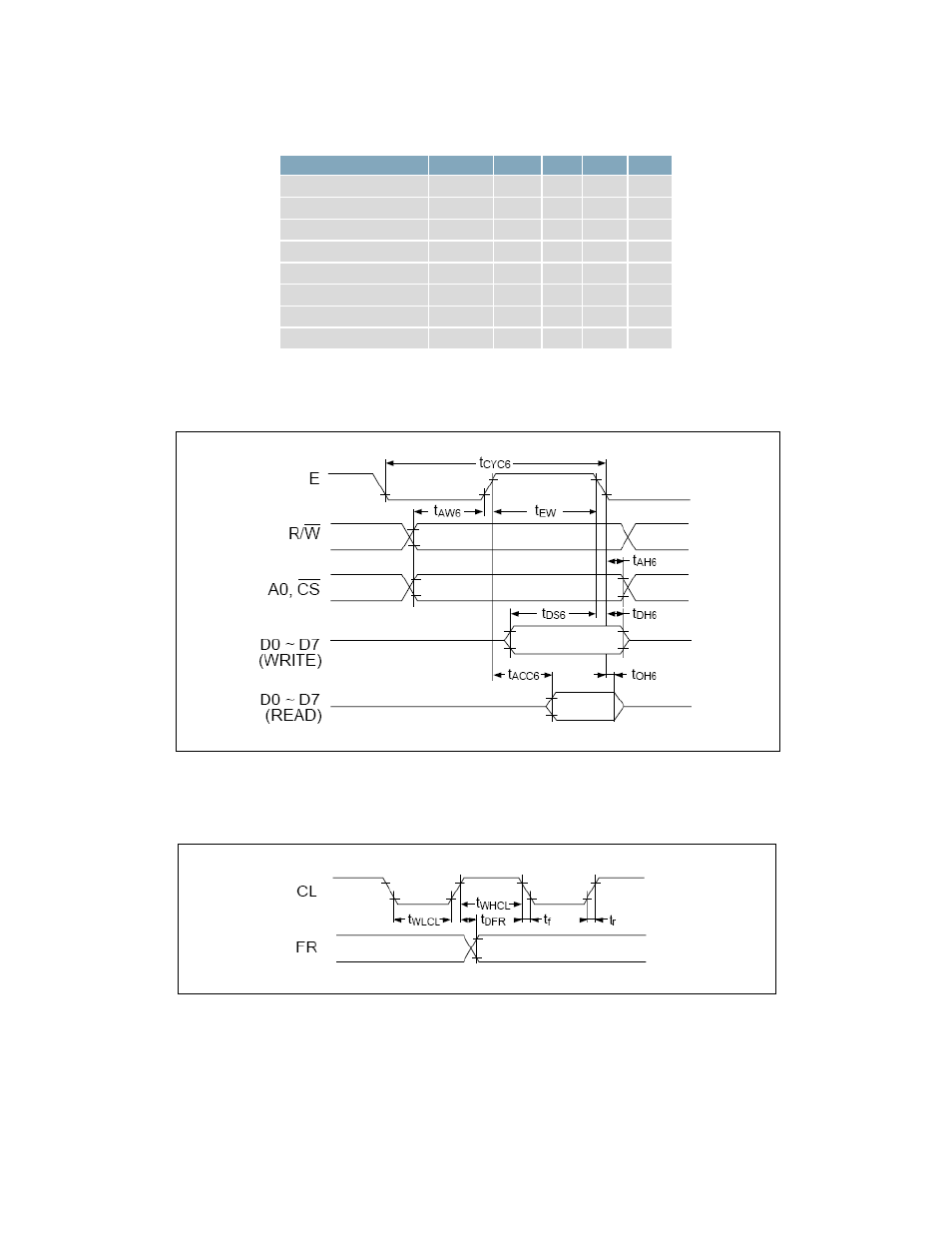

Figure 2: Read/Write Timing Waveform
Figure 3: Control Timing Waveform
