2
2 Quick Connect Guide
2.1 Available Headers

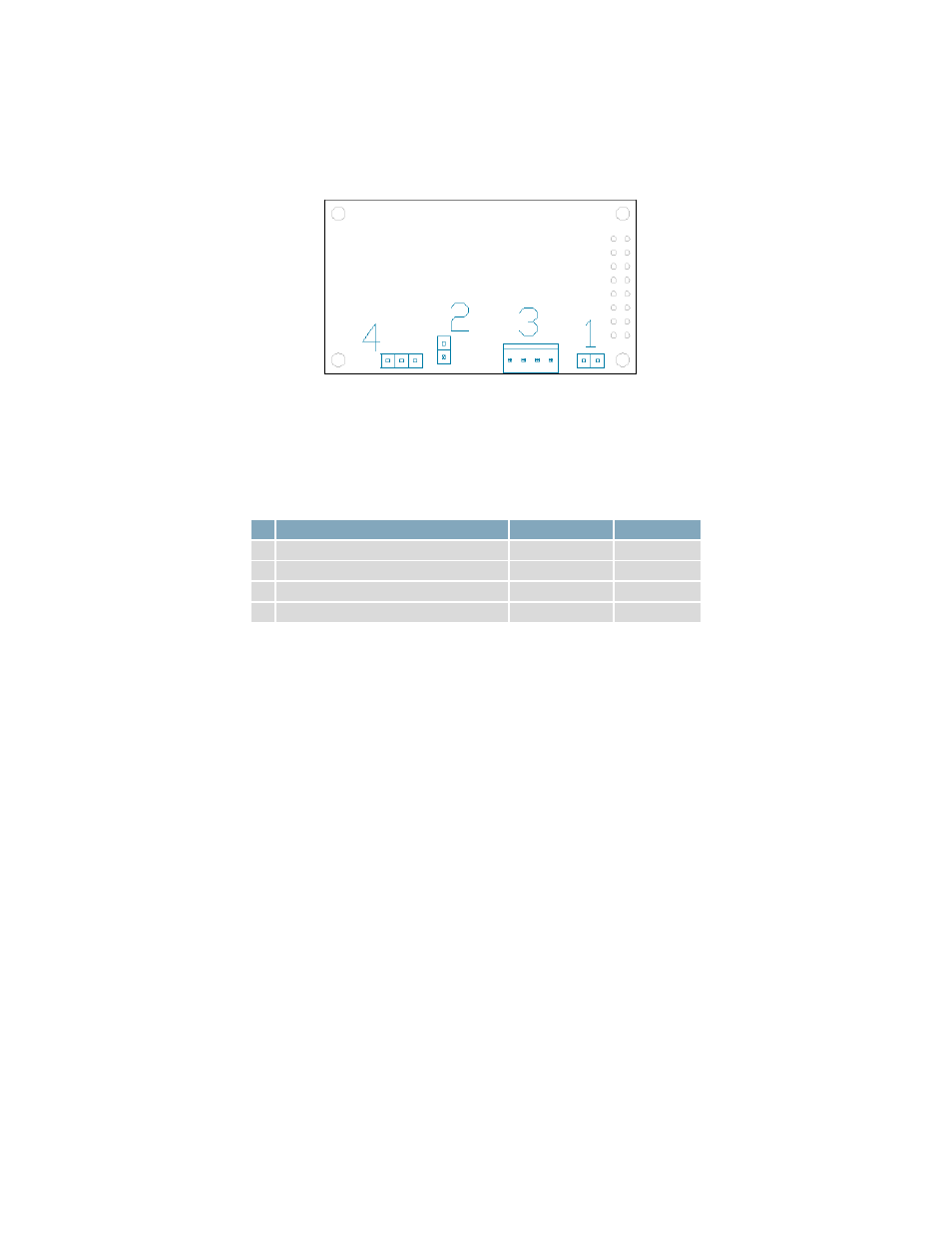

Figure 2: LCD0821 Standard Module Header Locations
Table 1: List of Available Headers
# Header Mate Population
1 GPO Header None Offered All Models
2 Manual Override Jumper All Models
3 Communication/Power Connector SCCPC5V/BBC All Models
4
Alternate Serial Header None Offered All Models
