25

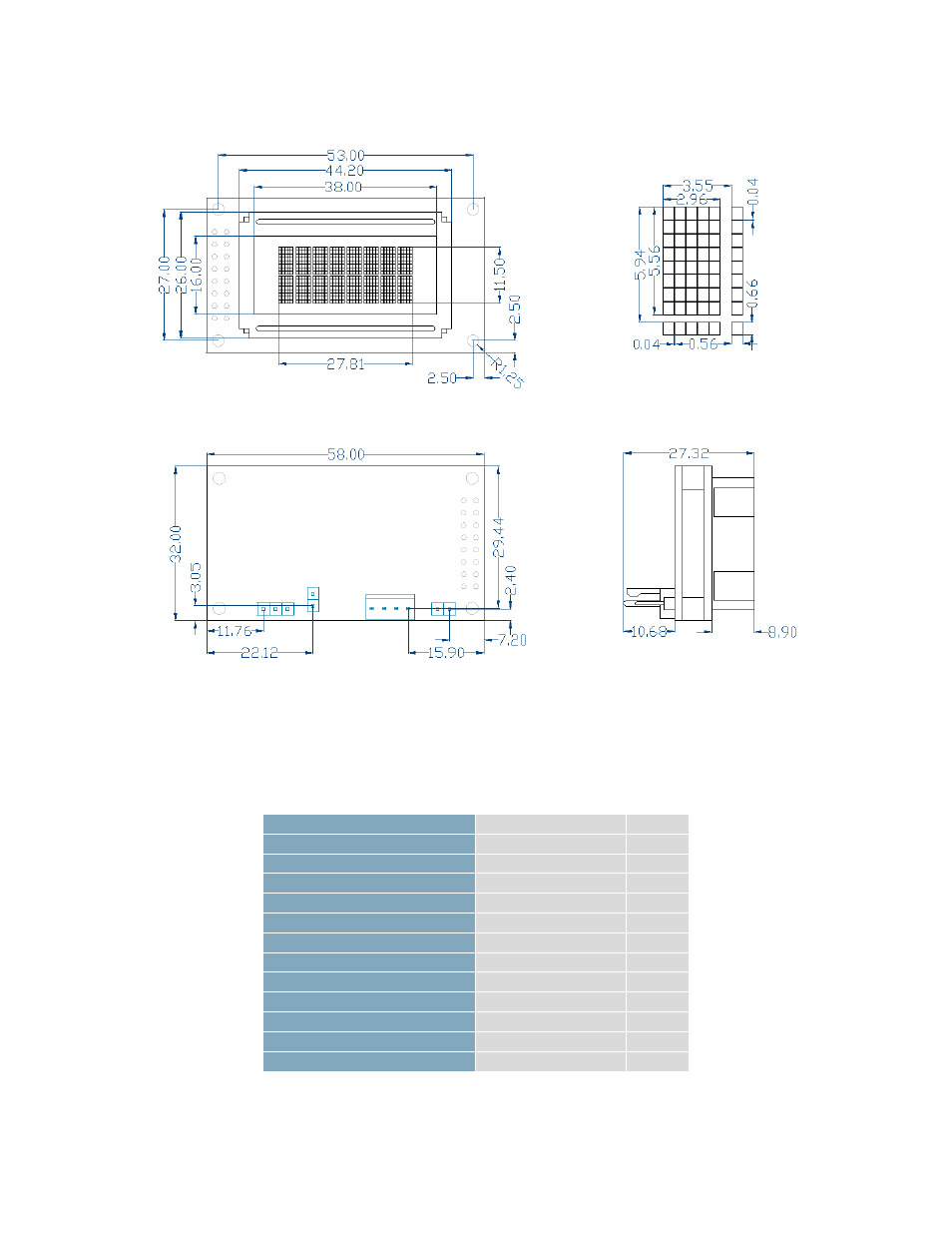

7.6 Dimensional Drawings
Figure 12: Display Dimensional Drawing *
Figure 13: Standard Model Dimensional Drawing
*Note: Mounting hole diameter was decreased to 2.5mm in 2013 as per PCN 20130410-01.
7.7 Optical Characteristics
Table 25: Display Optics
Module Size 58.00 x 32.00 x 26.80 mm
Viewing Area 38.0 x 16.0 mm
Active Area 27.80 x 11.49 mm
Character Size 2.96 x 5.56 mm
Character Pitch 3.55 x 5.94 mm
Pixel Size 0.56 x 0.66 mm
Pixel Pitch 0.60 x 0.70 mm
Viewing Direction 12 O’clock
Viewing Angle -30 to +30 °
Contrast Ratio 3
Backlight Half-Life (IY & YG) 50,000 Hours
Backlight Half-Life (R) 20,000 Hours
Backlight Half-Life (GW & WB) 10,000 Hours
