VK202-25 rev. 05 10
PC wiring
Display module wiring
+5 V
+12 V
GND
GND
+12 V

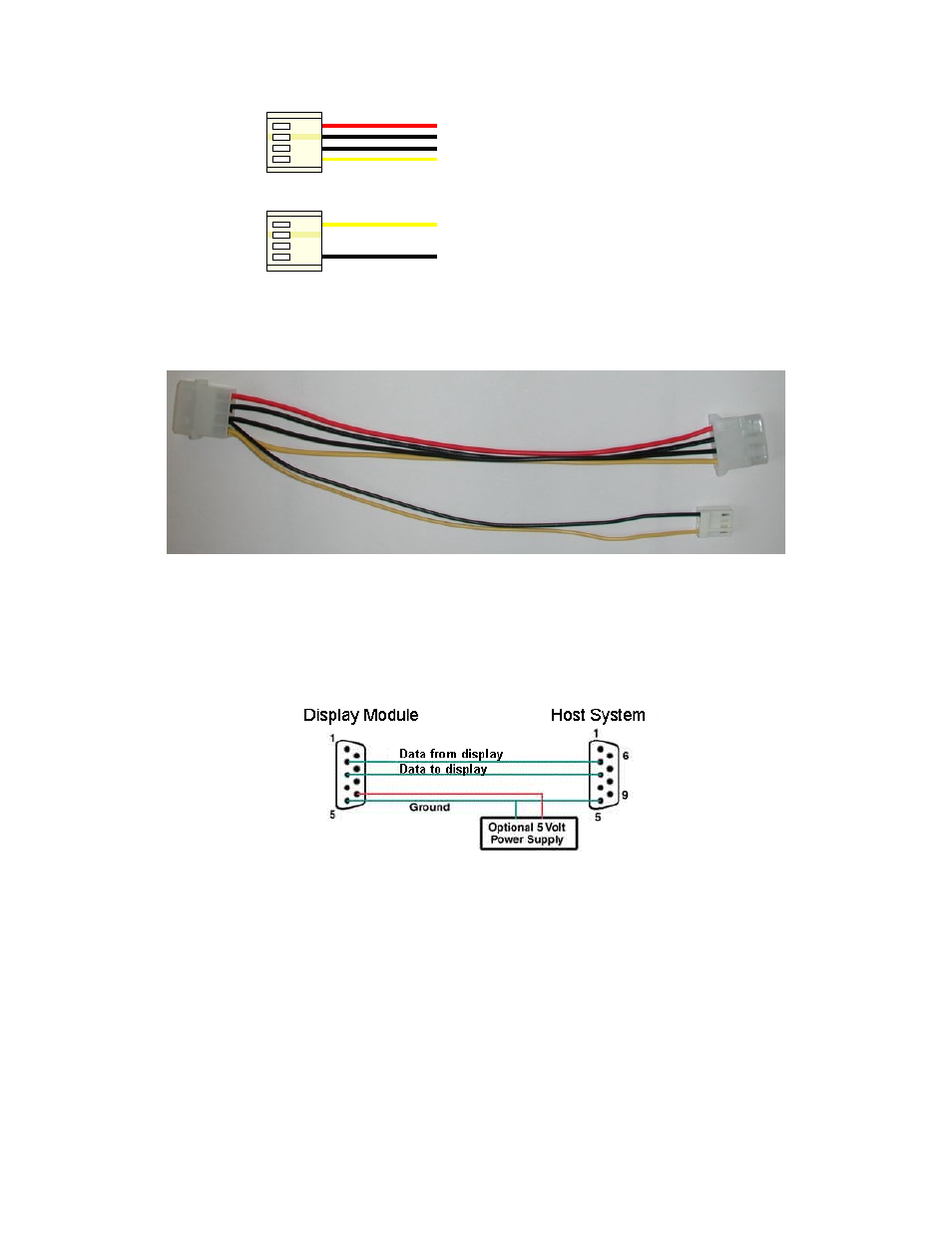

Figure 2-5 Wiring for 12 volt modules
If you don't want to modify cable wiring yourself, Matrix Orbital can supply an adapter cable designed to
use with the display module when it's installed in a PC. The cable is wired as shown in Figure 2-6 below.
Figure 2-6 Twelve volt power cable
2.1.2 RS-232 Communications
A standard DB-9F is provided for RS-232 communications. Power may also be supplied via this connector
if desired. See Figure 2-7 for pin connections.
Figure 2-7 RS-232 and power connector
The RS-232 connector on the PC cable is wired so that a standard “straight through” 9 pin D-sub cable may
be used to connect the module to a standard serial port such as COM ports on PCs. Note that this device
complies with the EIA232 standard in that it uses signal levels from ± 3V to ± 12V. It will not operate
correctly at TTL (0 to +5V) levels with out modification.
