1 Command Summary
1 Introduction

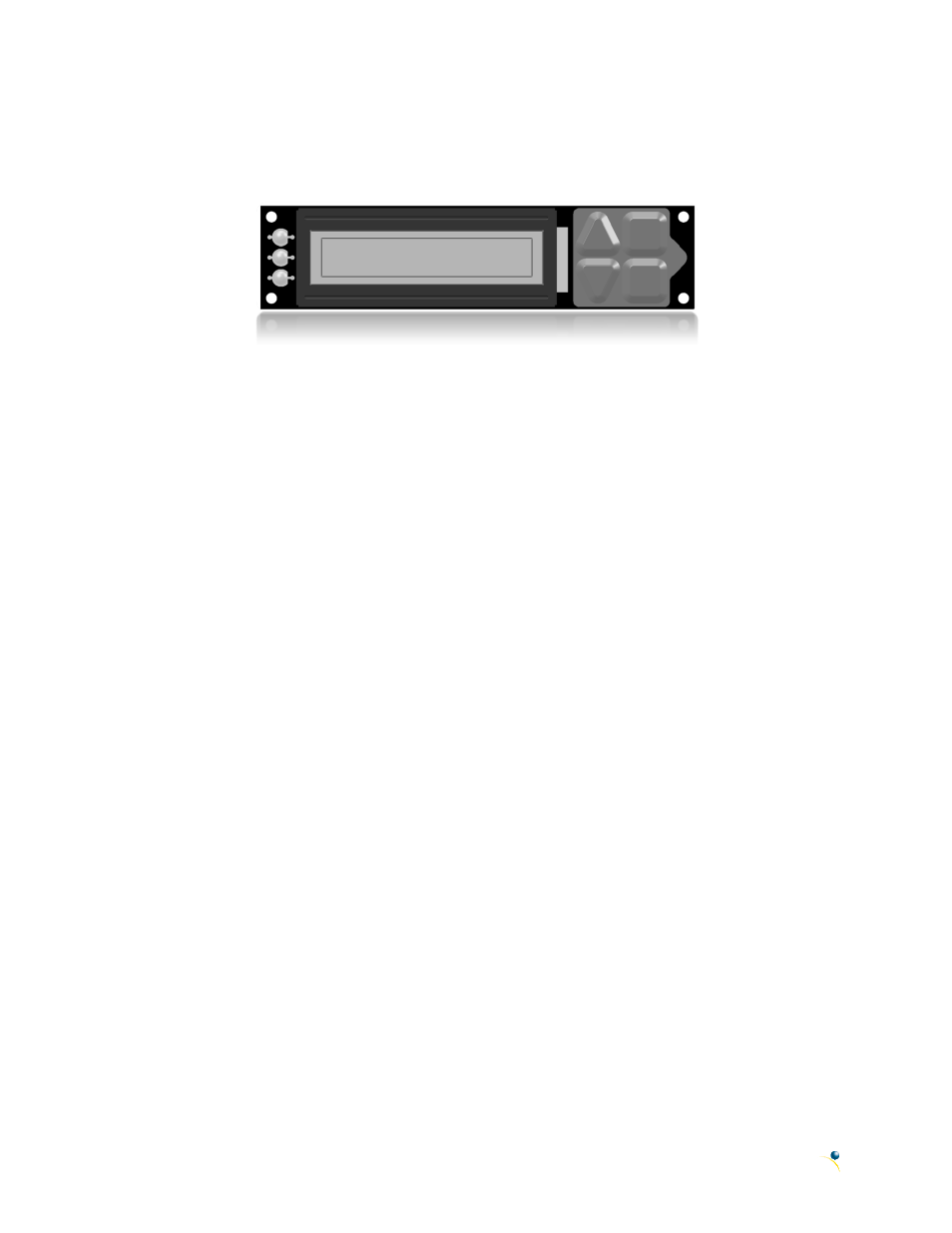

Figure 1: LK162A-4T Display
The LK162A-4T is an intelligent alphanumeric liquid crystal display designed to decrease development
time by providing an instant solution to any project. In addition to the RS232, TTL and I2C protocols
available in the standard model, the USB communication model allows the LK162A-4T to be connected
to a wide variety of host controllers. Communication speeds of up to 115.2kbps for serial protocols and
100kbps for I
2 C ensure lightning fast display updates.
The simple command structure permits easy software control of many settings including backlight
brightness, screen contrast, and baud rate. On board memory provides up to forty custom characters
which can be saved within the unit and recalled for start screens, bar graphs or larger numbers.
User input on the LK162A-4T is available through a four key, integrated tactile keypad and three bi-
colour LEDs provide visual output. An additional two general purpose outputs on the back of the unit
provide simple, switchable five volt sources.
The versatile LK162A-4T, with all the features mentioned above, is available in a variety of colour,
voltage, and temperature options to suit almost any application.
