Command Summary 61

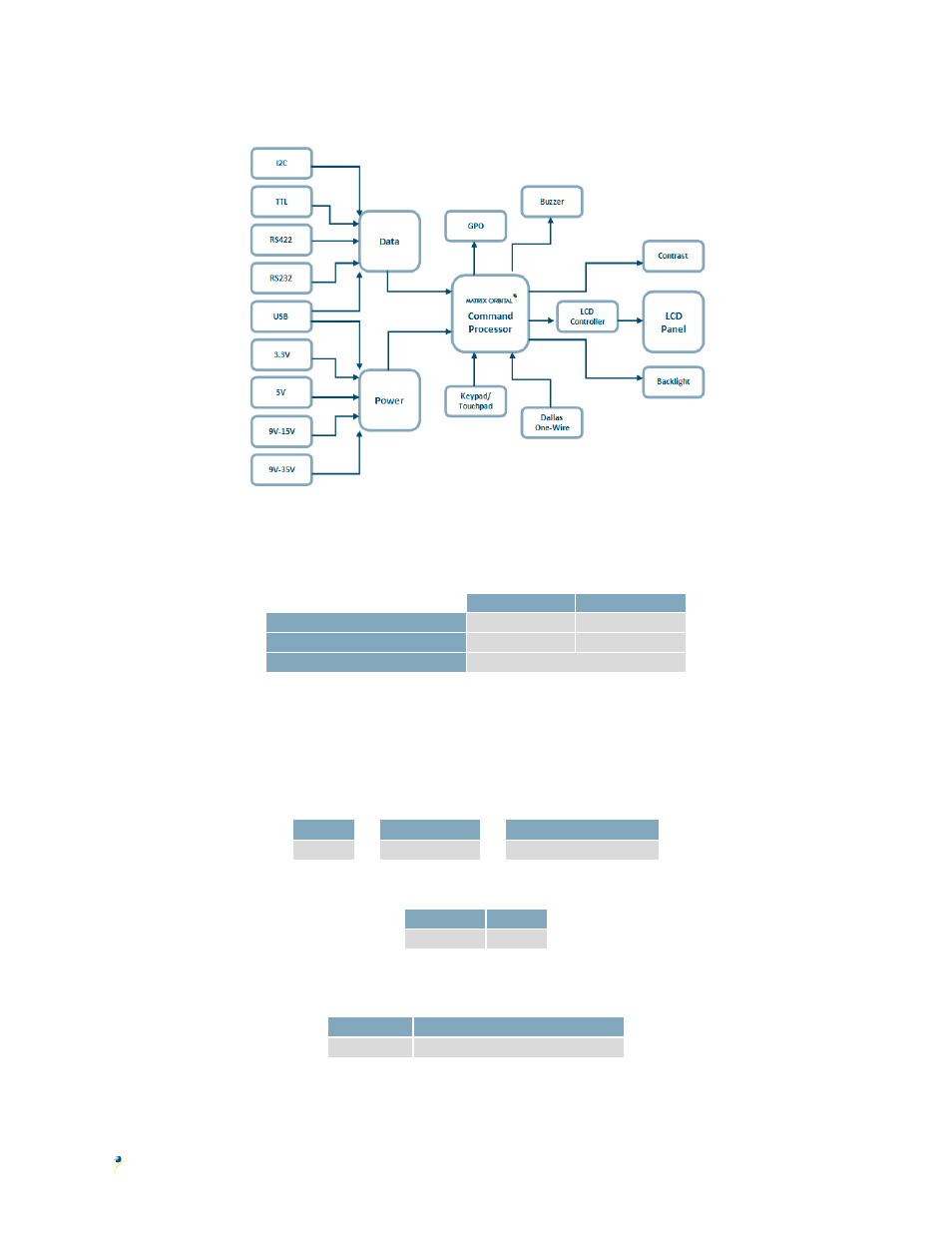

7.1 Block Diagram
Figure 21: Functional Diagram
7.2 Environmental Specifications
Table 68: Environmental Limits
Standard *Extended (-E)
Operating Temperature 0°C to +50°C -20°C to +70°C
Storage Temperature -10°C to +60°C -30°C to +80°C
Operating Relative Humidity Maximum 90% non-condensing
*Note: The Extended Temperature option is not available for any variant of the GLT24064R-1U.
7.3 Electrical Tolerances
Current Consumption
Table 69: Current Consumption
Board
+
Backlight
+
GPOs
130mA 55 to 205 mA 13mA each maximum
Table 70: Backlight Current Draw
GW & WB TCI
55mA 205mA
Input Voltage Specifications
Table 71: Voltage Specifications
Standard Extended Wide Voltage (-VPT)
4.75-5.25V 9.0-35.0V
