Aalborg SDPROCs User Manual
Page 49

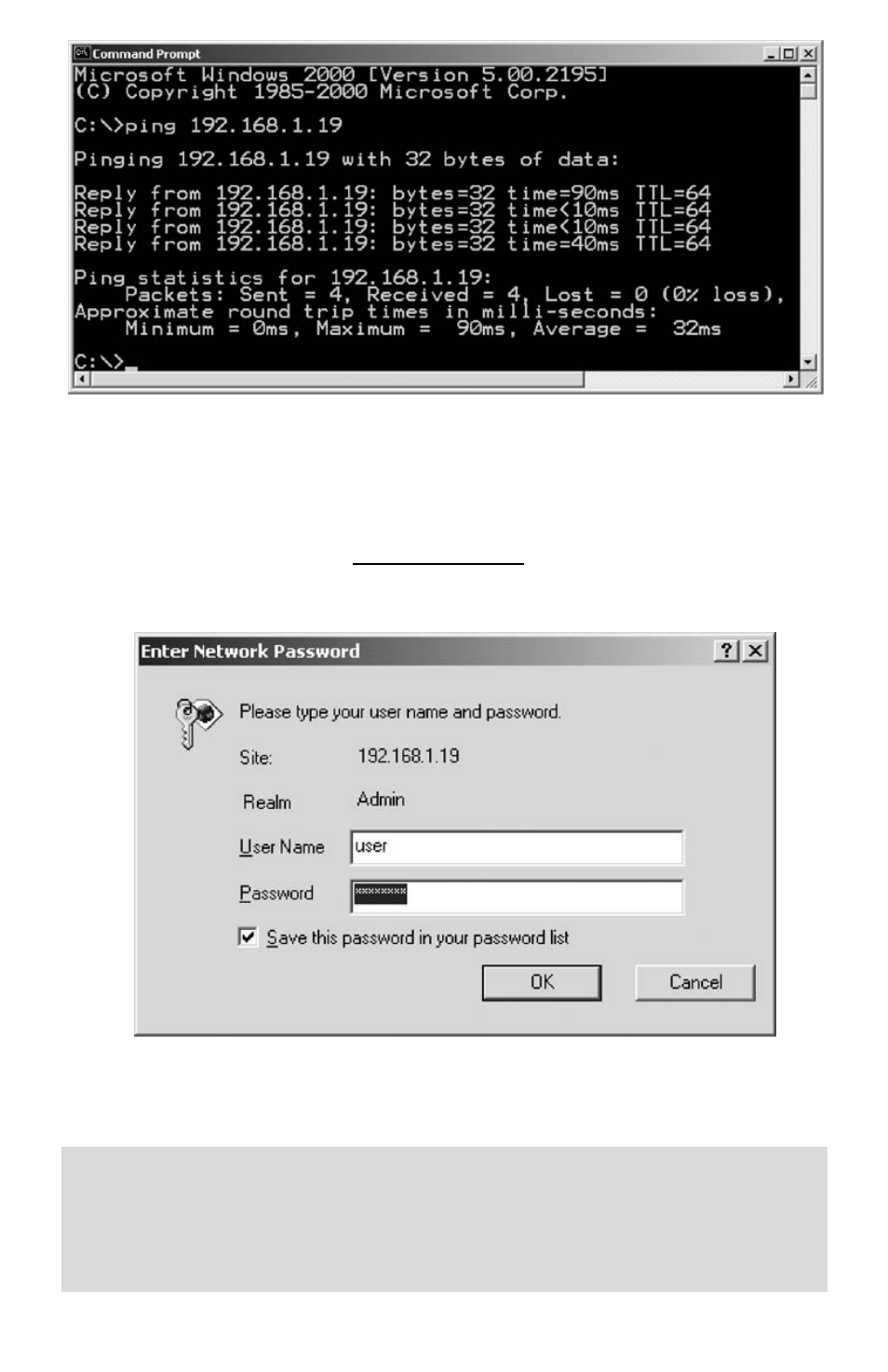

Figure i-2 Pinging SDPROC MS-DOS Prompt
i.4 Operation Using the SDPROC Web Page
a)
Start your Web browser.
b)
From the browser type http://192.168.1.19
(if IP address was changed use new IP address).
c)
The Home Page, shown below, will be displayed.
44
Figure i-3 Network Password Page
d)
Enter User Name and Password and click OK.
NOTE: The SDPROC is shipped with default User Name: “user” and Password:
“password”. For network security purposes you can change User Name and
Password using the serial interface command UAC (see section h.3 for details).
In order to use serial interface commands make sure that the serial cable is
connected between SDPROC and your PC.
,
