e.2.10 Status Check

While in the Main Display press the UP button on the front panel of the SDPROC. The
Relays Assignment Status will appear.

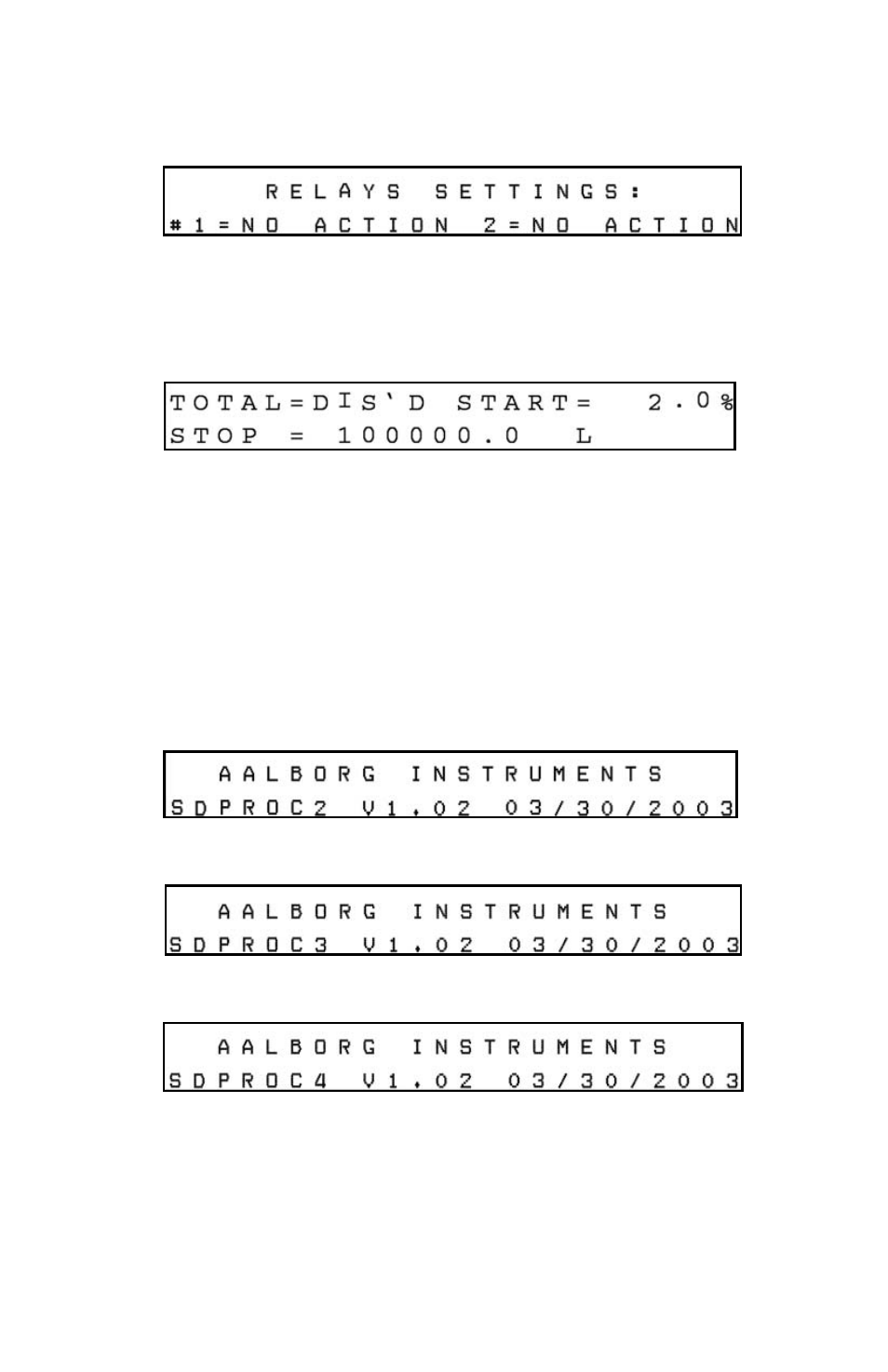

Relays Status Display One channel SDPROC

Pressing the UP button again will bring up the Totalizer Settings screen. Pressing the
DOWN button will return to the Main Display.

Totalizer Settings Display One channel SDPROC

Press UP one more time to return to the Main Display.

E.3 MULTI CHANNEL SDPROC

e.3.1 Start up Display

Switching the power ON, the following will be shown on the display at the front of the
SDPROC.

Start up Display for 2 channel SDPROC

Start up Display for 3 channel SDPROC

Start up Display for 4 channel SDPROC
