MICRImage Check Reader
10
CARD READING PROCEDURE
1.
Orient the card so that the magnetic stripe is down and facing away from the logo on the
unit and toward the wide color stripe on the MRS, as indicated in Figure 3-2.
2.
Slide the card in one motion from the top of the unit down through the slot as indicated in
the illustration.
3.
After the card is read, the MICRImage will transmit the data as specified by the
parameters.

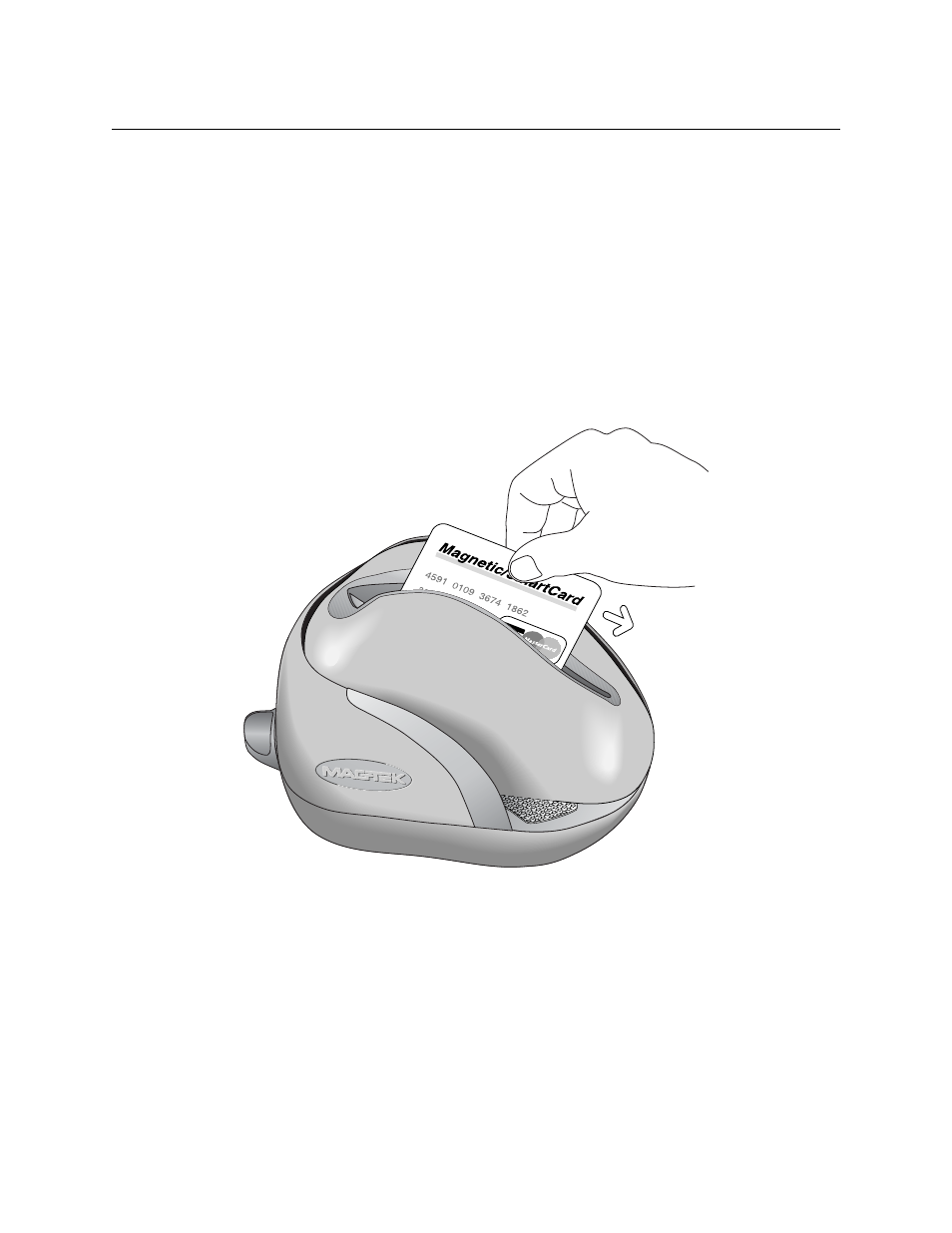

Figure 3-2. Optional Magnetic Swipe Reader Orientation
