SECTION 2. INSTALLATION
The reader is supplied with or without a bezel. The user provides all mounting hardware such as
brackets, screws, or anything else required to affix the Reader to the pump.
MECHANICAL INSTALLATION

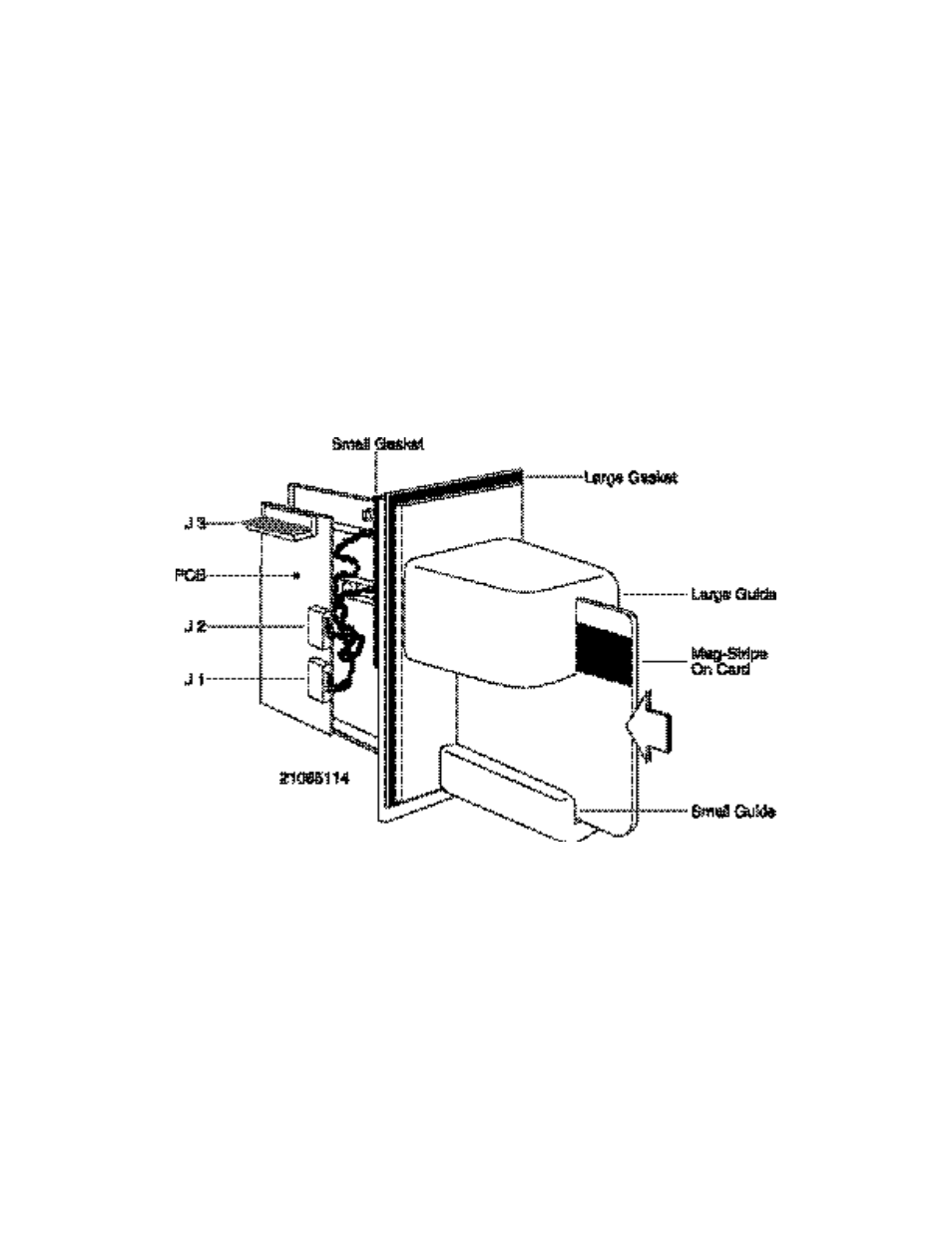

Figure 2-1 shows the 9-pin header, head connectors, and the card orientation of Reader P/N
21065114.
The standard orientation of the Reader is with the larger guide up as shown in the illustration.
Although any orientation may be used, this position offers the best protection for the heads from
moisture, dust, or foreign particles.
Figure 2-1. Mounting Guides and Card Insertion
The recommended method of installation is to position the Reader between two brackets from
the inside of a mounting panel, as indicated in Figure 2-2. The large gasket on the bezel presses
against the bracket to prevent moisture from entering. Another bracket is positioned and secured
over the bezel to hold the Reader firmly against the first bracket.
