P-Series Port Powered Insertion Reader
8

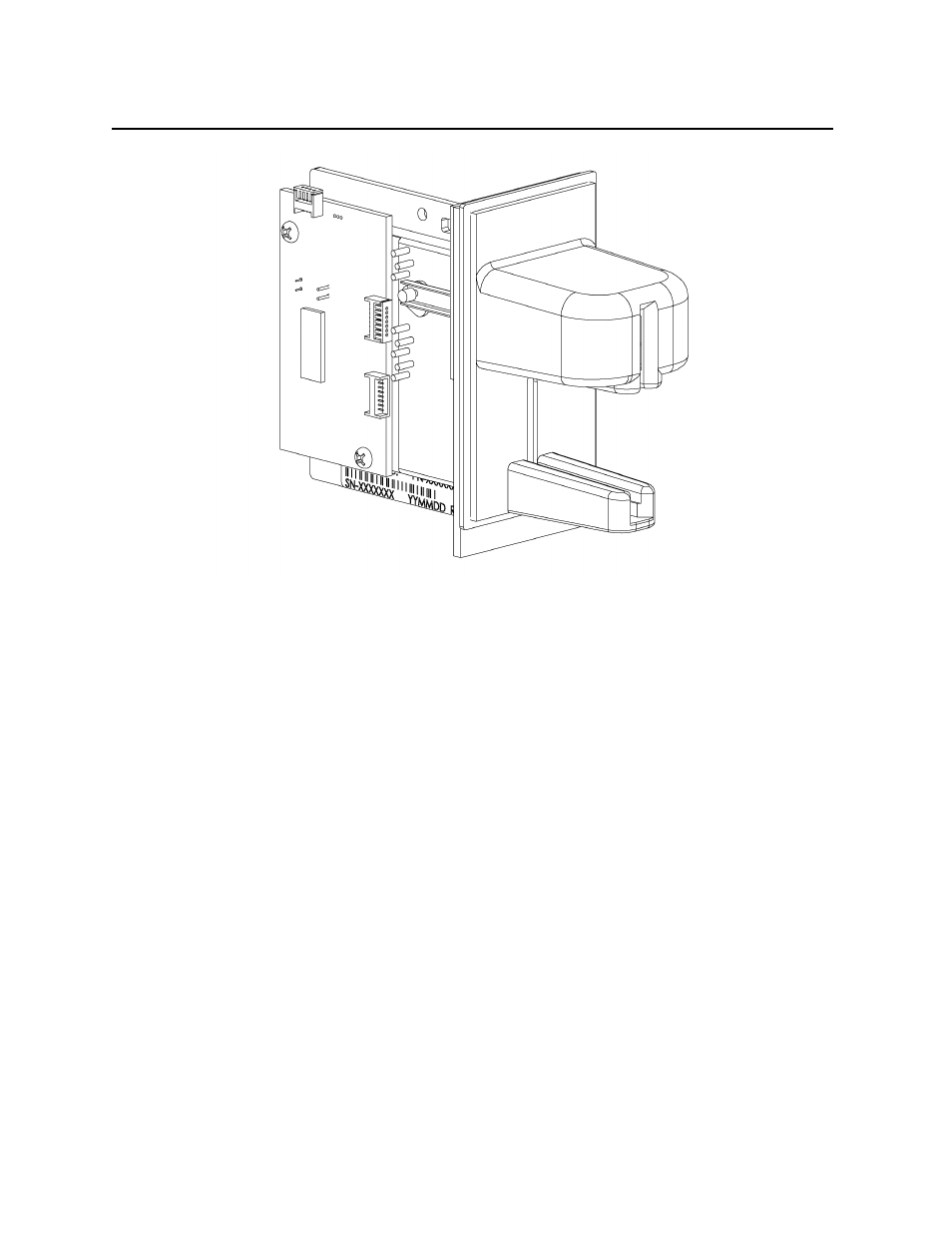

Figure 2-3. MagTek Bezel Mounting Position
OPTIONAL MOUNTING BRACKET
In applications where moisture-intrusion is a concern, it is recommended that the reader be
mounted with a 4
o
- 5
o
downward angle with respect to the horizontal plane. This will allow
gravity to drain away any excess moisture that may have entered into the Card Reader slot.
For more information about the mounting bracket kit (21064519) that can be used to tip the
reader forward, contact your MagTek salesperson.
