INSTALLATION
Installation of the cooktop:
• Prepare the work top cut-out as shown in the diagram (see fig. 5).
• Remember to maintain the minimum safety distances to combustible surfaces below the
cooktop of 130 mm.
• Fix the tape (included) to the cooktop edge at the bottom side of the appliance.
• Connect the appliance to gas and electrical mains as per the operating manual.
• Remove any dust from the work top, remove the protective backing of the tape, insert
the cooktop into the cut-out, and press firmly downwards.
• Set the fixing brackets (see fig. 4) perpendicular to the cooktop edge, fix firmly.
• Test the correct operation of the installed cooktop. In particular, check the correct operation
of the sealing protection and the ignition system.

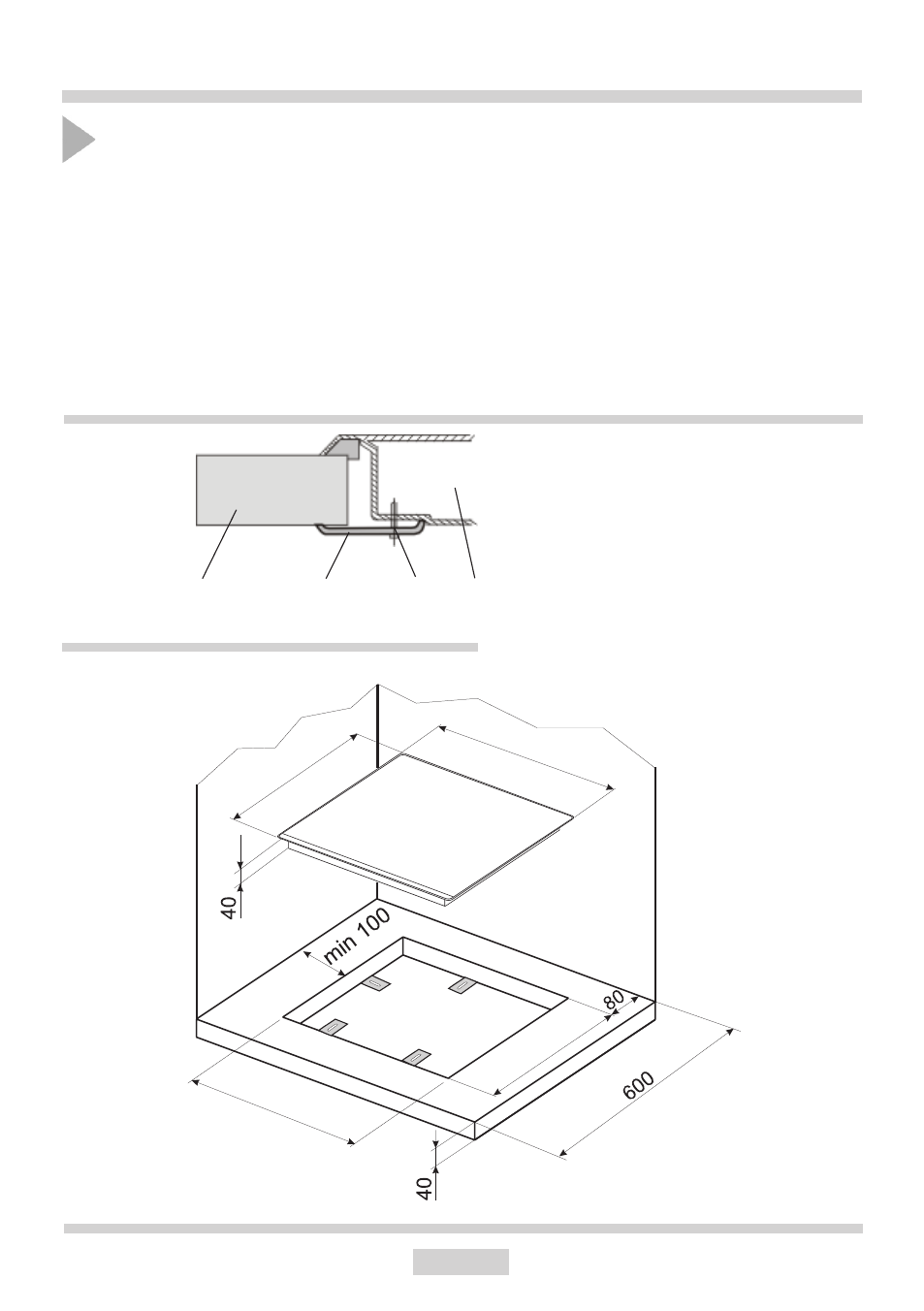

Fixing the brackets to the work top
fig. 4
1. Work top
2. 4 screws
3. 4 fixing brackets
4. Installed appliance
Installation in kitchen furniture
Fig. 5
500
580
560
480
