AMICA ZZM616W EN - Manual (Page 21)

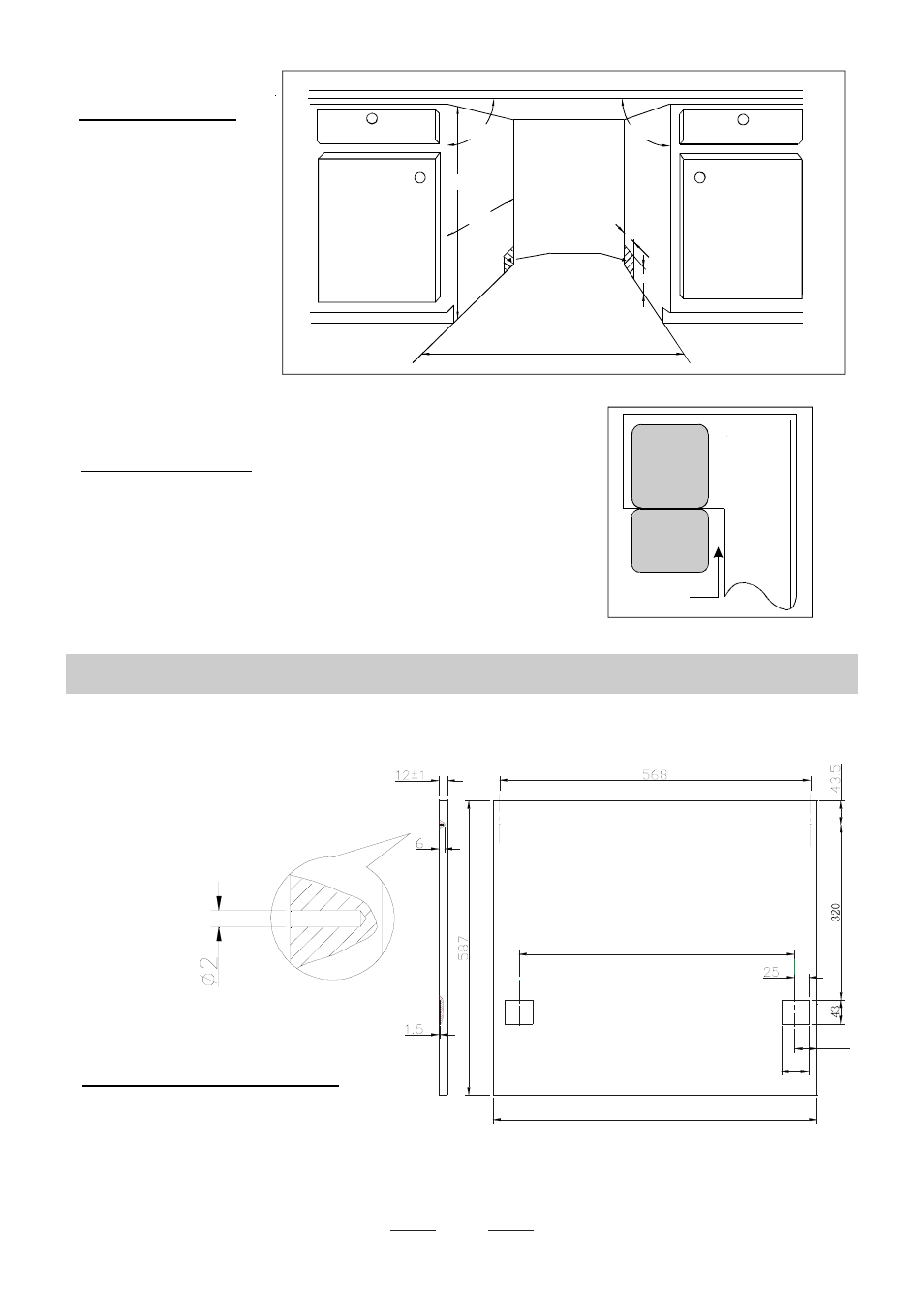

Minimum space when
the door is opened
【Figure2】
Cabinet dimensions
【Figure1】
Cabinet
Dishwasher
Door of
dishwasher
Minimum space of 50mm
1
The aesthetic wooden panel could be processed according to the Figure 3.
●
Aesthetic panel's dimensions and installation
Less than 5mm
between the top
of dishwasher and
cabinet and the
outer door aligned
to cabinet.
90 ° 90 °
600 mm
820mm
100
580mm
80
Space between cabinet
bottom and floor
Electrical, drain and
water supply line
entrances
19
504
592
50
40.5
The aesthetic panel should
be processed in accordance
with the illustrated dimensions
【Figure3】
The length of the panel should be within
the range of 506.5--587mm, not more
than 587mm.
(Unit: mm)
