Chapter 2. Installation
13
Rack Mounting—Split

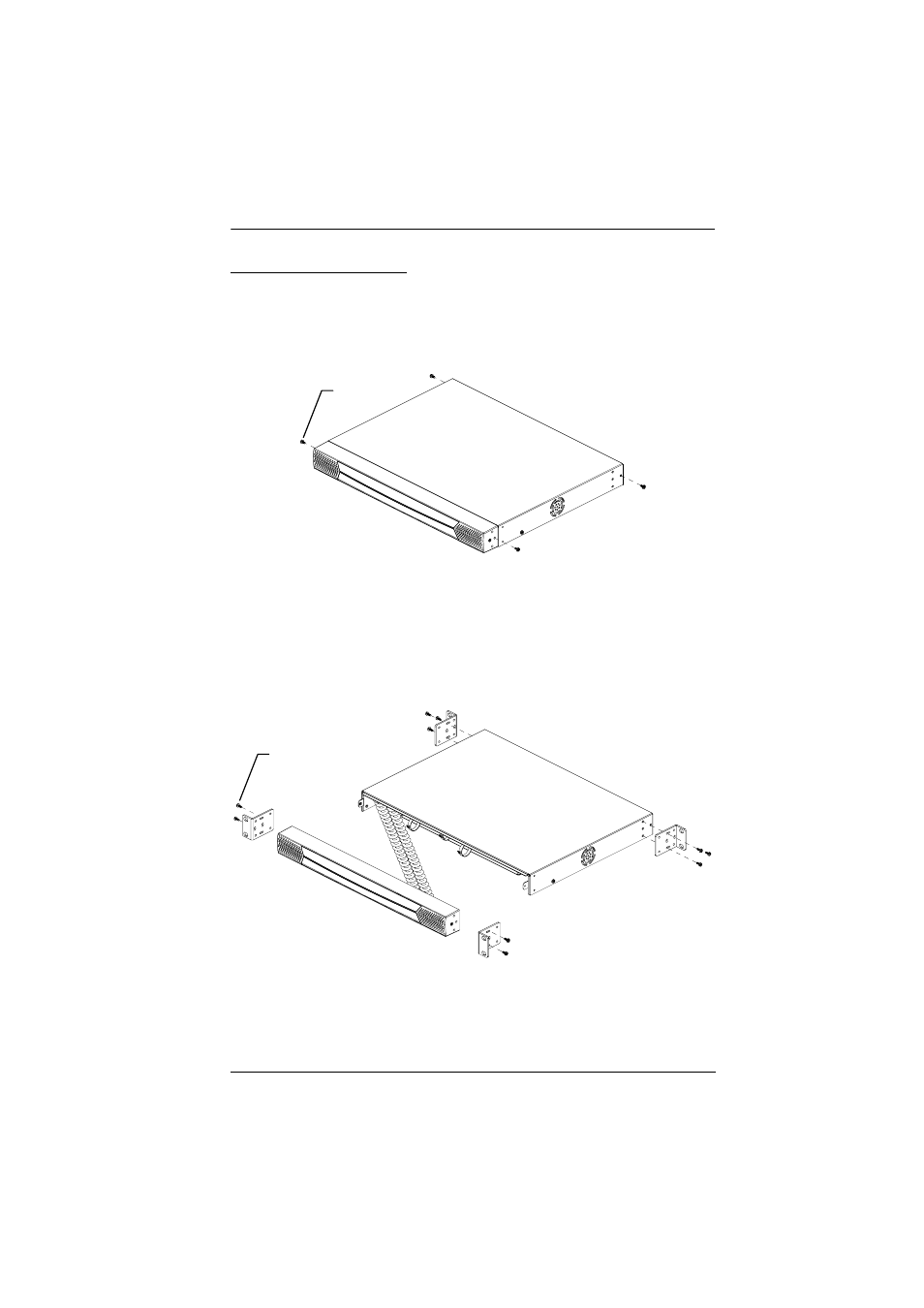

1. Remove the four screws from the sides of the unit, two at the front and two
at the rear. The two screws at the front secure the detachable front panel to
the chassis.
2. Detach the front panel from the chassis; however, leave the cables
attached. Use the M3 x 8 Phillips head hex screws supplied with the rack
mounting kit to screw the rack mounting brackets into the sides of the
front panel and chassis.
Phillips head hex
M3 x 6
Phillips head hex
M3 x 8
