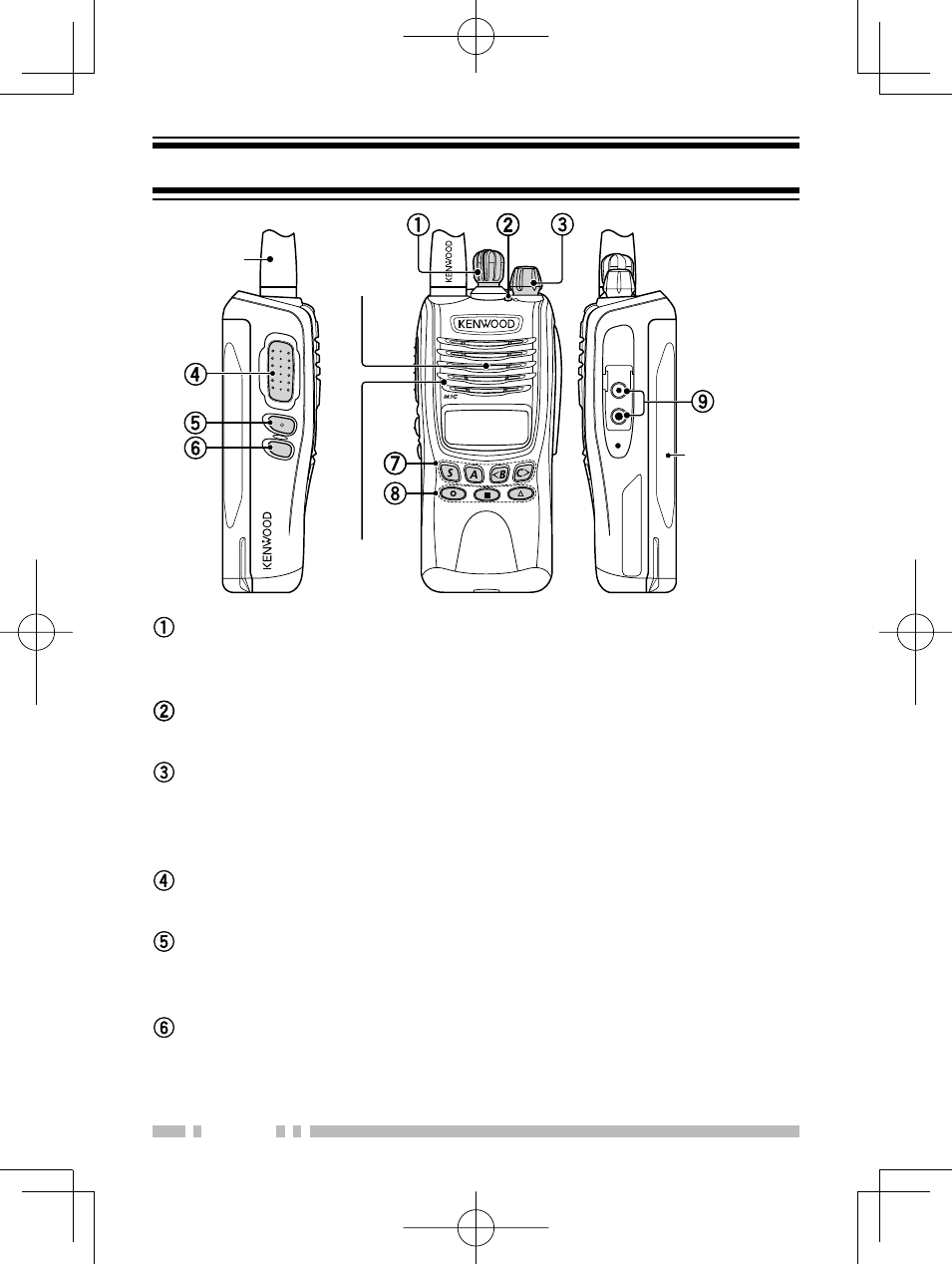

ORIENTATION
Battery pack
Selector
Rotate to change the operating zone or channel.
The default setting is [Zone Up/ Down].
LED indicator
Refer to the table on page 7 for the LED indicator status.
Power switch/ Volume control
Turn clockwise to switch the transceiver ON. To switch the
transceiver OFF, turn counterclockwise until a click sounds.
Rotate to adjust the volume level.
PTT (Push to Talk) switch
Press and hold, then speak into the microphone to transmit.
Side 1 key
Press to activate its programmable function.
The default setting is [Squelch Off Momentary].
Side 2 key
Press to activate its programmable function.
The default setting is [Lamp].
Antenna
Speaker
Microphone
