APRS-10

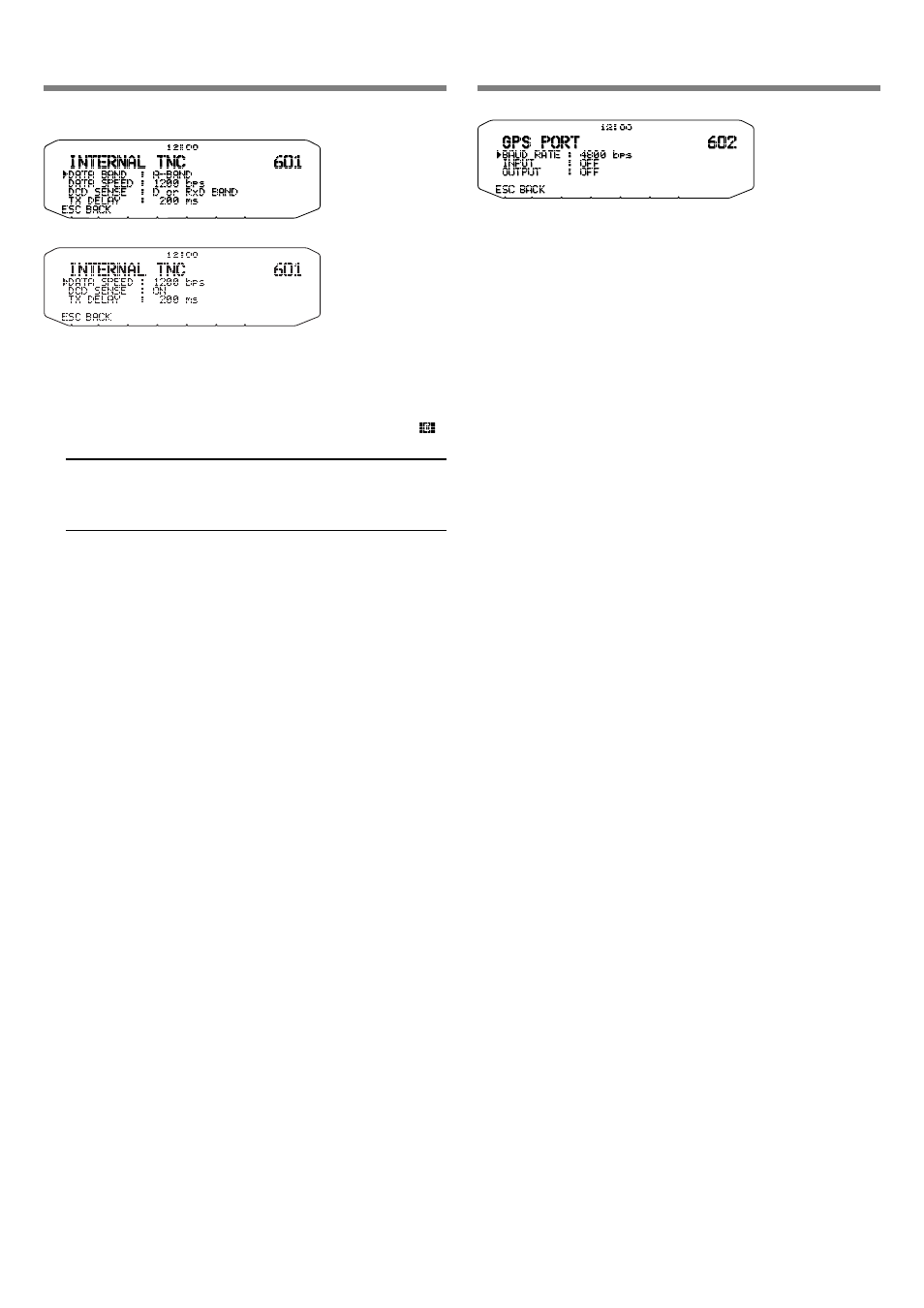

SETTING INTERNAL TNC
Enter Menu mode and access Menu 601.
■ Data Band
On this transceiver you can select data band for APRS
mode independent of the selection for Packet mode.
Select band A or B as the data band for receiving or
transmitting APRS packets. The default is band A. “ ”
indicates the current data band.
Note: In Menu 601, the selection switches among A-BAND, B-
BAND, TX:A-BAND RX:B-BAND, and RX:A-BAND TX:B-BAND.
Select TX:A-BAND RX:B-BAND or RX:A-BAND TX:B-BAND if
APRS networks which use two separate frequencies become
available in the future.
■ Packet Transfer Rate
The default APRS packet transfer rate set on the built-
in TNC is 1200 bps which is the standard among the
current APRS networks. If APRS networks which use
9600 bps transfer rate become available in the future,
select “9600 bps”
■ DCD Sense
You can also select the method for inhibiting the built-in
TNC from transmitting.
[D or RxD BAND]: When the data band is no
longer busy (as per the steps below), the packet is
transmitted.
q Press [PTT] to enter transmit mode.
w The data band is busy.
[BOTH BAND]: When the bands are no longer busy
(as per the steps below), the packet is transmitted.
q Press [PTT] to enter transmit mode.
w The data band is busy.
e The other band is busy.
[IGNORE DCD]: Transmission from the built-in TNC is
not inhibited. The packet is transmitted immediately.
■ DCD Sense
You can also select the method for inhibiting the built-in
TNC from transmitting. The default is “ON”.
[ON]: The TNC does not transmit when signals are
present on the data terminal.
[IGNORE DCD]: DCD is ignored.
■ TX delay
This function allows you to set a transmission delay
time between transmitting the APRS data and
transmitting a flag code prior to the APRS data. When
the other station has activated their Save Mode, set a
longer delay time.
SETTING GPS PORT
Enter Menu mode and access Menu 602
■ Baud Rate
Set the communication speed of the external GPS or
other equipment that is connected to the GPS terminal.
The speed is set to 4800 bps (NMEA)/ 9600 bps (IPS
format: SONY) when a GPS receiver is connected.
• It does not correspond to the Gamin-TXT format.
■ Input Type
[OFF]: You can perform APRS communications
without the use of a GPS receiver or Weather Station.
Set your station position data manually through Menu
No. 605 (MY POSITION).
[GPS]: You can perform APRS communications using
a GPS receiver. Verify your station position data by
pressing the [POS] key.
[WEATHER (Davis)]: You can perform APRS
communications using a Davis Weather Station. Verify
your station weather data by pressing the [WXi] key.
• Operation verification model (as of April 2011)
Vantage PRO2 TM
• Please use the Data Logger bundled with “WeatherLink ®
for Vantage Pro2 TM , Windows, Serial Port” (Davis
Part No.06510SER) or “WeatherLink ® for APRS, with
Streaming Data Logger” (Davis Part No.06540) with
Vantage PRO2
TM .
• When using the “WeatherLink ® for APRS, with Streaming
Data Logger” (Davis Part No.06540) Data Logger, set
the BAUD RATE (Menu No.602) to 9600bps for stable
operation.
[WEATHER (PeetBros. )]: You can perform APRS
communications using a PeetBros Weather Station.
Verify your station weather data by pressing the [WXi]
key.
• Operation verification model (as of April 2011)
ULTIMETER ® 2100 (Packet mode)
■ Output Type
[WAYPOINT]: Waypoint information is forwarded. The
callsign and positioning data received from another
station can be displayed as the waypoint data through
the device connected to your GPS receiver or on the
GPS receiver display.
[DGPS]: Differential GPS information is forwarded.
The differential information which is received in the
beacon from a reference station (amateur radio
station), is sent to the GPS receiver.
