Preparation – Kenwood NX-420 User Manual

Page 10

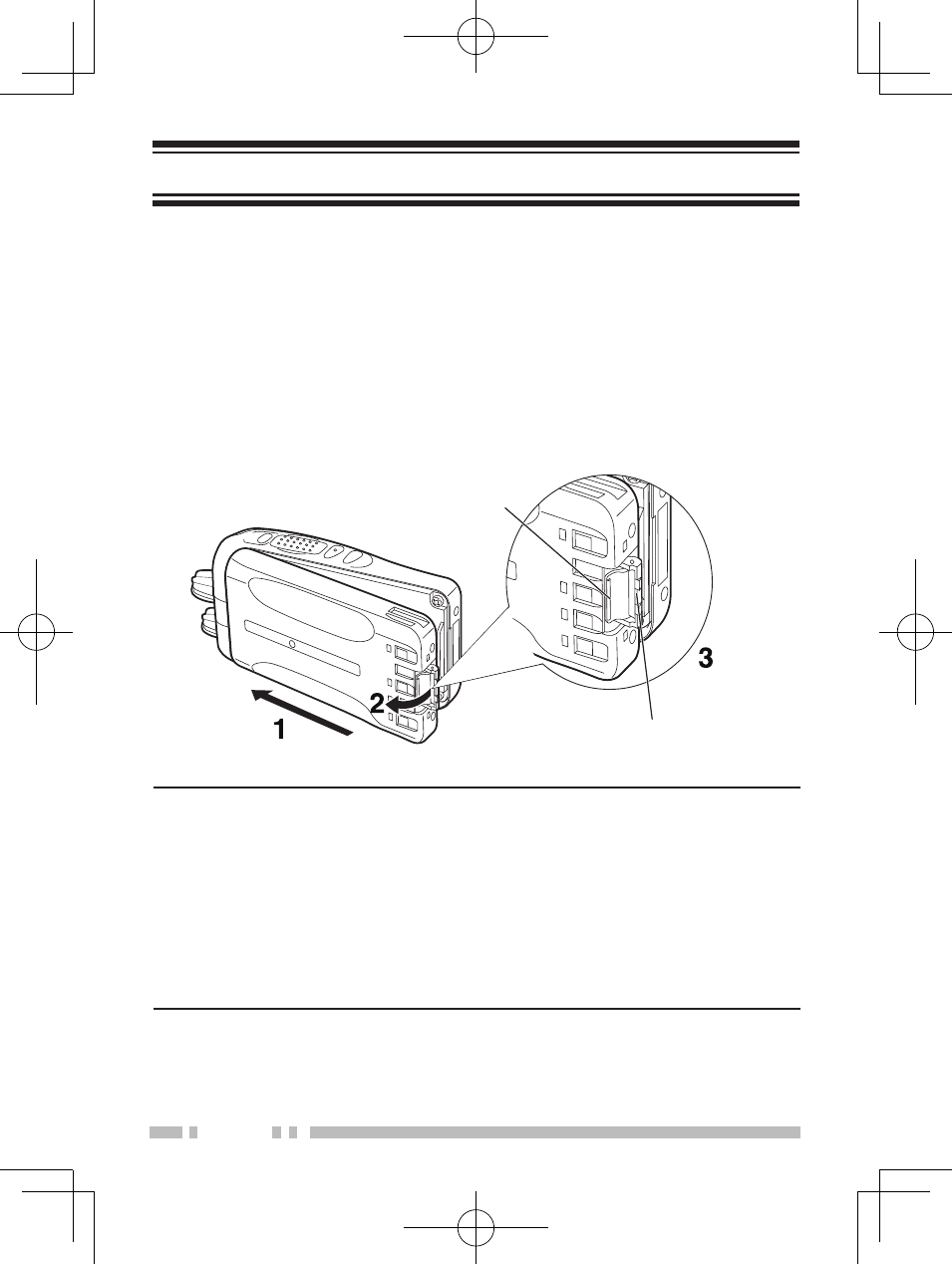

1 Match the guides of the battery pack with the grooves on

the upper rear of the transceiver, then firmly press the

battery pack in place.

2 Lock the safety catch to prevent accidentally releasing the

battery pack.

3 To remove the battery pack, lift the safety catch, press the

release latch, then pull the battery pack away from the

transceiver.

Note:
◆

For battery pack charging procedures and usage, refer to the

battery charger Instruction Manual.

◆

The battery pack is not charged at the factory; charge it before

use.

◆

Install the battery pack after cleaning the battery pack contacts

and the transceiver terminals.

◆

Before charging a battery pack that is attached to the

transceiver, ensure that the safety catch is firmly closed.

PrEPArATION

INSTAllING/ rEMOvING THE (OPTIONAl) BATTEry PACK

Safety catch

Release latch
