Kestrel 4500 Horus (Ballistics) - Manual (Page 2)

3
MV
BC
BW
BD
ZR
BH
RT
RTd
Click
True Drop
Delete this gun
GUN Laru308
2550f p s
0.470
175 g r
0.308in
100m
2.50in
11.00in
Right
1/mil
Active
TR
DoF
Ide
g
Icos
TS
TD
WD
WS1
WS2
TARGET
Yes
1000
000º
0˚
1.000º
0mph
L-R
12oc
5mph
10mph
Press and hold for 2 seconds will power down the Kestrel
reguardless of current screen.
Press twice in rapid succession to instantly change
between Weather mode and Horus mode.
Any changes in information are automatically saved upon
exiting the current screen. There are 3 exceptions to this
rule where an “accept”screen appears upon exiting: the
Target Range estimator, the Target Speed estimator, and
the Drop Truing screen.
GETTING STARTED WITH KESTREL
ATRAG BALLISTICS
The three main data input groups are gun, target and
environment. The aiming solutions for Elevation, Windage,
and Coriolis are displayed on the Main Horus screen.
1. Gun Information 2. Target
A box indicates amount of data shown on display.
Data below box indicates additional information
available by pressing
BASIC NAVIGATION

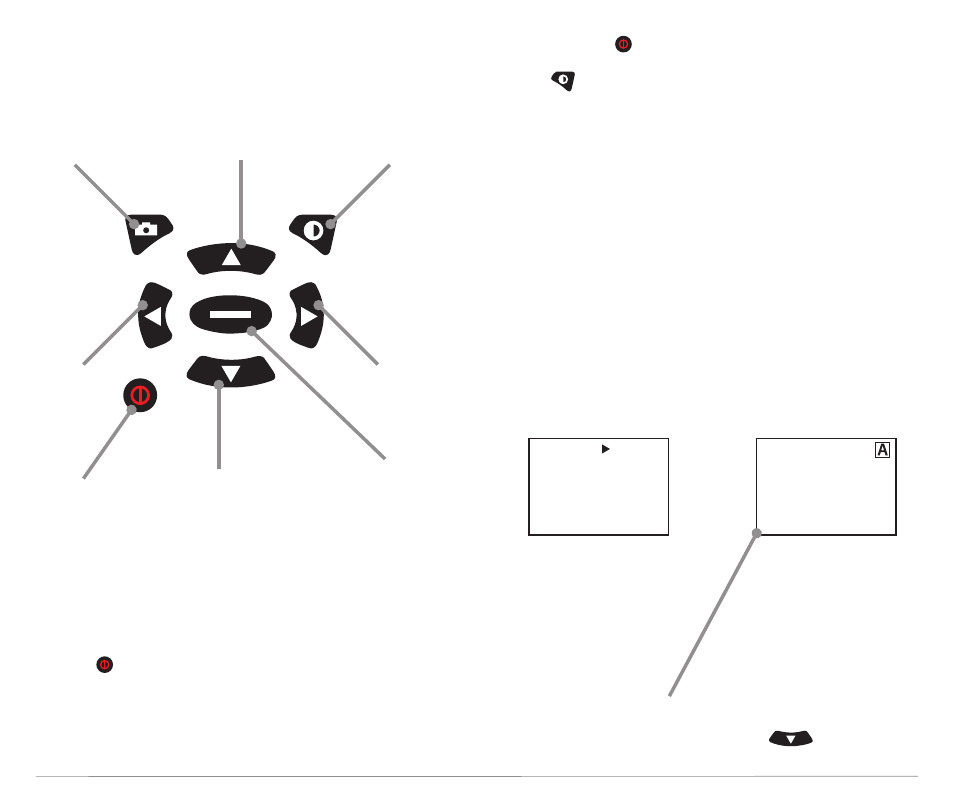

The Kestrel has seven navigation keys:
Up-Arrow
Down-Arrow
Left-Arrow Right-Arrow
Center Key
Capture
Power On/
Escape Key
Backlight
QUICK TIPS:
Compass must be calibrated in order for directional
features to work in Horus mode, and it can only be
calibrated in Weather mode.
Pressing will allow you to exit out of a particular screen.
When a ballistics parameter is underlined, this means that
the value is unable to be changed manually on the current
screen either because it is a calculated value or one
determined by the sensors.
