AquaStar 32" Channel Drain Pinhole Anti-Entrapment Suction Outlet Cover and Three-Port Manufactured Sump for Vinyl/Fiberglass - Manual (Page 19)

877.768.2717 fax 877.276.POOL Outside the U.S.: 1.805.620.5060 fax +1.949.336.1940 info @ aquastarpoolproducts.com www.aquastarpoolproducts.com 19
32CDPHxxx
33 7/8"
5 1/8"
10" 10"
5 1/16"
1/2"
3/8"
2 1/2" SP. X 2" SOC. X 2" NPT

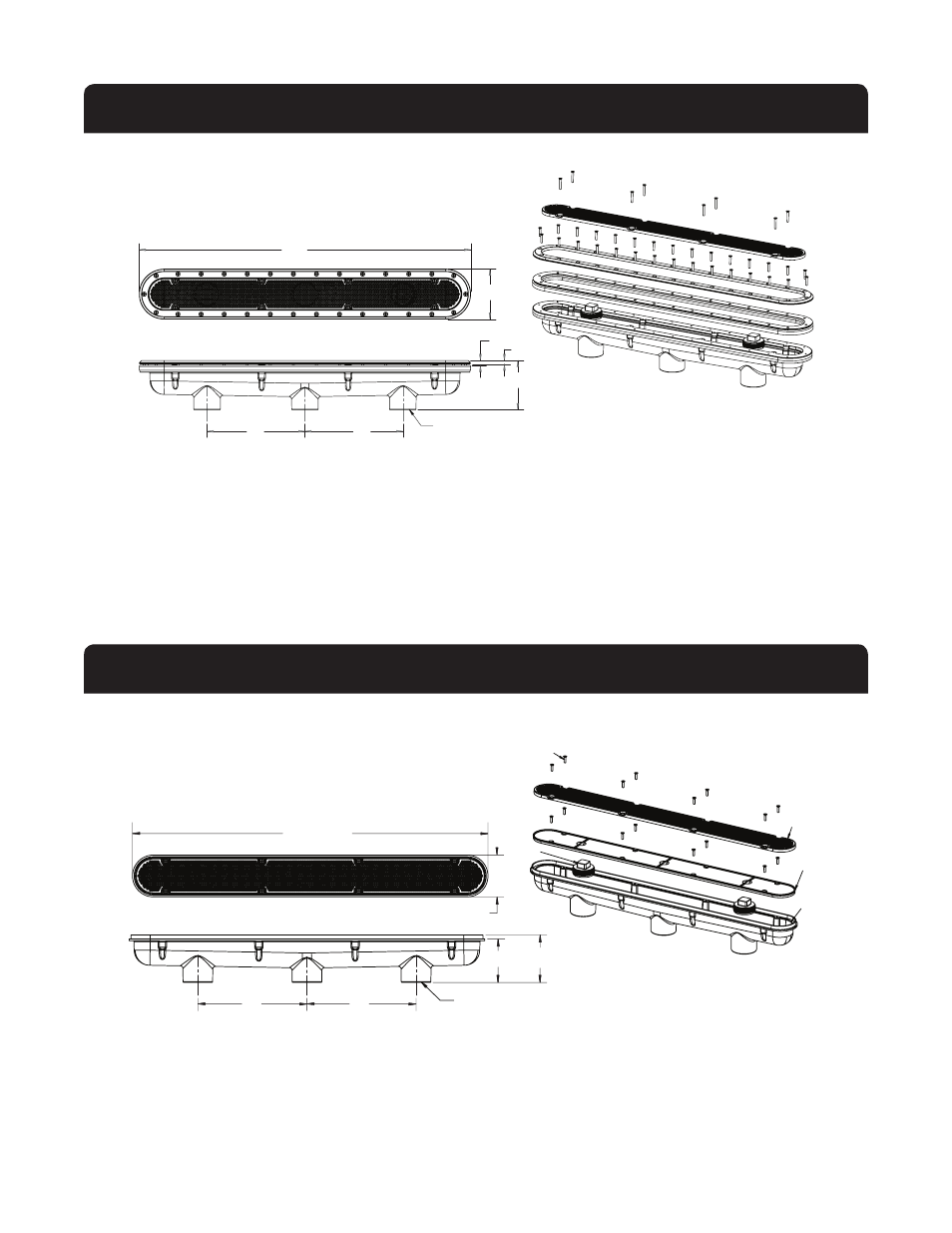

1. 32" channel drain anti-entrapment suction outlet "pinhole" cover
2. 32" 3 port manufactured vinyl/fiberglass sump bucket
3. 32" channel drain vinyl clamping gasket
4. 2" npt plug
5. #10 x 1-1/4" flat head phillips type-a screw, 316 ss
6. 32" channel drain vinyl clamping ring w/ gasket
7. #10 x 1" flat head phillips type-a screw, 316 ss
32CDPHVxxx/32CDPHTSxxx
32-9/16"
3-13/16"
10" 10"
4-3/8" 4"
2-1/2" Spc. x 2" Soc x 2" NPT
2
5
3
1
4
1. 32" 3 port manufactured sump
2. #10 x 3/4" flat head phillips type-a screw, 316 ss
3. 32" channel drain, plaster shield
4. 2" NPT plug
5. 32" channel drain anti-entrapment
suction outlet "pinhole" cover
