AquaStar 32" Channel Drain Pinhole Anti-Entrapment Suction Outlet Cover and Three-Port Manufactured Sump for Vinyl/Fiberglass - Manual (Page 14)

877.768.2717 fax 877.276.POOL Outside the U.S.: 1.805.620.5060 fax +1.949.336.1940 14 info @ aquastarpoolproducts.com www.aquastarpoolproducts.com
23/32
32-19/32
3-27/32
4-11/32
10 10
1/2

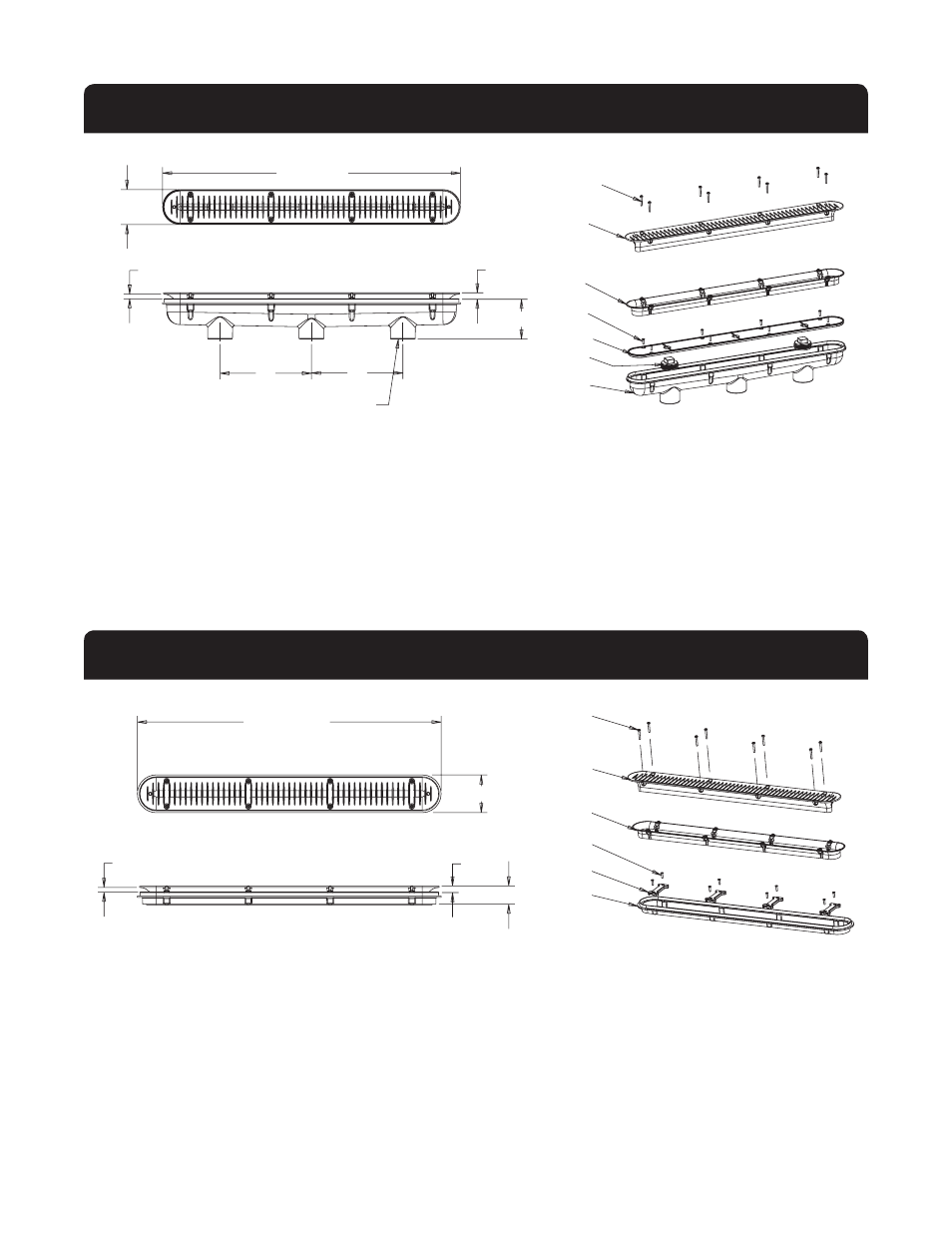

1. 32" three-port manufactured sump bucket
2. 32" leaf trap insert
3. 32" leaf trap cover
4. 2" NPT plug, qty 2
5. 32" channel drain, plaster shield
6. #10 x 3/4" pan head phillips hi-lo screw, 316 ss, qty 8
7. #10 x 3/4" flat head phillips type-a screw, 316 ss, qty 8
1
2
3
6
4
5
7
2-1/2" spigot x 2" socket x 2" NPT
32-13/16
4-1/16
1/2 23/32
1-31/32
1. 32" channel drain, no sump, frame
2. 32" leaf trap insert
3. 32" leaf trap cover
4. 32" channel drain, frame support “dog bones”, qty 4
5. #10 x 3/4" flat head phillips type-a screw, 316 ss, qty 8
6. #10 x 3/4" pan head phillips hi-lo screw, 316 ss, qty 8
2
3
6
1
4
5
32CDLTxxx
32CDLTFRxxx
