Dake Model HV 200 - Hydraulic User Manual
Page 5

Dake Tube Bender manual 08212009
5

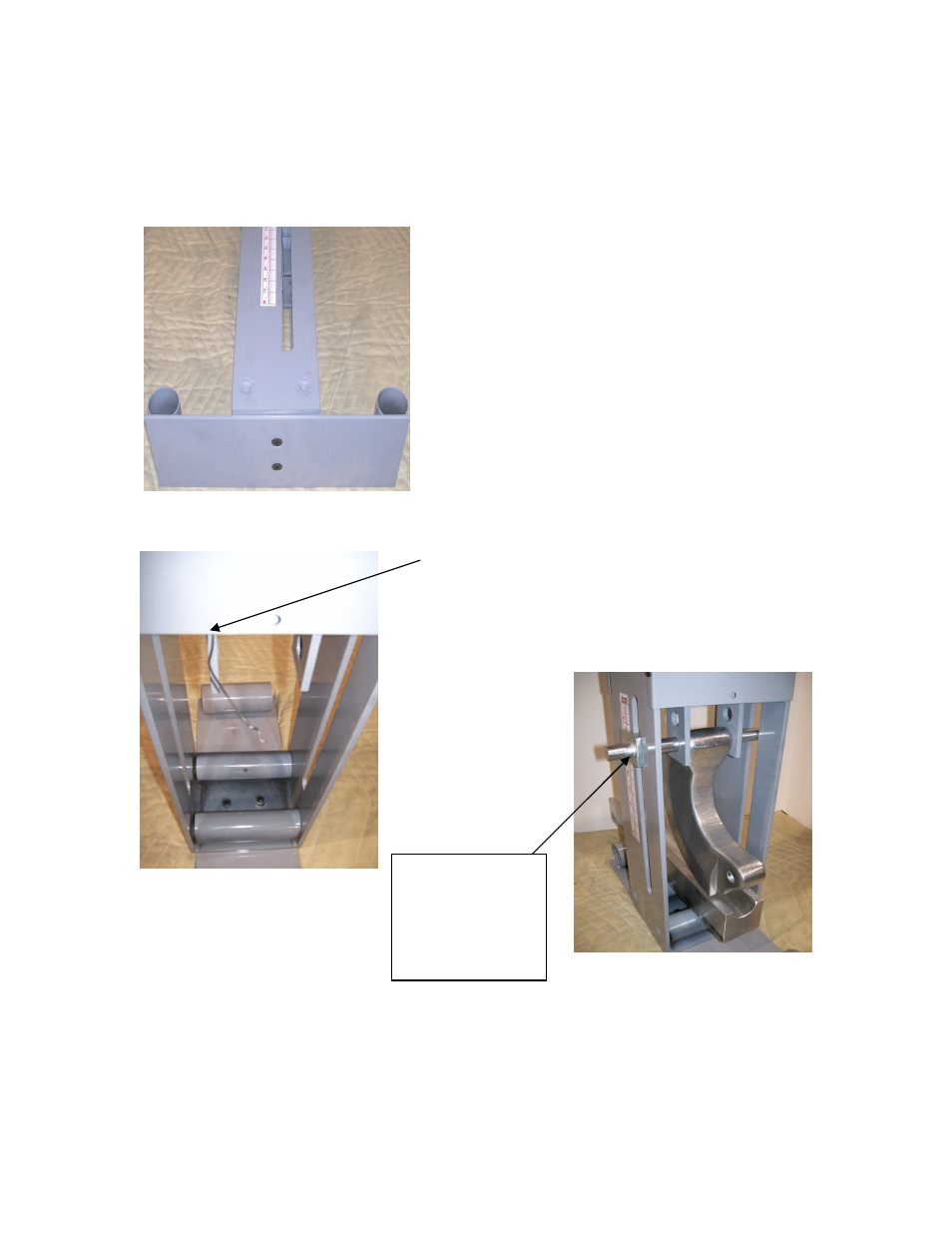

Assembly of your Dake Tube Bender
Lay the tube bender on it’s side (as pictured below) take the foot and line up the holes to the bottom of the
bender frame. Make sure the tubes on the foot face up towards the frame (it should look like the picture
below when the foot is installed). Install the bolt and nut so that the nut is up in the frame. Snug the bolts
down so that there tight. Do not over tighten the bolts!!!
Pick up the bender and set it on it’s foot (as pictured below).
There is a wire holding the ram plate in place for shipping.
you will need wire cutters or pliers to remove it. It does not
stick out like shown in the picture. You will need to look
under the cover to see it.
Take your die and die pin and install it
as shown above. Be sure the pin is in all
the way.
This shoulder
should be against
the frame when
completely
installed.
