ZIP 30 - MUL
ZIP 30 - MUL
ZIP 30 - MUL
ZIP 30 - MUL
ZIP 30 - MULTI MODE
TI MODE
TI MODE
TI MODE
TI MODE

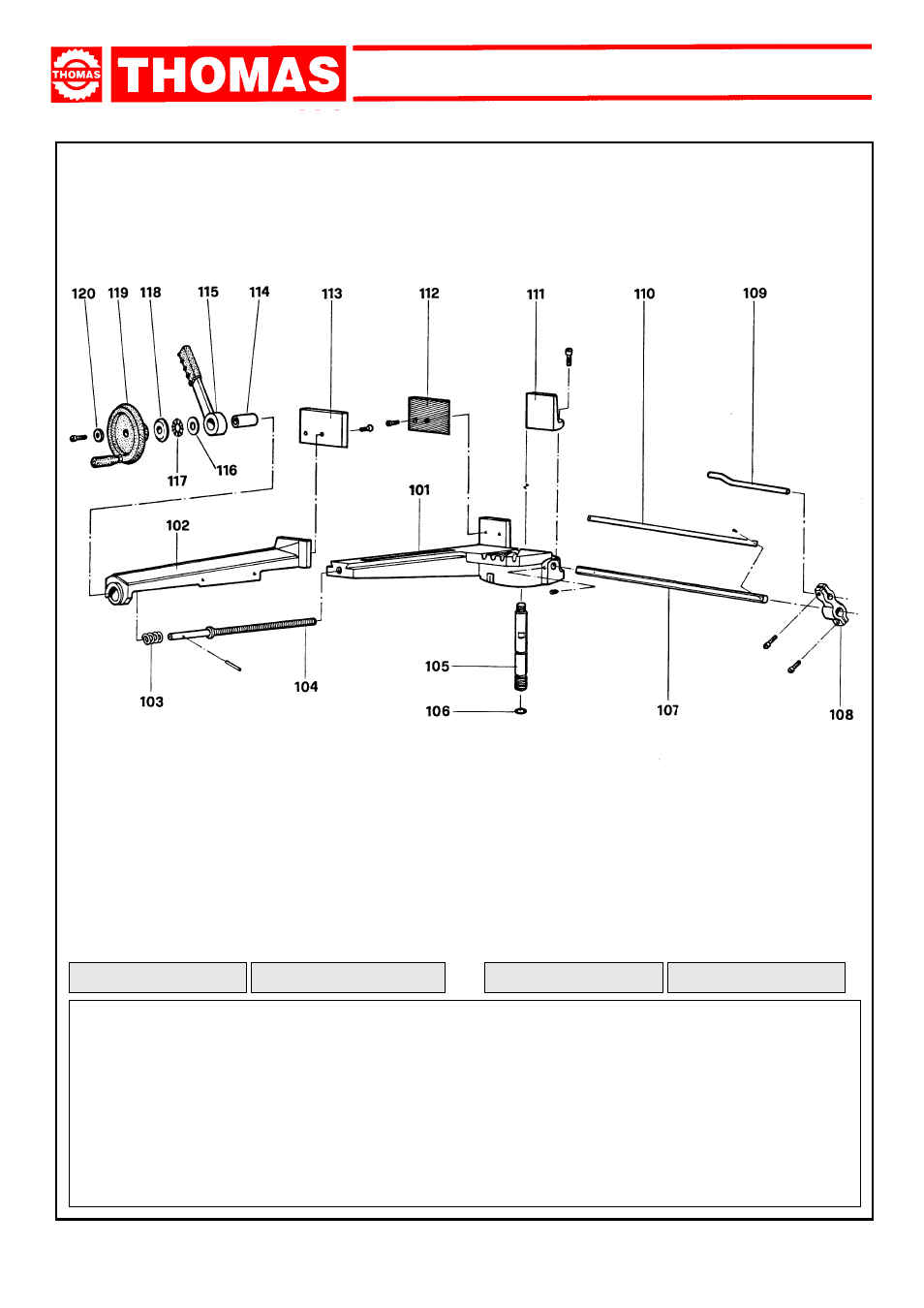

LINEAR VICE ASSEMBLY
REFERENCE N°
DESCRIPTION
101
Linear countervice
102
Linear vice
103
Rapid locking spring
104
Straight vice screw
105
Saw frame arm rotation pin
106
O-Ring 3081
107
Bar-stop rod
108
Bar-stop
109
Bar-stop push rod
110
Millimetre ruller
REFERENCE N°
DESCRIPTION
111
No-burr jaw
112
Counter vice jaw
113
Vice jaw
114
Vice lever bushing
115
Rapid locking vice lever
116
117
Bearing 51108
118
Rapid locking lever washer
119
Vice handwheel
120
Handwheel washer
