22
TRAD 260 - MUL TRAD 260 - MUL TRAD 260 - MUL TRAD 260 - MUL TRAD 260 - MULTI MODE TI MODE TI MODE TI MODE TI MODE
THOMAS
THOMAS

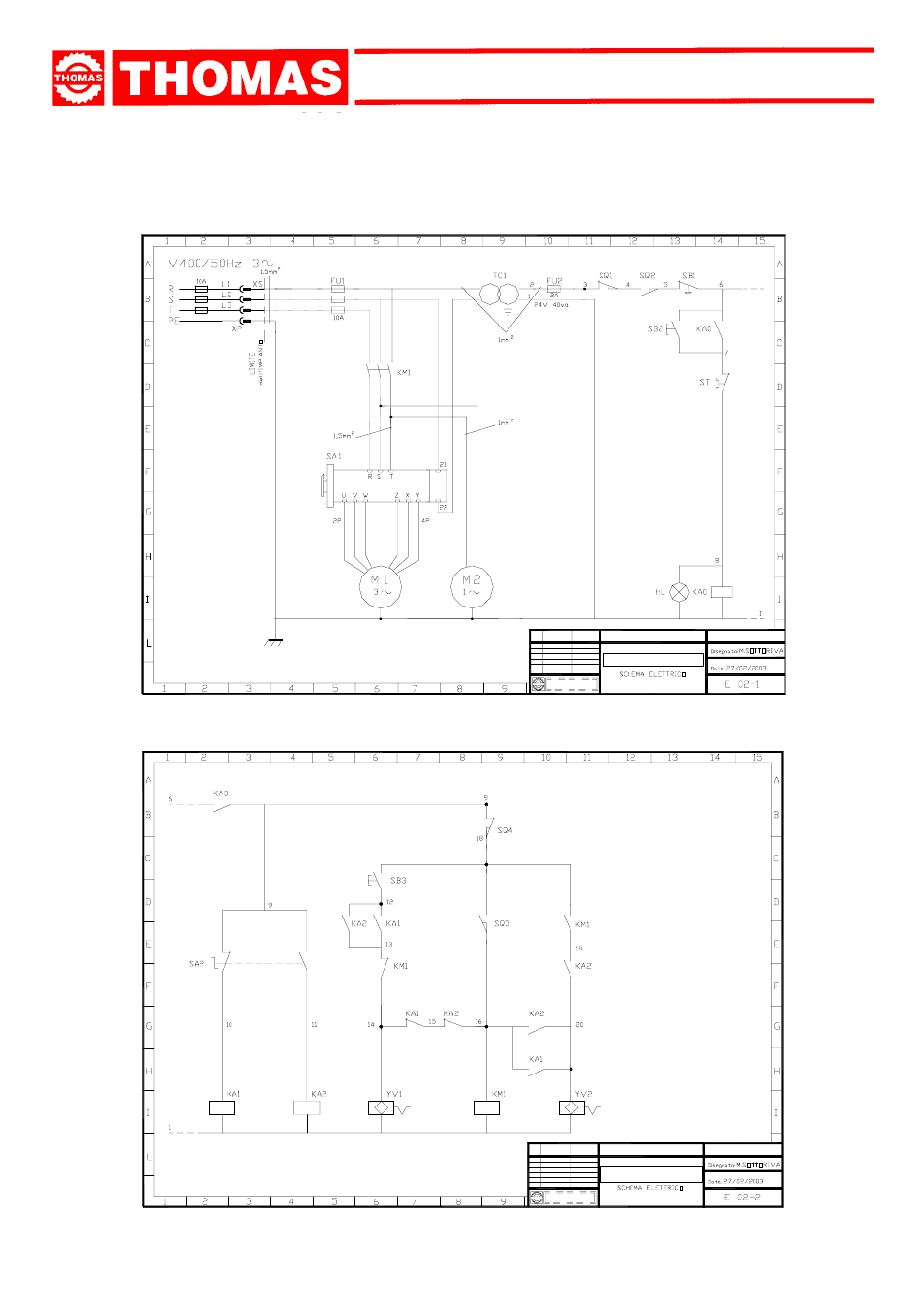

WIRING DIAGRAMS
11
CODE DESCRIPTION
M1 Band motor
M2 Pump
SA Speed switch
FU1 Fuse cartridge
FU2 Fuse cartridge
FU3 Fuse cartridge
TC1 Transformer
SQ1 Microswitch
SQ2 Microswitch
CODE DESCRIPTION
SB1 Mushroom button
SB2 Luminous button
HL Pilot lamp
KM Remote-control switch
ST1 Band motor temperature probe
11.1 Electric diagram
