MACHINE COMPONENTS
10.1 - List of spare parts

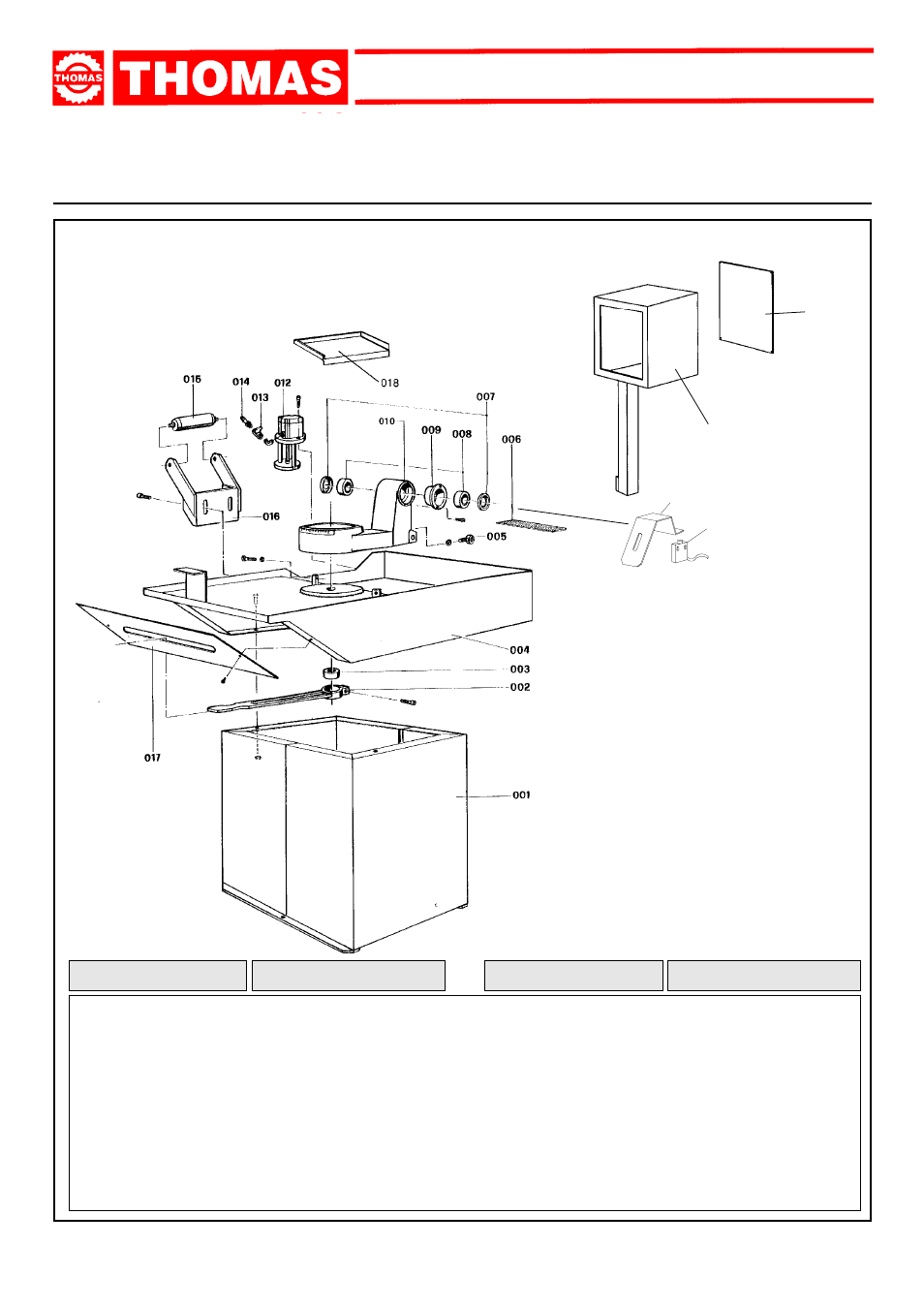

MACHINE BED
REFERENCE N° DESCRIPTION REFERENCE N° DESCRIPTION
001 Pedestal
002 Swivel arm locking lever
003 Swivel arm locking bush
004 Bedplate
005 Spring coupling tie-rod
006 Filter
007 Nilos ring 32006 XAV
008 Bearing 32006 X
009 Hinge cam bushing
010 Swivel arm
012 Coolant pump
013 Cooling liquid tap
014 Rubber ring coupling
015 Roller
016 Roller holding arm
017 Carter
018 Liquid holder
019 Electric box
020 Electric box cover
021
023
Microswitch support
024 Microswitch
23
24
20
19
