Dake Model TRAD 260 - Manual (Page 18)

18
TRAD 260 - MUL TRAD 260 - MUL TRAD 260 - MUL TRAD 260 - MUL TRAD 260 - MULTI MODE TI MODE TI MODE TI MODE TI MODE
REFERENCE N° DESCRIPTION
228 Saw frame movement lever
229 Blade guide rod guard
230 Transmission flywheel
231 Nilos ring 32006 XAV
232 Bearing 32006 X
233 Ring nut GUK 30
234 Flywheel guard fastening knob
235 Blade left-hand guard
236 Flywheel guard
237 Motor flywheel washer
238 Motor flywheel
239 Guard airtight microswitch
240 Motor flywheel guard
241 Blade right-hand guard
242 Blade guide head fixed rod
243 Blade additional protection
244 Blade guide fixed block
245 1/8" rubber holder coupling
246 Blade guide fixed pad
247 Blade guide adjustable pad
248 Short eccentric pin
249 Long eccentric pin
250 Bearing 608 2RS
251 Microswitch
252 Adjustment blade guide block

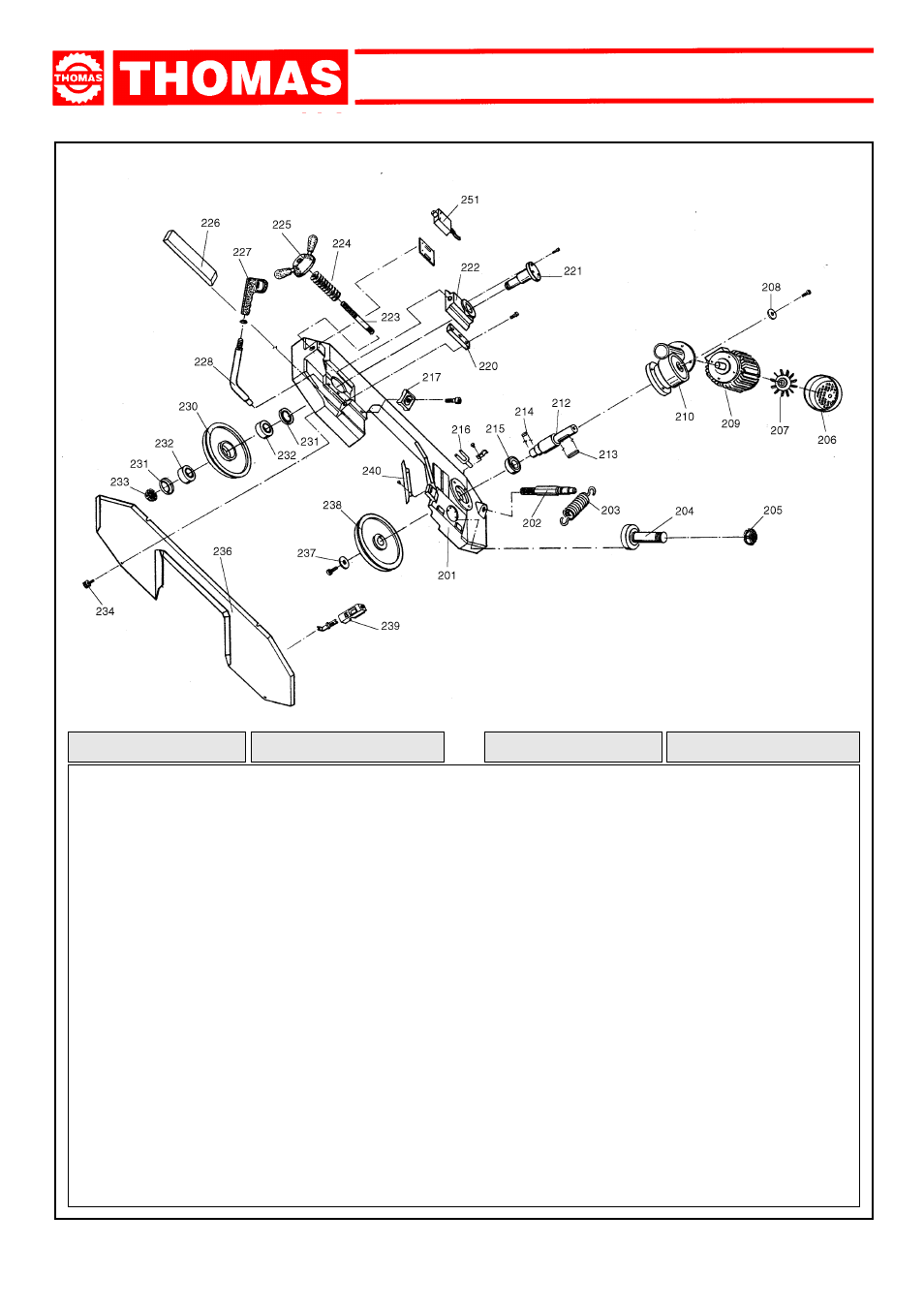

SAW FRAME UNIT
REFERENCE N° DESCRIPTION
201 Saw frame
202 Brake cylinder spring coupling rod
204 Hinge pin
205 Ring nut GUK 35
206 Motor cover
207 Motor fan
208 Washer
209 Motor M90 kW 0,75 - 1,1
210 Reduction unit R = 1 : 20
212 Motor/reduction unit flywheel
shaft
213 Key 8 x 7 x 50
214 Key 8 x 7 x 25
215 Radial bearing 6208-2RS
216 Two-way distributor
217 Mobile rod locking dowel
218
219
220
Band tightening slide gib
221 Transmission flywheel pin
222 Blade tightening slide
223 Blade tightening slide threaded
rod
224 Belleville washer
Ø 16,3/31,5x1,75
225 Blade tightening handwheel
226 Blade guide head movable rod
227 Handgrip
