- 7 -

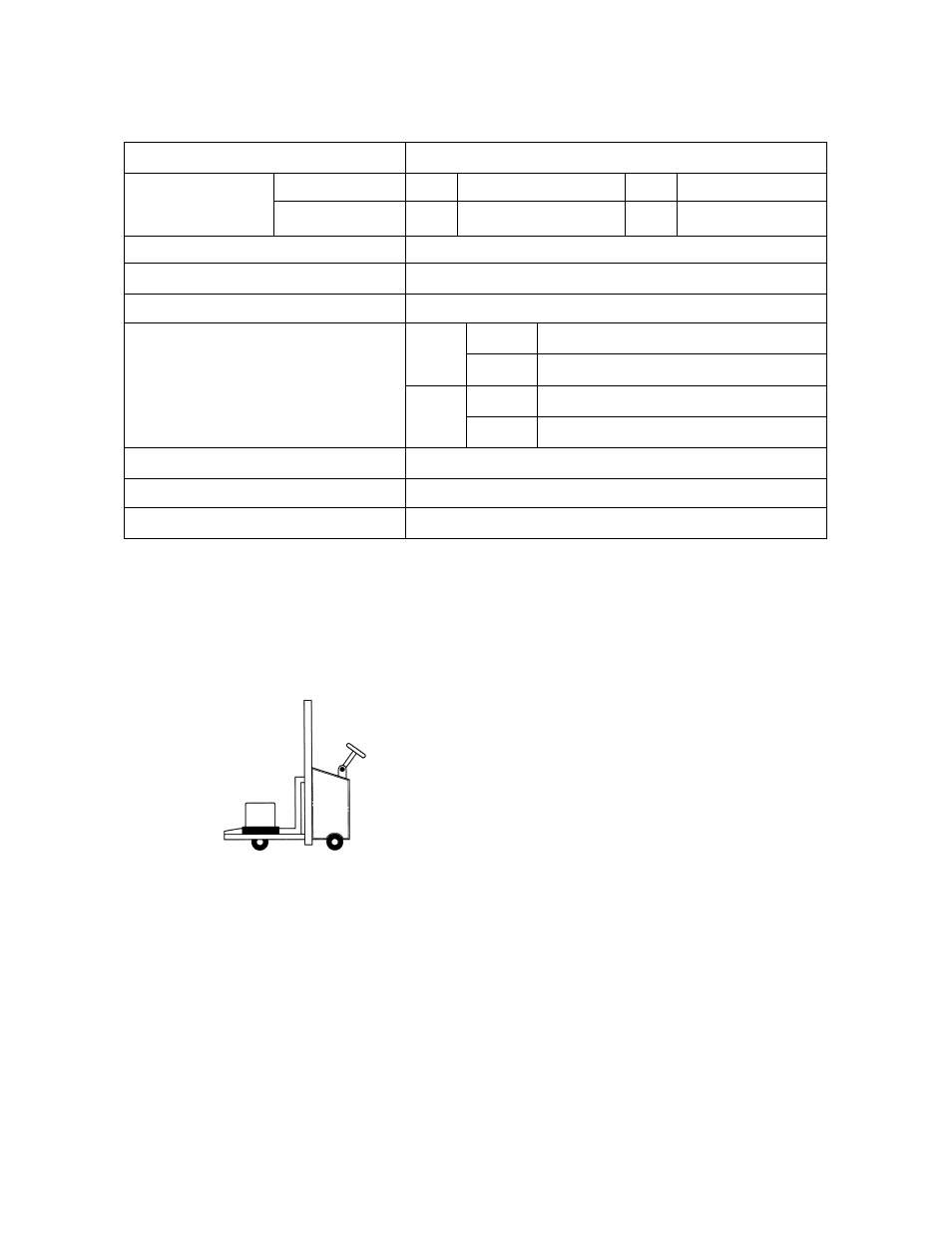

1.SPECIFICATION
MOTOR 3 O.75KW(1HP) 1 1.1KW(1-1/2HP)
912G.912GDR 60Hz 158 213 308 50Hz 130 177 255
Saw Blade Speed
(FPM)
912B.912DR 60Hz
98 164 246 328 50Hz 81 135 203 270
Blade Size 19.05x0.8x2655 ( Carbon Blade )
Dimension LxWxH (mm) 1325x630x1050(G) 1380x460x1050(B) 1350x650x1100(DR.GDR)
N.W / G.W (kgs) 155 / 180(G.DR.GDR) 140/165(B)
¡£¢¥¤¦¤¨§
230(9”)
0
©
¢¥¤¦¤¨§ 178x305(7”x12”)(G.B) 127x300(5”x12”)(DR.GDR)
¡£¢¥¤¦¤¨§
150(6”)(G.B) 165(6-1/2”)(DR.GDR)
Working Capacity
45
©
¢¥¤¦¤¨§ 127x150(5”x6”)(G.B) 100x200(4’x8’)(DR.GDR)
Packing Measurement (mm) LxWxH 1420x690x1100(G) 1420x530x1100(B) 1450x740x1140(DR.GDR)
Overall height (w/o stand) 1600mm(63")
Noise 80 dB MAX
2.TRANSPORTATION OF MACHINE:
Unpacking
1. Transportation to desired location before unpacking, please use lifting jack.(Fig. B)
2. Transportation after unpacking, please use heavy duty fiber belt to lift up the machine.
Fig. B
ALLWAYS KEEP PROPER FOOTING & BALANCE WHILE MOVING THIS MACHINE.
Installation:
This machine weighs 155 kg. It is recommended that the machine shall be transported, with help
of lifting jack.
Transportation Recommendation:
(1). Tighten all locks before operation.
(2).
ALWAYS Keep proper footing & balance while moving this 155kgs machine, and only use
heavy duty fiber belt to lift the machine as Fig. A
