Aussie 68R5A9SSS1 User Manual

Page 12

Step 14

Side Burner Igniter Wire Connection

The Side Burner Igniter Wire is pre-installed and connected to
the Ignition Box. Attach the wire to the Side Burner electrode by
sliding the wire connector onto the electrode terminal.

Underside view of

Side Table/Side Burner

Note:

Shown without Regulator

Hose for clarity.

Valve

5/32 x .31” Bolt

2 pc

Venturi

Windscreen

Side Burner

Bracket

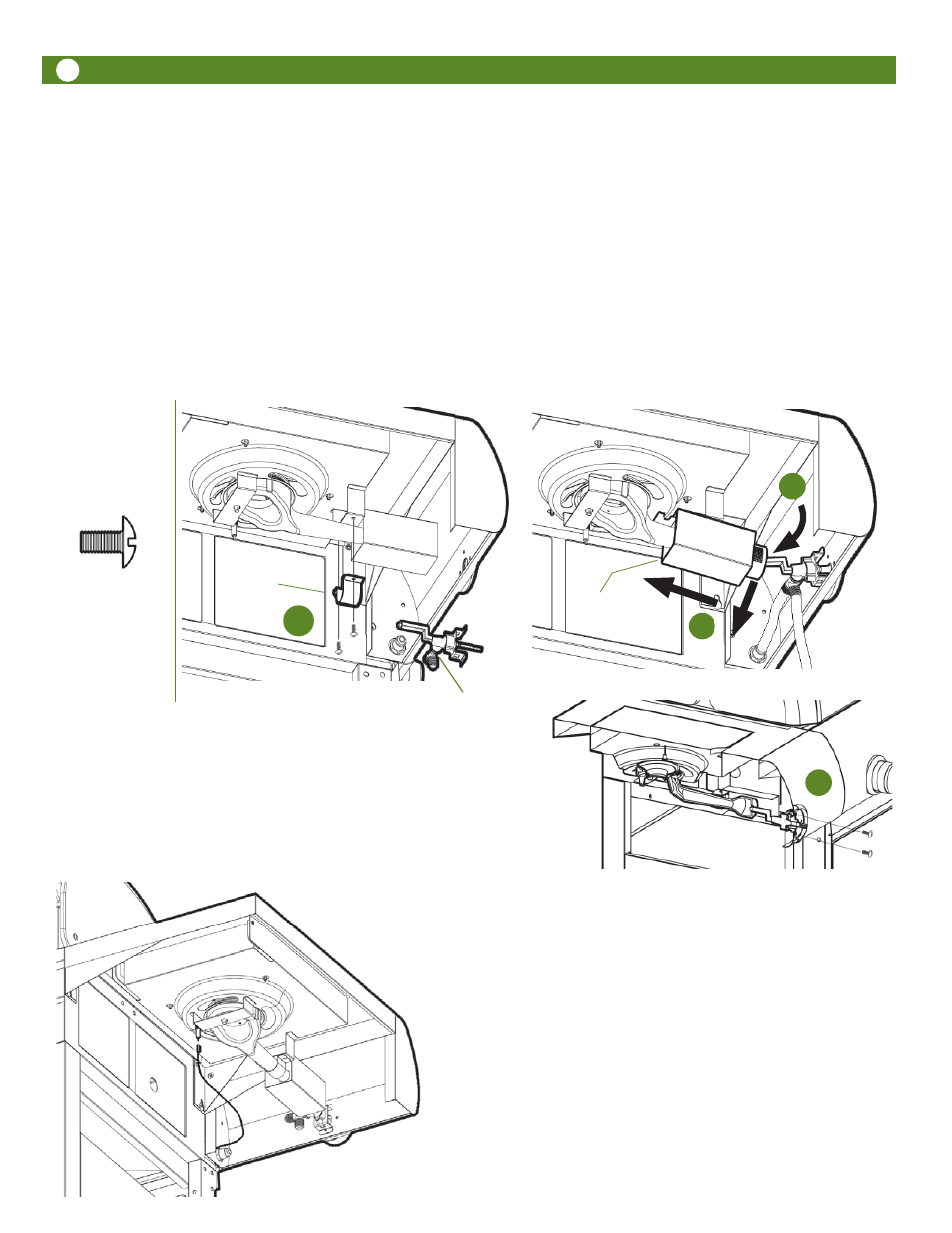

Step 13

Side Burner Valve Assembly

NOTE: Side Burner Valve is already attached to the regulator hose. Hose is not shown in some illustrations for clarity.

Install the Side Burner Valve from underneath the LEFT Side Table. Remove the screws from the side burner bracket

and set aside with bracket.

Tilt venturi end of burner down and slide rectangular venturi windscreen toward back of grill to expose open end of

burner tube.

Insert the valve stem out through the hole in the bezel and fascia on the front of the side table. Next insert the

nozzle into the opening in the burner tube.

Attach the valve to the front of the side table by installing two 5/32” x .31” Bolts through the Control Knob Bezel and

front of the Side Table into the threaded Valve bracket holes. Slide the windscreen back into position and replace the side
burner bracket.
