Triton Sediment - Manual (Page 16)

Page 13
Options available include:

Create - use to create a neural net for automated image classification

Back - allows users to return to previous pages of wizard to change values entered

Finish - select when done creating neural nets and setting parameters
3.3 Classify Bottom Types
The last step in the classification process is to use the neural net to automatically classify

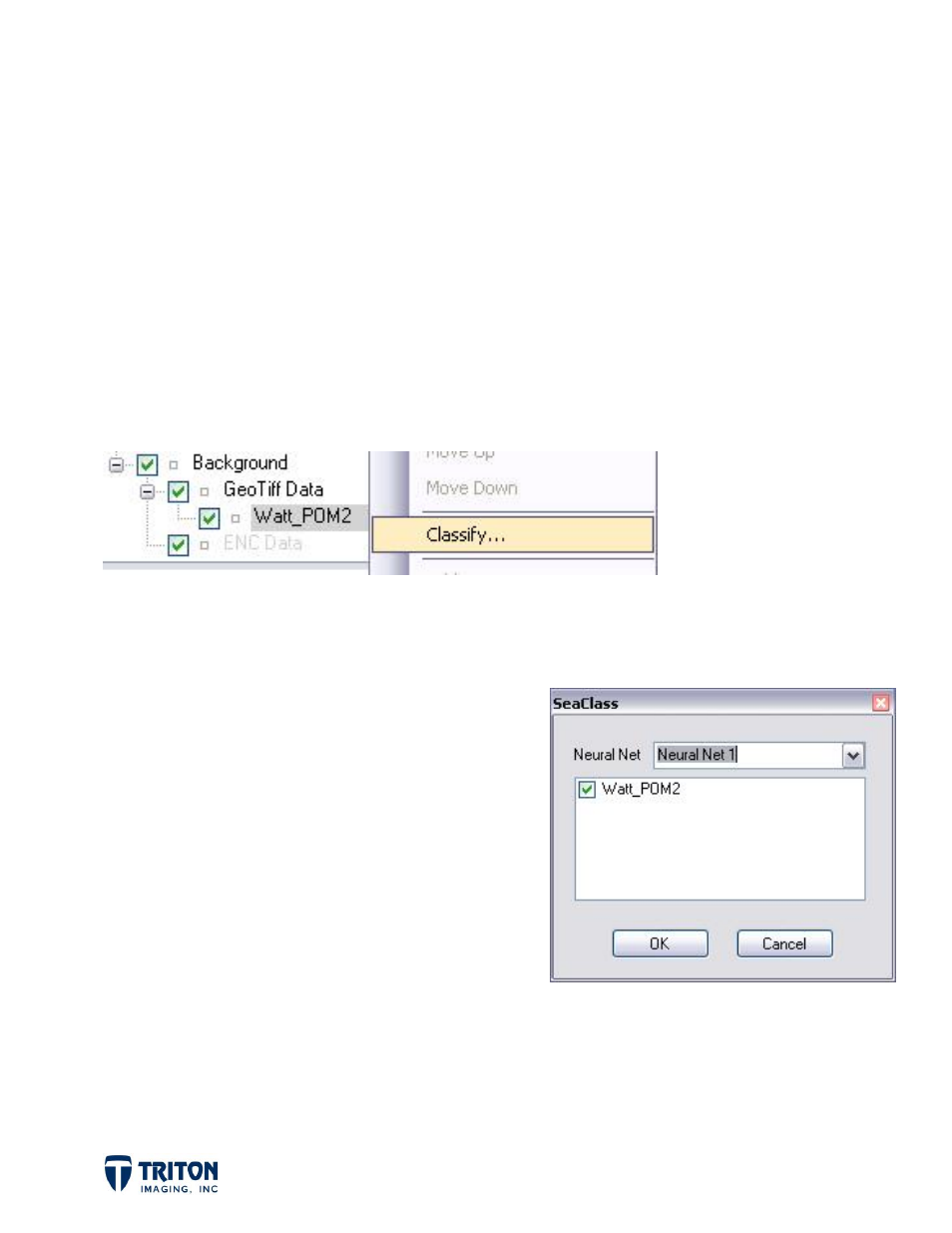

an image or mosaic file. To classify an image or mosaic, right-click on file in the 'Imagery'
or 'Background' file tree and select 'Classify' as shown below:
This will open the 'SeaClass' window shown
below:
Options in this window include:

The drop down list contains all of the
available neural nets.

Select the layer to classify by clicking the
checkbox next to the layer name.

Cancel will close the SeaClass window and
stop the classification process.

OK will close the SeaClass window and will open a Save Classification Grid File
window as shown below:
