SECTION 2 - ASSEMBLY
SECTION 2 - ASSEMBLY
2-10

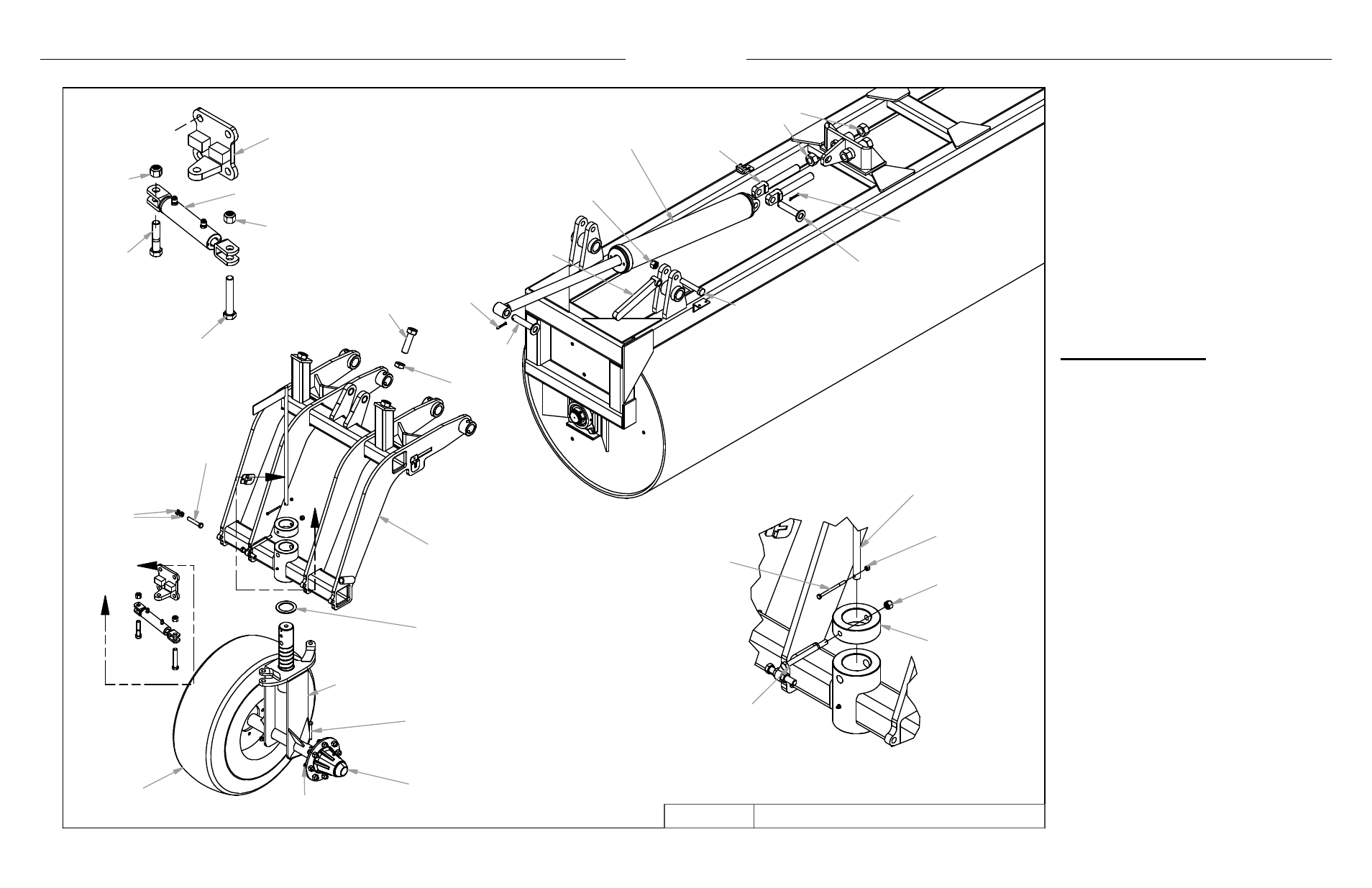

Figure 5
DETAIL A
SCALE 1 / 10
DETAIL B
SCALE 1 / 10
WING TRANSPORT
5/8/2014
9LR0410.iam/
A
B
8P7197
8X0222
1/4" LN
8X0242
NY-LOCK 1/2" N
8P7185
8P7155
8X0005
1/4" X 3-3/4"
8X0285
1 1/2" N
8L4628
8X0414
8K1620
8C0532HD
8P7320
8X0138
1 X 5-1/2"
8X0281
NY-LOCK 1"
8X0414
8K1620
8X0283
1 1/4" JN
8J4600
8P7155
8X0380
3.06"IDX4.25"OD WSHR
8X0072
1/2" X 3-3/4"
8K1105S
8K1105S
8P7165
8K7042
8P7195
8X0098
5/8 X 3.5"
8X0251
5/8 JN
8X0261
3/4" LN
8X0115
3/4 X 3-1/2"
8D9095
8X0122
3/4 X 4 1/2"
8X0261
3/4" LN
Figure 4. Install snap rings on each
roller shaft. Ensure that the roller is
centered in the bearings and tighten
the set screws.
P1W6. Install the hubs on 8P7165 as shown
in Figure 5. Attach with the shown
hardware and tighten.
P1W7. Install the tires to the hubs installed
in the previous step. Tighten the
wheel nuts to 240 ft-lbs. torque.
Scraper Installation
S1. Install scrapers as shown in drawing on
page 2-11. Use the hardware shown
in detail A.
S2. Adjust scraper so they do not touch the
roller.
