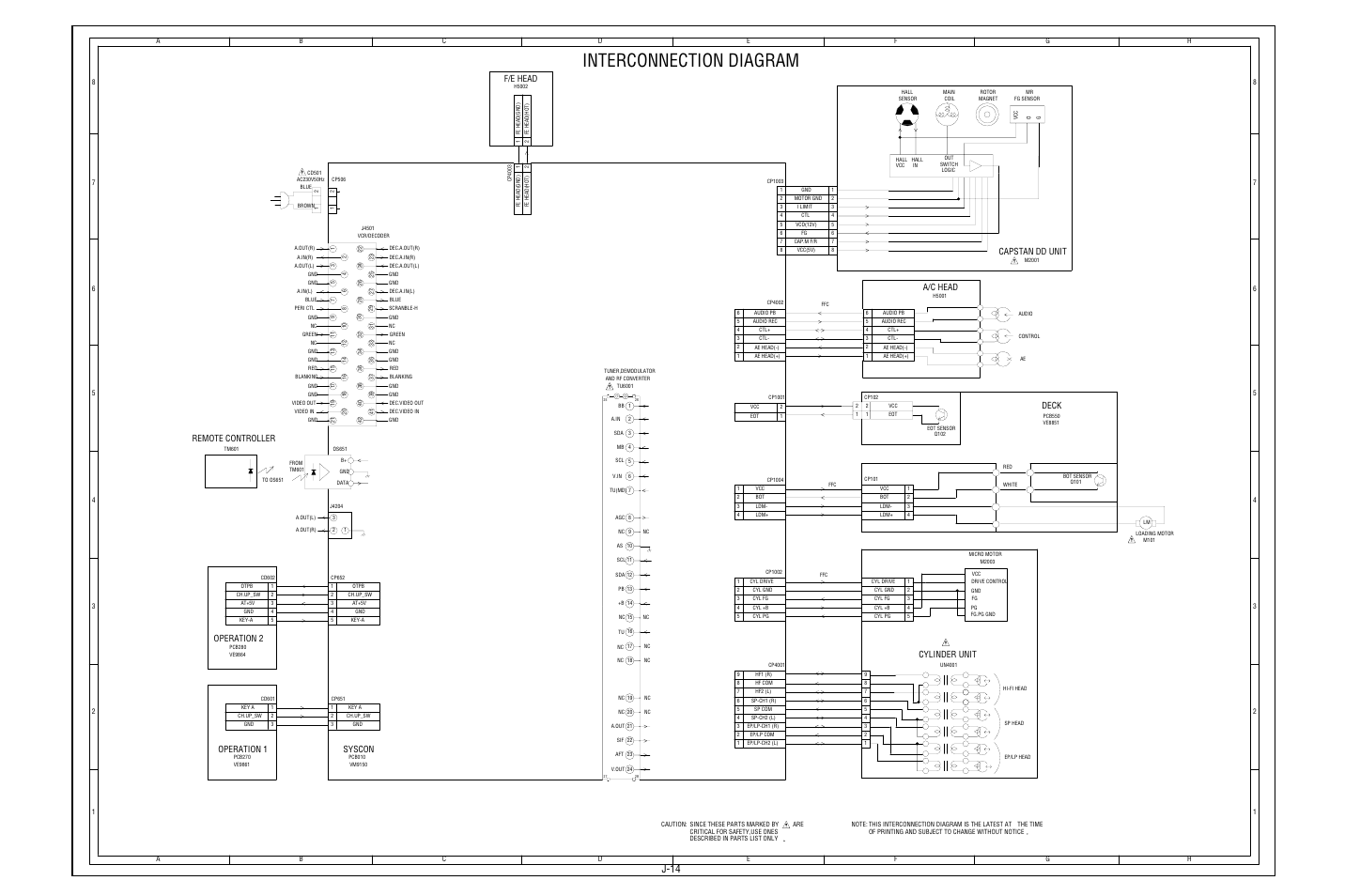

Interconnection diagram, J-14, Syscon operation 1 operation 2 – Aiwa HV-FX5100 User Manual

Page 74: Cylinder unit deck, Capstan dd unit a/c head remote controller, F/e head

Text mode
Original mode

Interconnection diagram, J-14, Syscon operation 1 operation 2 | Cylinder unit deck, Capstan dd unit a/c head remote controller, F/e head | Aiwa HV-FX5100 User Manual | Page 74 / 84
