Video Processor

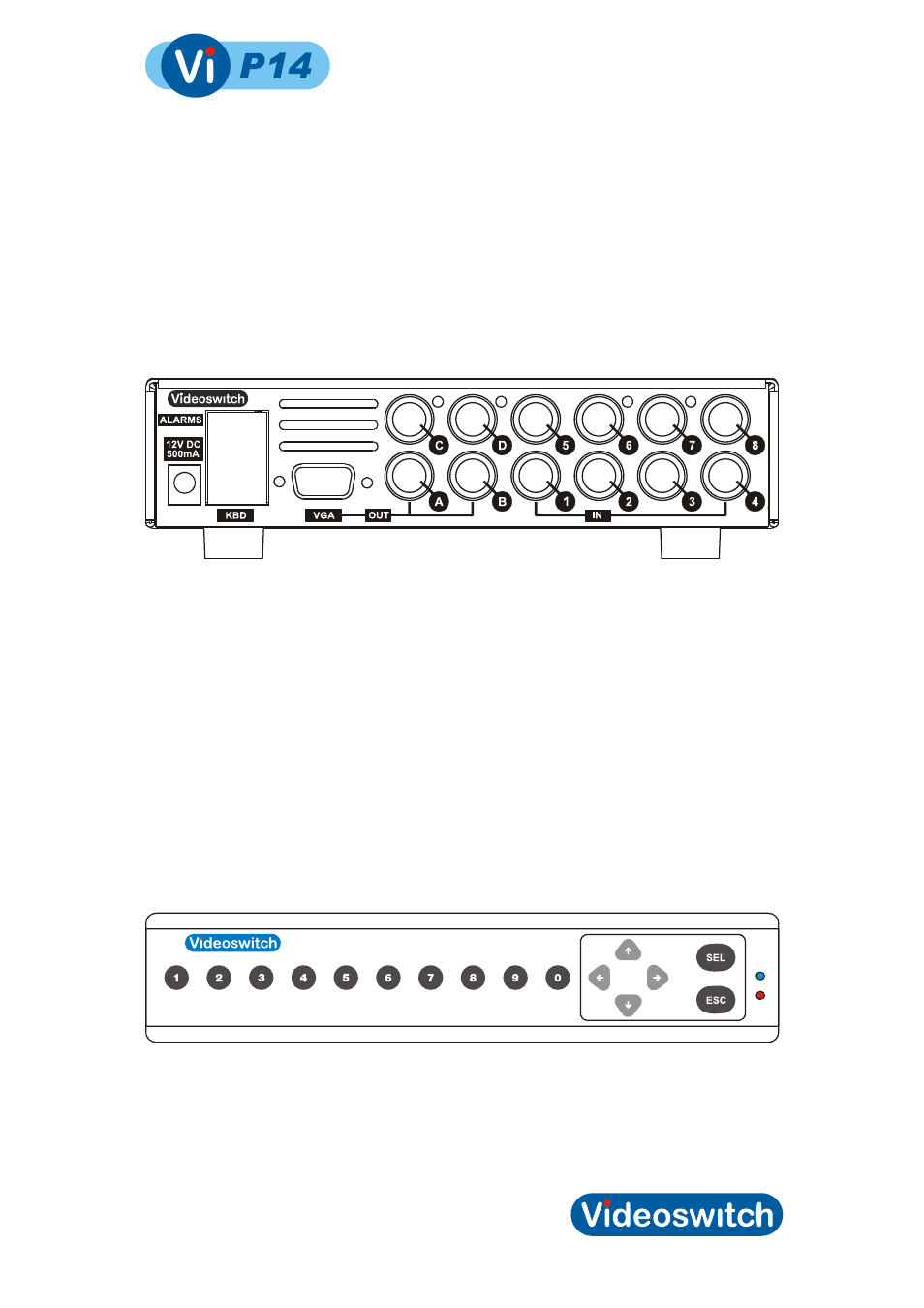

1.1 Connecting Up
For a standard digital recording system you will need
• The Vi-P14, Vi-P14A or Vi-Q4C1 Video Processor
• Some cameras with lenses
• A video monitor (with BNC composite video input) or a VGA monitor
• BNC
cables
• Connect the monitor output (MAIN) of the Video Processor to a Video Monitor using
a BNC cable
• Make sure that the monitor termination is switched on (i.e. to 75 Ohms)
• Connect a camera to Camera Input 1 on the Video Processor using a BNC cable
• Connect further cameras to Inputs 2,3,4 etc
• Connect the mains power using the mains cable provided
1.2 Keypad
The Vi-P14 and Vi-P14A have a mini-keypad with the key layout as above. All functions can
be controlled by the 16 keys provided. Two additional functions are provided by holding
down the SEL key for 1 second or the ESC key for 1 second.
2
