4 Connections

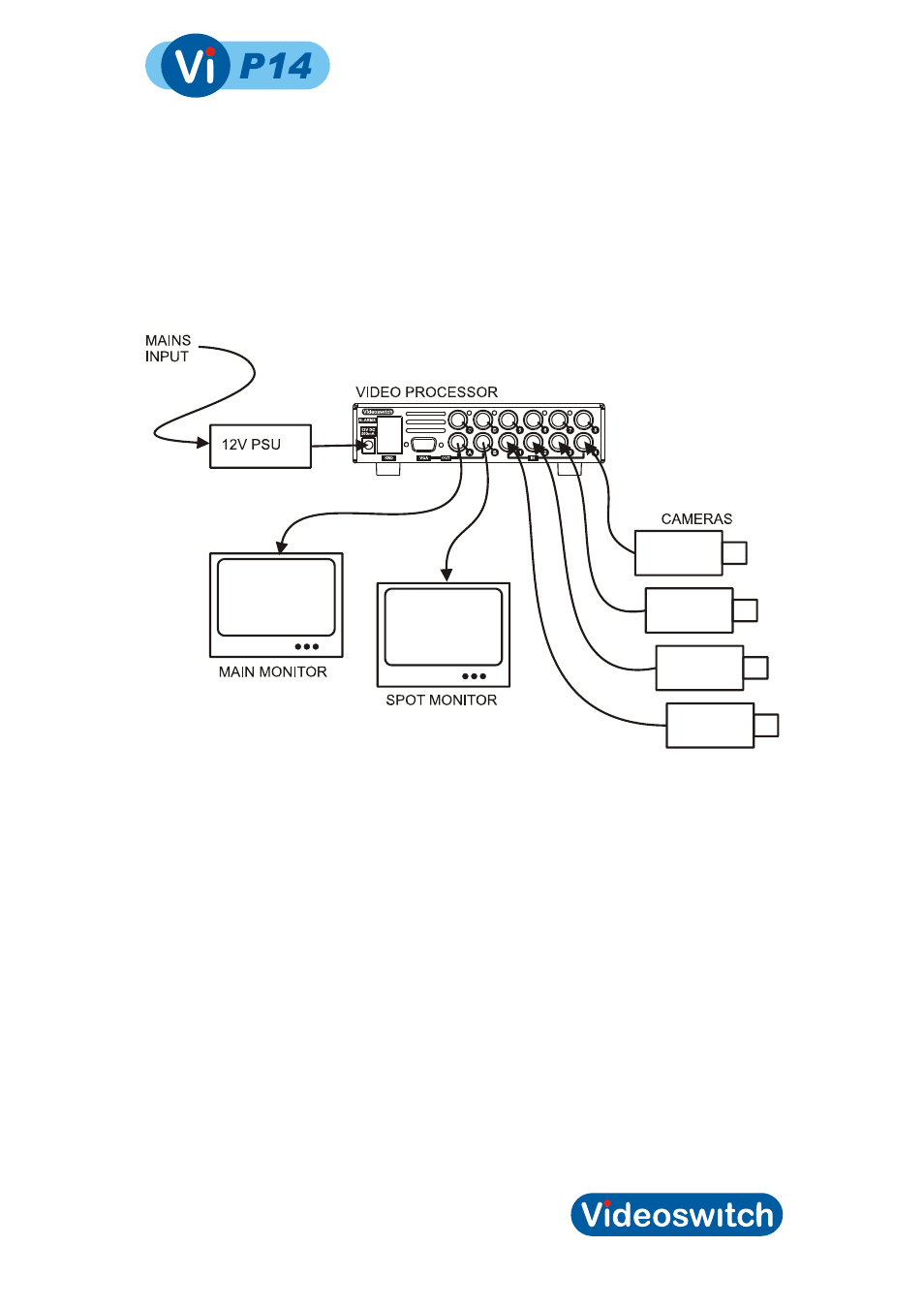

This shows a typical example of the video and power connections required. The spot
monitor is optional. The second row of BNC connectors may be used for loop-through.
