10.4 Ethernet connection to
Broadband

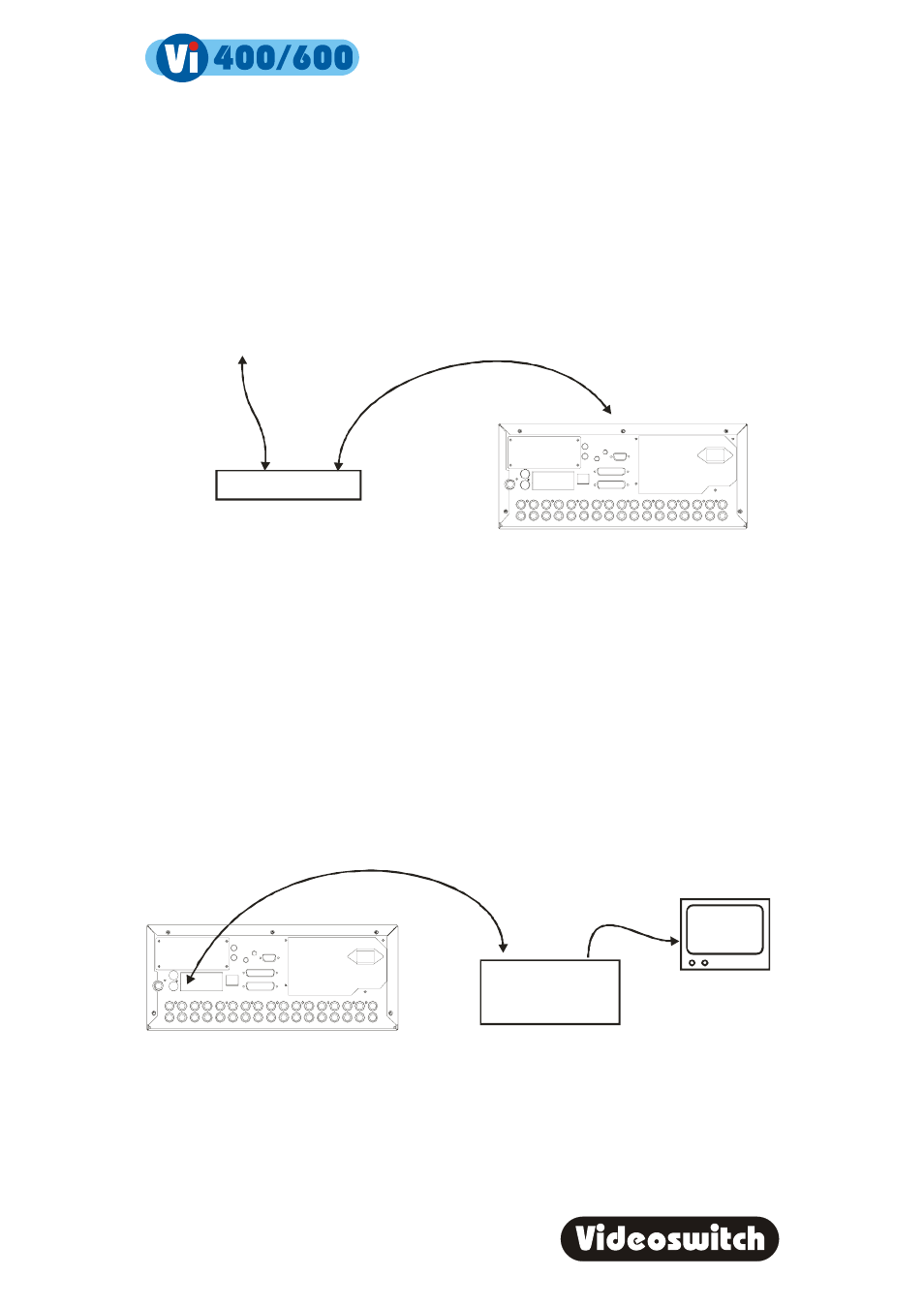

Connection to broadband is via an ADSL router with one or more Ethernet ports.
ADSL ENABLED
PHONE LINE
ADSL ROUTER
WITH
BUILT-IN HUB
CAT5
CABLE
Vi600
10.5 Remote Keyboard
Two remote keyboards may be connected to the Vi400/Vi600 to provide control from
another room. Simply connect the VI400/VI600 to the keyboard using Cat 5 (or similar twin
twisted pair cable).
Connect the keyboard to a monitor using a BNC co-ax cable. All the keys of the Vi400/Vi600
are duplicated on the remote keyboard and the Vi400/Vi600 may be controlled in the same
way.
If the keyboard is more than about 100 metres away from the Vi400/Vi600, then the monitor
should be connected to the Vi400/Vi600 separately via a BNC cable (RG59) to ensure best
picture quality. The CAT5 data connection should operate up to 500 metres.
Vi600
MONITOR
CO-AX
CAT5
Vi-K1 or Vi-K2
KEYBOARD
OUT MON
• A keyboard connected to the Main Keyboard input will control the main monitor.
• A keyboard connected to the Spot Keyboard input will control the spot monitor.
• Keyboards may be daisy-chained if further control positions are required.
