VariZoom VZCINEMAPRO-JR-K4 - Manual (Page 14)

CP JR Head - Base Connectors
1) Head Control Connector (Green) – LEMO EGG1B307CLL
Pin Function Wire Color (Cable)
1 Common Brown
2 RS-422 RXD Red
3 RS-422 RXD! Orange
4 RS-422 TXD Yellow
5 RS-422 TXD! Green
6 24 VDC + Blue Power to Remote or Jibstick
7 24 VDC - Violet Power to Remote or Jibstick
2) Power Input Connector – XLR 4-pin Male
Pin Function Wire Color
1 Camera Neg. Black
2 Cinema Pro Neg. White
3 Cinema Pro Pos. Red
4 Camera Pos. Green
*** WARNING: DO NOT POWER THE CINEMAPRO JR WITH ANYTHING OTHER THAN
THE INCLUDED FACTORY POWER SUPPLY OR YOUR WARRANTY MAY BE VOIDED.
THE UNIT MAY BE SEVERELY DAMAGED AND CAUSE DAMAGE TO YOUR CAMERA IF
YOU USE A NON-APPROVED POWER SUPPLY. IF YOU MUST POWER IT USING A
BATTERY SYSTEM, MAKE SURE THE SETUP IS APPROVED BY VARIZOOM AND
EXECUTED BY A QUALIFIED TECHNICIAN.
CP JR Head - Top Connectors

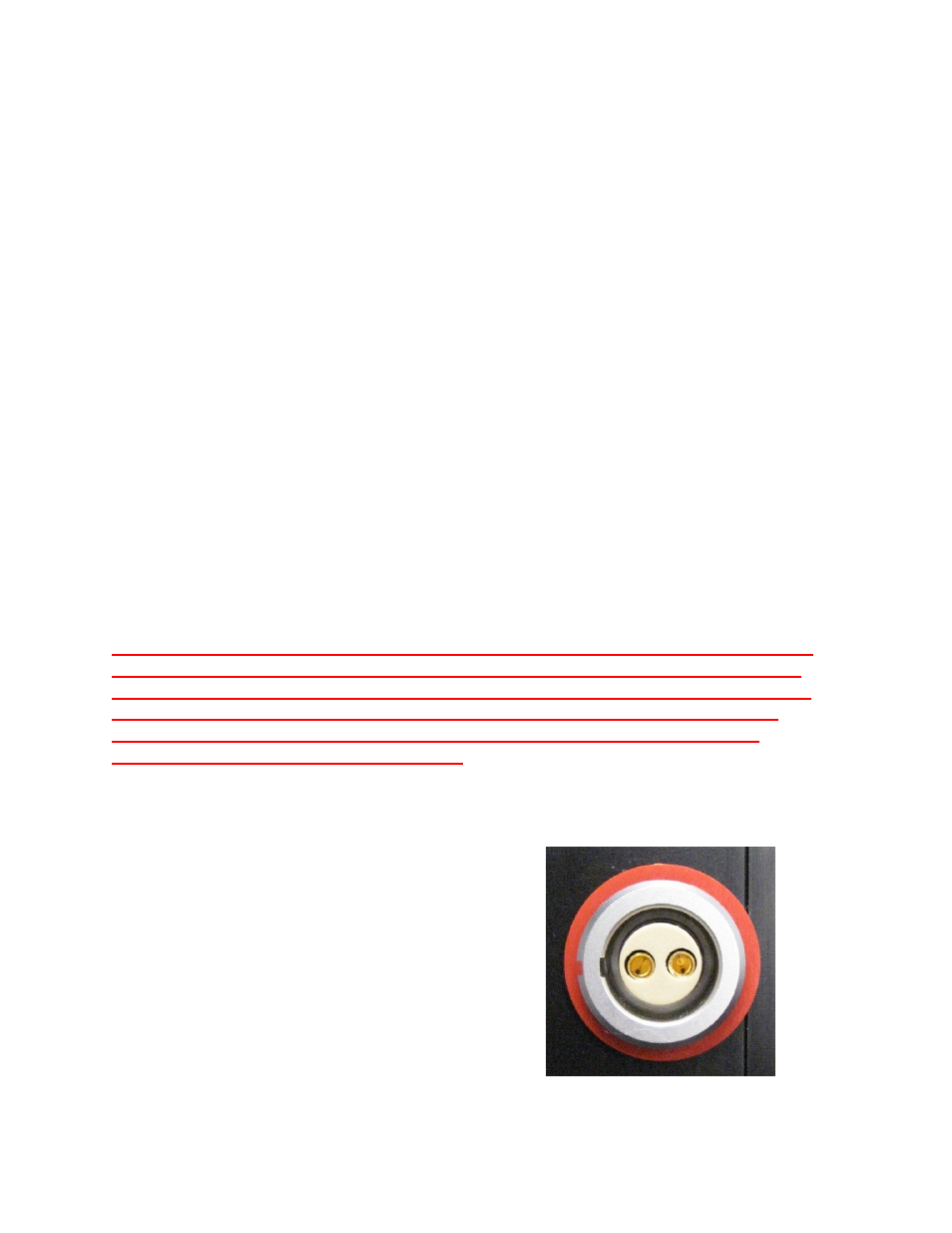

1) Camera Power (Red) – LEMO EGG2B302CLL
Pin Function
1 Camera Power +
2 Camera Power -
2) Lens Control (Orange) – LEMO EGG2B316CLL (Final
Version)
