High Country Tek HGC-2, Closed Loop Controller - Manual (Page 3)

3
Electronic Controller Solutions for the Global Fluid Power Industry

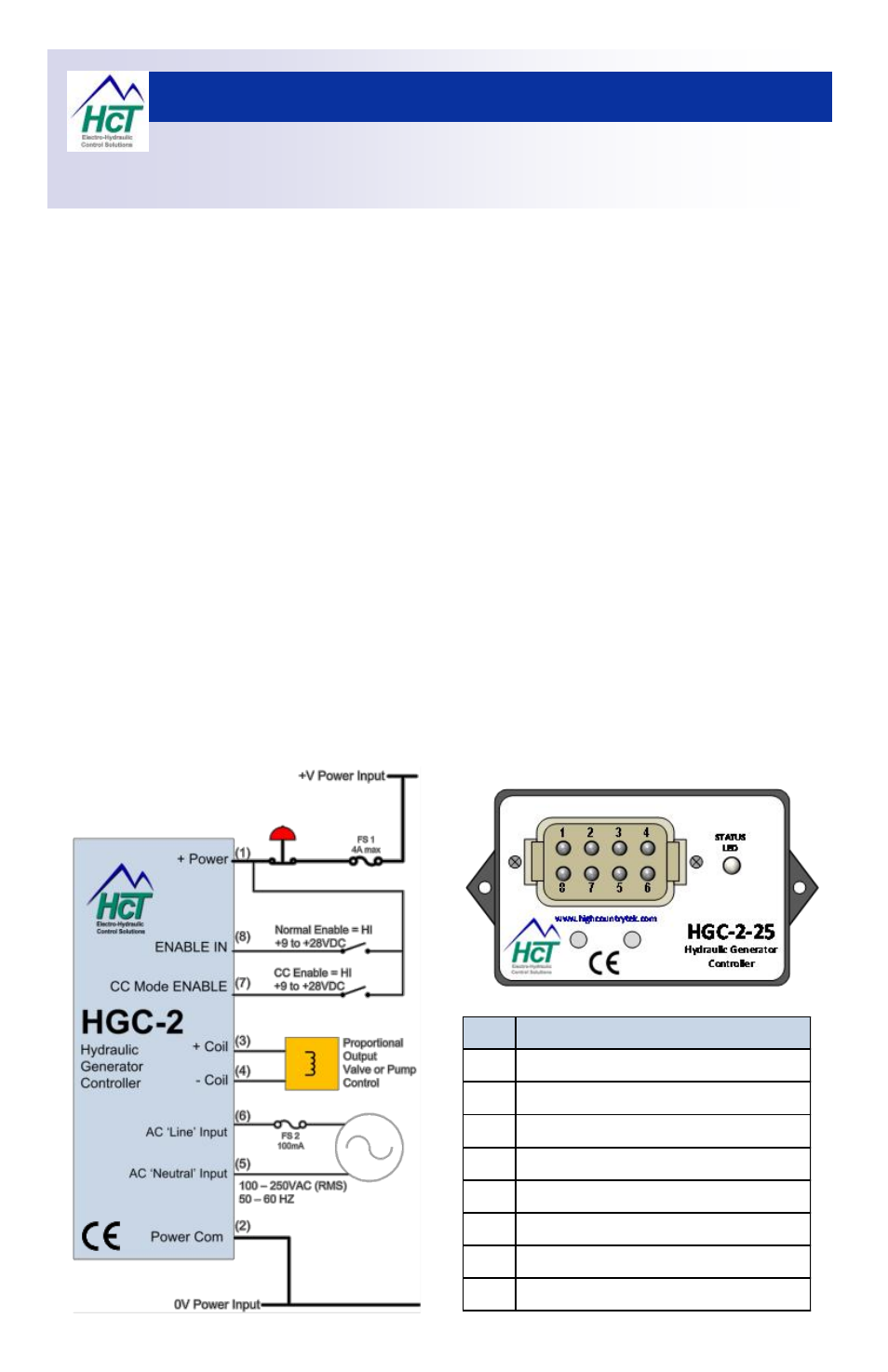

HGC-2 Connection Information:
Housing Type:- HCT unique ‘encapsulated’ block.
Input Supply Voltage: 9 – 28VDC ( Absolute Maximum )
Input Supply Current: Valve Current Setting + 50mA Quiescent (Max)
Feedback Voltage:- 100 to 250VRMS
Feedback Frequency:- 50 or 60Hz with +/-3Hz adjustment
O/P Current Ranges:- 600mA, 1.2A or 2.5A
Dither Frequency : Software adjustable, ~50Hz to ~1KHz
Housing Material:- ABS, black
Wire Connections:- 8 pin Deutsch - DTS06 - Male
Encapsulation:- Flameproof epoxy resin
Mounting:- 2 x No. 6 ( 4mm ) screws .
Temperature range:- - 20 to +80 ºC ( operational )
NEMA/IP Rating: NEMA 6 / 67 ( module only )
Operating System: Windows® XP Professional / Vista
Business and Ultimate Compatible
Unit Settings: All by PC user interface
Pin Function
1 +VDC Input Supply
2 0VDC Input Supply
3 +Solenoid Connection O/P
4 -Solenoid Connection O/P
5 AC feedback Neutral I/P
6 AC feedback Line I/P
7 Constant Current Mode enable I/P
8 Controller ENABLE I/P
