Additional ON/OFF control features:
LED operation and description:
To allow low level signals to drive high current loads ( i.e. lamps/alarms ) , the application provides 2 extra ON/OFF
drives for convenience:
Digi 2 ( Connector pin S3 ) is internally connected to HS 5 ( Connector pin W3 )
Digi 3 ( Connector pin T3 ) is internally connected to HS 6 ( Connector pin X3 )
8

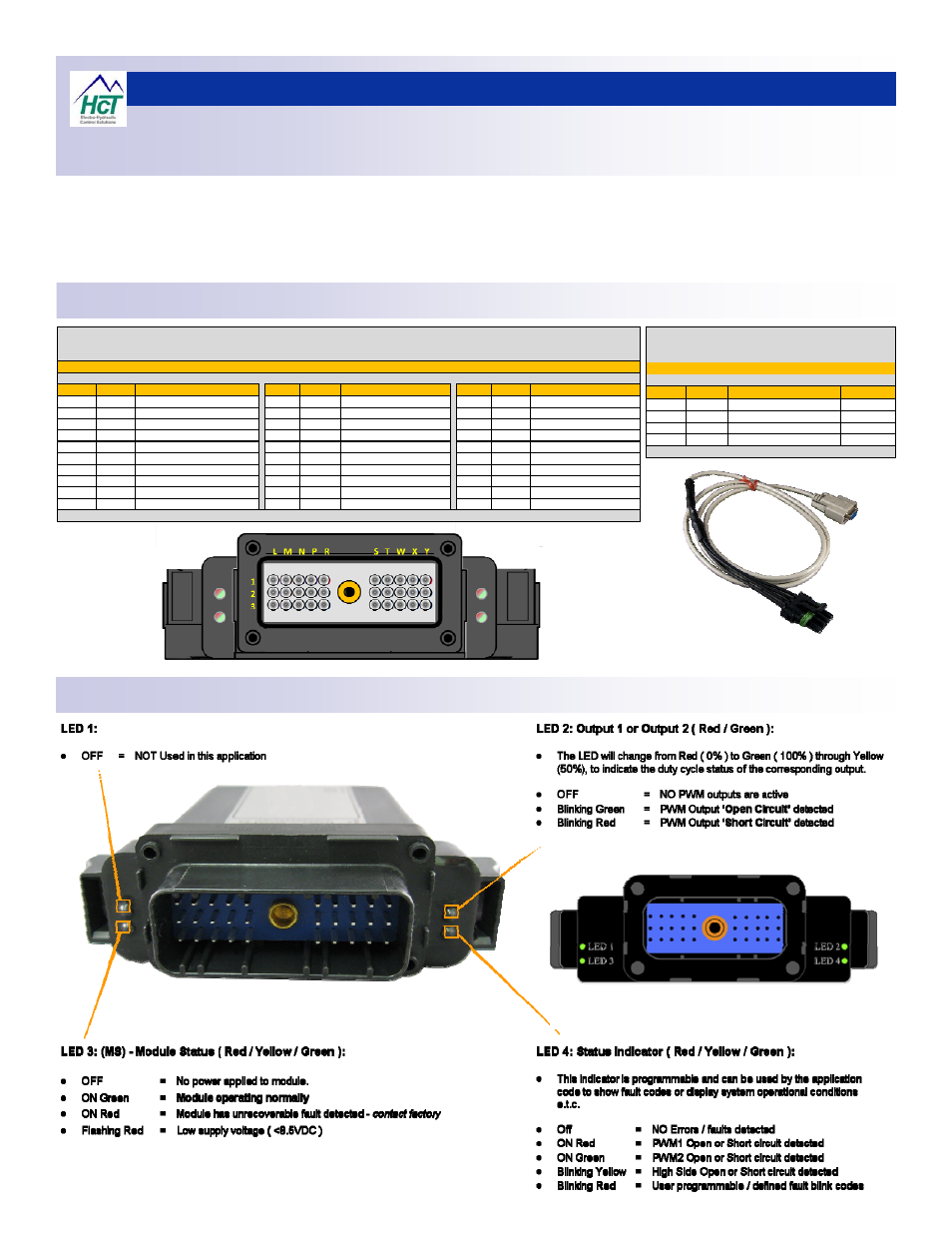

evc-2 Module connection details:
evc‐2 PIN Name
Function
999‐10076
L1
TXD
Transmit RS232 Data ‐ Pin 'C'
C
L2
RXD
Receive RS232 Data ‐ Pin 'A'
A
L3
RTS
Request To Send ‐ RS232 Pin 'D'
D
M2
PWR COM RS232 GND (0V)
B
RS232 (PC) to epc‐2 Communication Cable
999‐10075 Connector Details
PIN
Name
Function
PIN
Name
Function
PIN
Name
Function
L1
TXD
Transmit RS232 Data ‐ Pin 'C'
T3
DIG‐3
Digital I/P #3 ( Turns ON X3 )
L2
RXD
Receive RS232 Data ‐ Pin 'A'
P3
PWR COM Channel #1 Command GND/0V
W1
PWM‐1
Chanel #1 PWM O/P
L3
RTS
Request To Send ‐ RS232 Pin 'D'
R1
UNI‐2
Channel #2 Command I/P
W2
PWM‐2
Chanel #2 PWM O/P
W3
HS‐5
Digital O/P ( from Digi 2 I/P )
M2
PWR COM RS232 GND/0V
R3
+5V USER
+5V regulated user output
X1
HS‐2
Channel #1 Coil B
M3
PWR COM Channel #2 Command GND/0V
X2
HS‐4
Channel #2 Coil B
S2
DIG‐1
Global Enable I/P
X3
HS‐6
Digital O/P ( from Digi 3 I/P )
N2
PWR COM Ground / 0V / Signal Common
S3
DIG‐2
Digital I/P #2 ( Turns ON W3 )
Y1
+PWR IN‐1 +V Supply Power Input
N3
PWR COM Ground / 0V / Signal Common
T1
HS‐1
Channel #1 Coil A
Y2
+PWR IN‐2 +V Supply Power Input
P1
UNI‐1
Channel #1 Command I/P
T2
HS‐3
Channel #2 Coil A
30 Pin Metri‐Pak Connector ( Male, Plug )
evc‐2 Connector Designation Tables
HCT Part Number:
999-10075
