High Country Tek eVc-2, Electronic Valve Controller User Manual
Page 7

Electronic Controller Solutions for the Global Fluid Power Industry

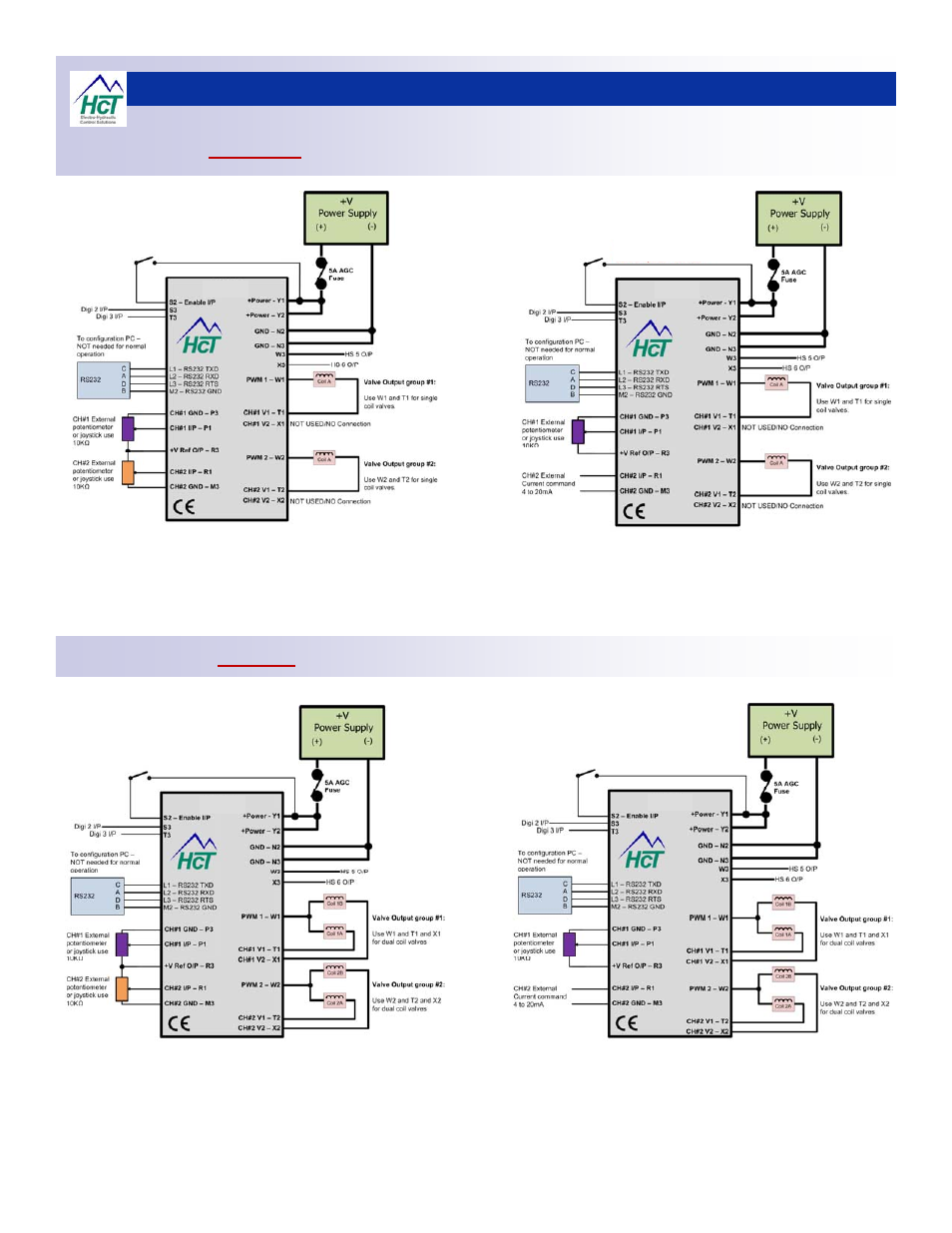

Dual Path with
Single coil
connections: ( see Appendix A for output graphs )
Configuration shown using 2x potentiometers or
joysticks with internal regulated +5V to control 1x
valve coil per channel.
Configuration shown using 1x potentiometer or
joystick with internal regulated +5V and 1x externally
provided 4-20mA command input to control 1x valve
coil per channel.
Configuration shown using 2x potentiometers or
joysticks with internal regulated +5V to control 2x
valve coil per channel.
Configuration shown using 1x potentiometers or
joysticks with internal regulated +5V and 1x externally
provided 4-20mA command input to control 2x valve
coil per channel.
REMOTE ENABLE :
See note
on page 3 of this manual
REMOTE ENABLE :
See note
on page 3 of this manual
REMOTE ENABLE :
See note
on page 3 of this manual
REMOTE ENABLE :
See note
on page 3 of this manual
evc-2
evc-2
evc-2
evc-2
Dual Path with
Dual coil
connections: ( see Appendix A for output graphs )
7
