AMETEK 7330 Pro-Stik II - Manual (Page 2)

Accessories
Item Part Number
Float Kit, 316 SS, 2.05” Diameter w/ E Clip and Spacer 0.54s.g. SD0515000
Float Kit, Nitrophyl, 2.02” Diameter w/ E Clip and Spacer 0.40s.g. SD0536500
Cable Assembly, 4 pin, 6 feet long (M style only) 01533141
Adjustable Tube Coupling 5/8” x 3/4” NPT 04283800
Junction Box, side mount, N4X with zero & span push buttons SD0536101
Safety Barrier Single Channel 04517238
Safety Barrier Dual Channel 04517248
Meter, 4 1/2 digit display, panel mount, 2 output relays 04541069
Bushing, 3/4” x 2” NPT 316SS 04587241
Wiring Diagram
Part Numbering
7330X Pro-Stik II Stainless Steel

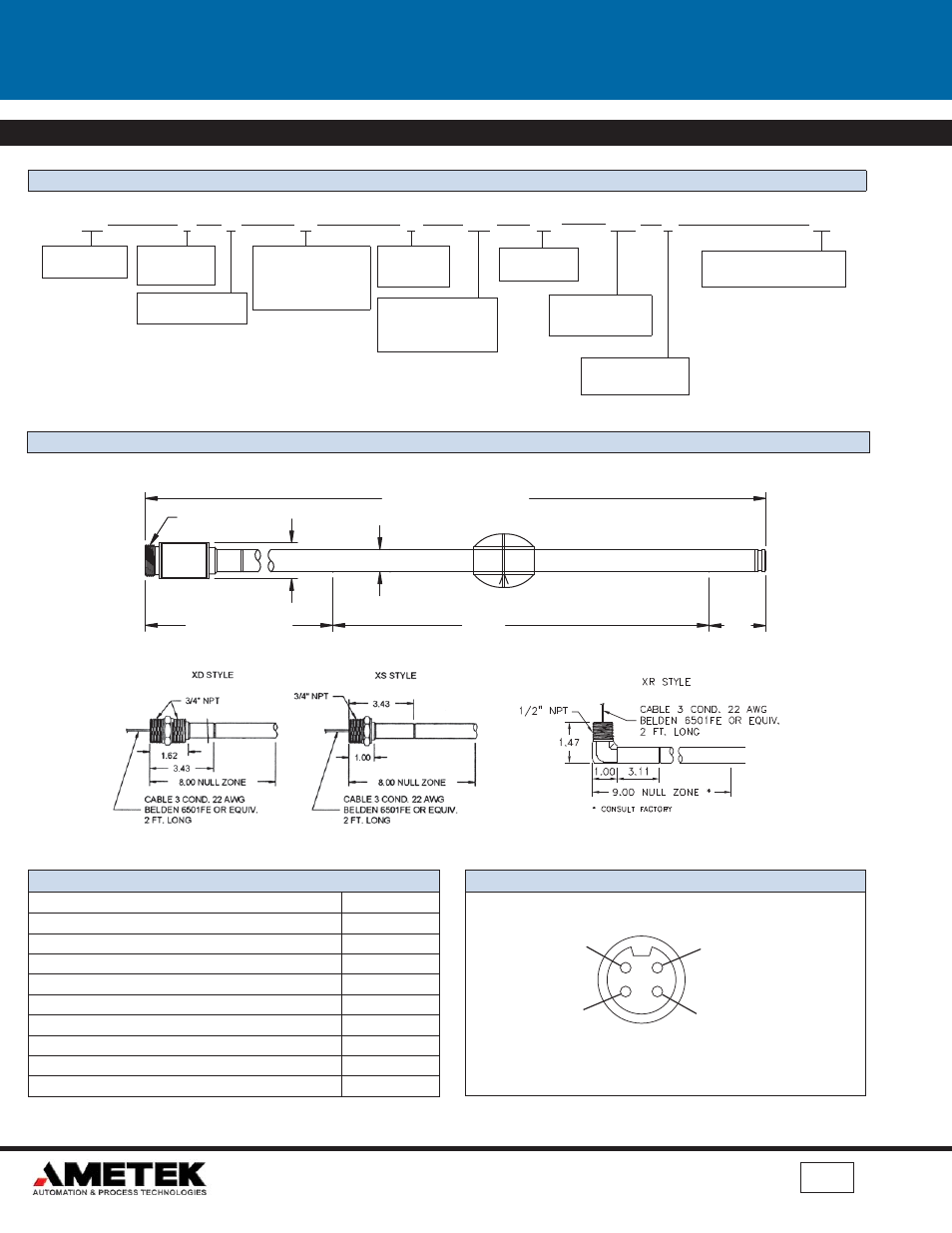

Dimension Drawing
1080 N. Crooks Road, Clawson, MI 48017-1097
Phone: 248.435.0700 Toll Free: 800.635.0289 Fax: 248.435.8120 www.ametekapt.com
Copyright 2005 by AMETEK AUTOMATION & PROCESS TECHNOLOGIES. All Rights Reserved. Made in the USA.
7330X.D4R
6/08.Z154
733 0 X M E LLL F1 XXX X XX
Overall Length*
ie. 072 = 72”
Min 18” Max 288”
Mounting Style
X = None
Connector Style
M = 4 Pin Mini
R = 1/2” NPT Right Angle
D = 3/4” NPT Dual
S = 3/4” NPT Single
Fittings
E = English
M = Metric
7330
Pro-Stik II
Output
0 = 4 to 20mA
1 = 20 to 4mA
Span*
ie. 072 = 72” (Min 8” Max
278”. Max span is equal to
overall length -10)
# of Floats
F1 = 1 Float
Special Mounting
XX = None
Style/Material
X = 316 Stainless Steel
Consult factory for
other options.
Chassis
(Shield for Cable),
(Green wire for cordset)
Loop In -
(Black wire)
Program Input
(White wire) Loop In +
(Red wire)
Connector View
Contact Factory for additional drawings.
1
2
4
3
* NOTE: Span and OAL in 1” increments only.
7/8-16 UNS-2A
1.00
8.00" NULL ZONE
OVERALL LENGTH (O.A.L.)
.625
2.00"
DEAD
BAND
M STYLE M Connector
SPAN
