Accessories
Item P/N
Float Kit: Level Float, 316SS, 2.05” dia., 0.54sg Float,
E-clip & spacer
SD0557200
Float Kit: Interface Float, 316SS, 2.05” dia., 0.96sg Float,
E-clip & spacer
SD0556800
Float Kit: Level Float, Nitrophyl 2.0” d x 3.0” h 0.40sg, E-clip & spacer SD0548600
Float Kit: Interface Float (w/Nitro. level fl oat), 316SS, 2.05” dia.,
0.96sg, E-clip & spacer
SD0557300
Adjustable Tube Coupling: 316SS, 5/8” x 3/4” NPT 04283800
Reducing Bushing: 316SS, 2” x 3/4” NPT 04587241
Analog Interface Board: Modbus RTU to analog (4-20mA) converter 04534047
Part Numbering
7230 HT Multivariable Digital Probe

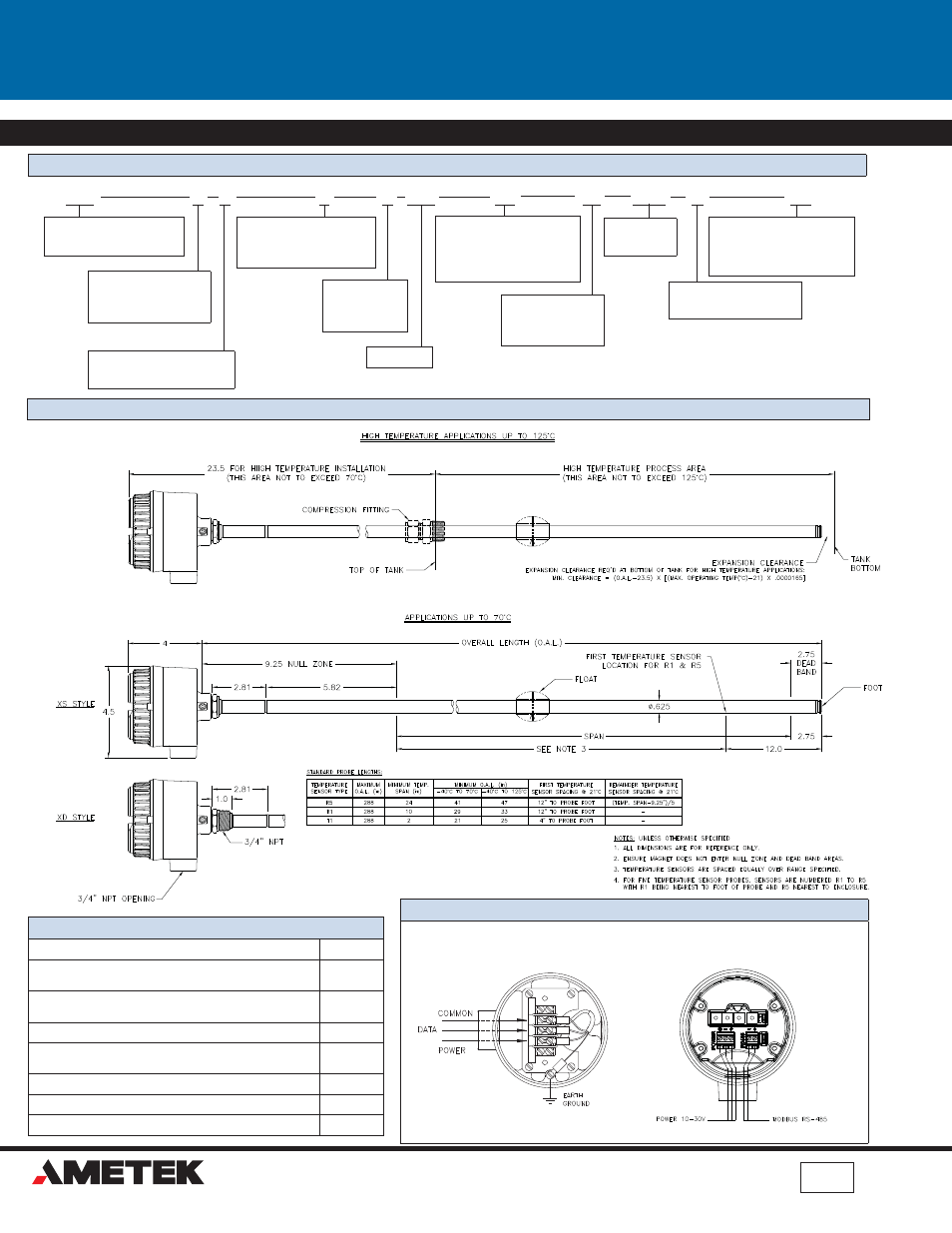

Dimension Drawing
1080 N. Crooks Road, Clawson, MI 48017-1097
Phone: 248.435.0700 Toll Free: 800.635.0289 Fax: 248.435.8120 www.ametekapt.com
Copyright 2007 by AMETEK Automation & Process Technologies. All Rights Reserved.
7230.D2R
3/09.Z278
723 X X X X LLL Fx XXX H EX
Overall
Length*
Mounting Style
H = Condulet
Connector Style
D = 3/4” NPT Dual
S = 3/4” NPT Single
Fittings
E = English
M = Metric**
7230 Series
HT Digital Probe
Protocol
1 = Modbus
5 = Proprietary ASCII
Span*
# of Floats
F1 = 1 Float
F2 = 2 Floats
Special Mounting
EX = FM (US & Canada)
Explosion Proof
Style/Material
X = 316 Stainless Steel
* Specifi ed in whole 1” increments.
See Dimension Drawing for ranges.
.
Rx
# of Temp Points
R1 = 1 Sensor
R5 = 5 Sensors
T1 = 1 Sensor
DA
T A
PW
R
COM
7230 Wiring Diagram
7235 Wiring 7231 Wiring
