Mounting of unit, Establishing camshaft direction of rotation, Cam settings – AMETEK 1980 Rotating Cam Limit Switch User Manual

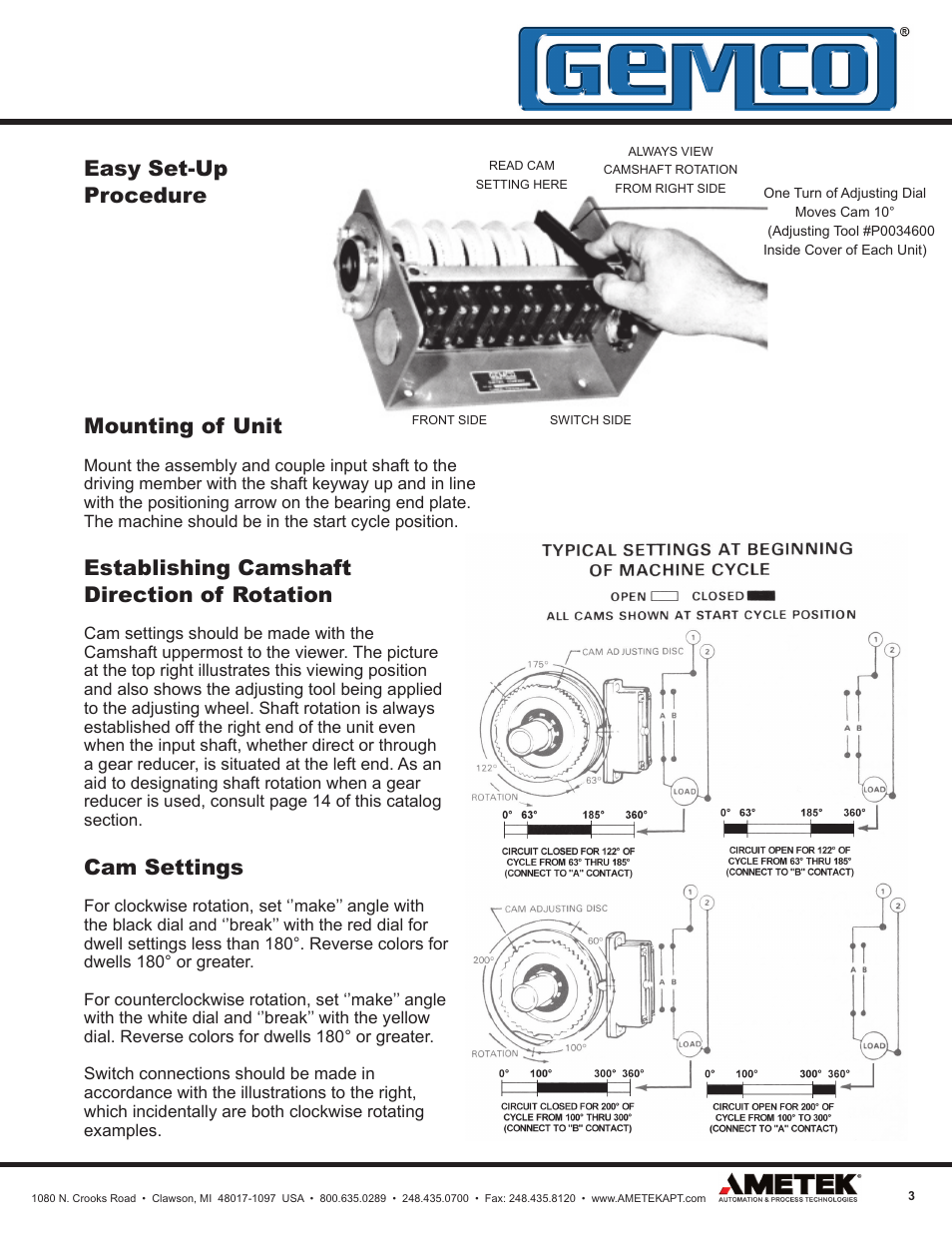

Page 3: Easy set-up procedure
