Operating and installation instructions

CONA

®

S - Ball float steam traps

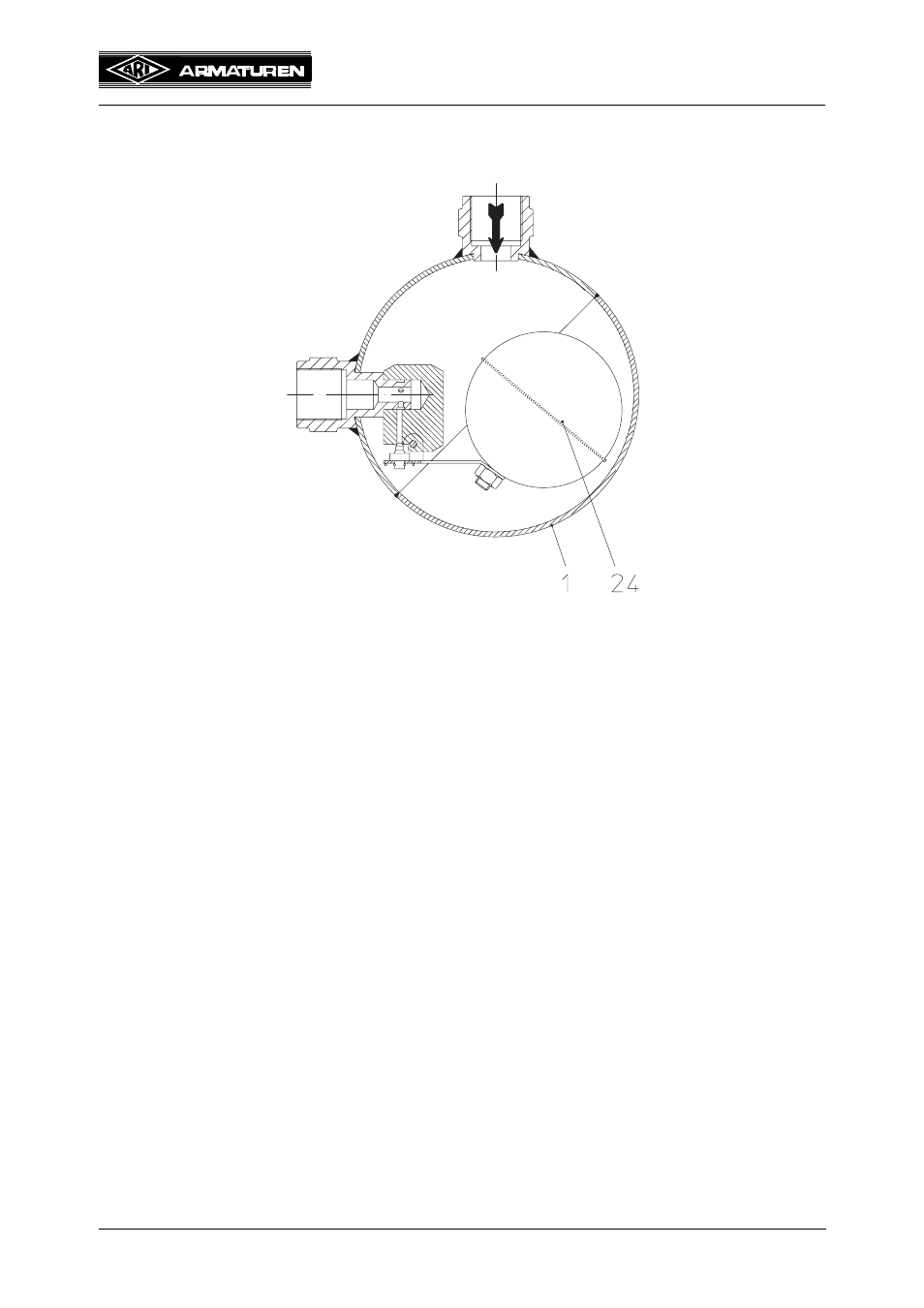

4.3 Schaubild

Refer to the data sheet for information about materials with designations and figure numbers.

4.4 Technical data - remarks

for
- Principal dimensions,
- Pressure-temperature-ratings, operating limits,
- Valves with different types of connection, etc.

refer to datasheet.

4.5 Marking

Fig. 1: Ball float steam trap - series 629 PN16

Manufacturer

Address of manufacturer:
refer to item 11.0 Warranty / Guarantee

Typ

Type

Bj.

Year of

According to the Pressure Equipment Directive appendix 2 diagram 7 valves acc. to article
1 paragraph 2.1.2 (pipes) only show the CE-marking from DN40 onwards.

AWH
