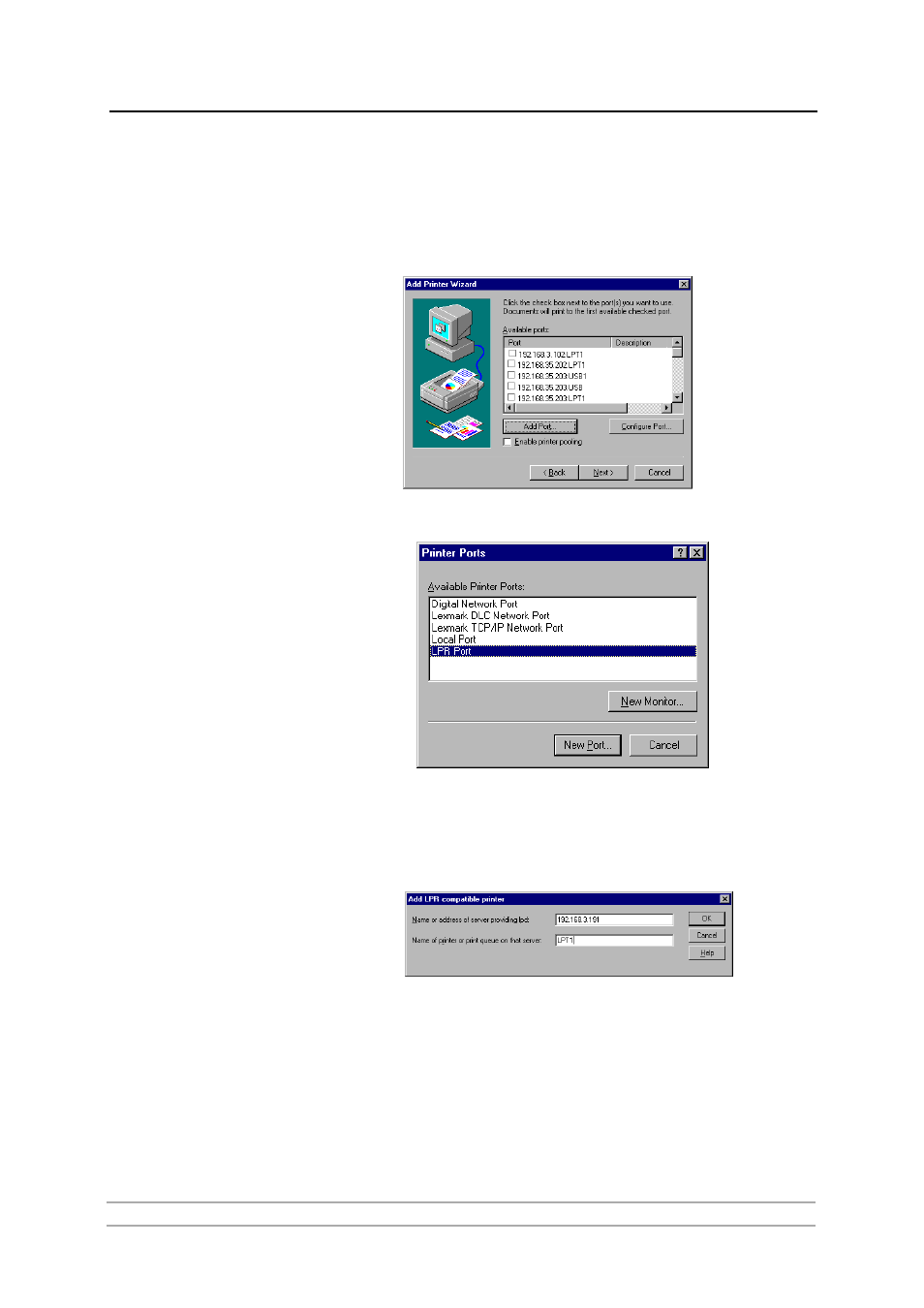

Adding Printers in Windows
AXIS 540+/AXIS 560
25
Installing a Network
printer
1. Go to
Start | Settings | Printers | Add Printer. Select My Computer and
click
Next.
2. From the
Available Ports list, choose the appropriate printer port, which will
appear as the IP address or host name of the print server. If it doesn’t appear
in the list, click
Add Port.
3. Choose
LPR Port from Available Printer Ports and click New Port.
4. Type the print server’s IP address (or host name) in the field
Name or address
of server providing lpd (IP address example: 192.168.3.191). Enter which port
to use in the field
Name of printer or print queue on that server (Example:
LPT1). Click OK and then Close.
5. The added print server will now appear in the
Available Ports list. Click Next,
choose a driver and finish the installation as usual.
