Chapter 3 __________________________________________________ Installation
VAISALA__________________________________________________________27
0206-058

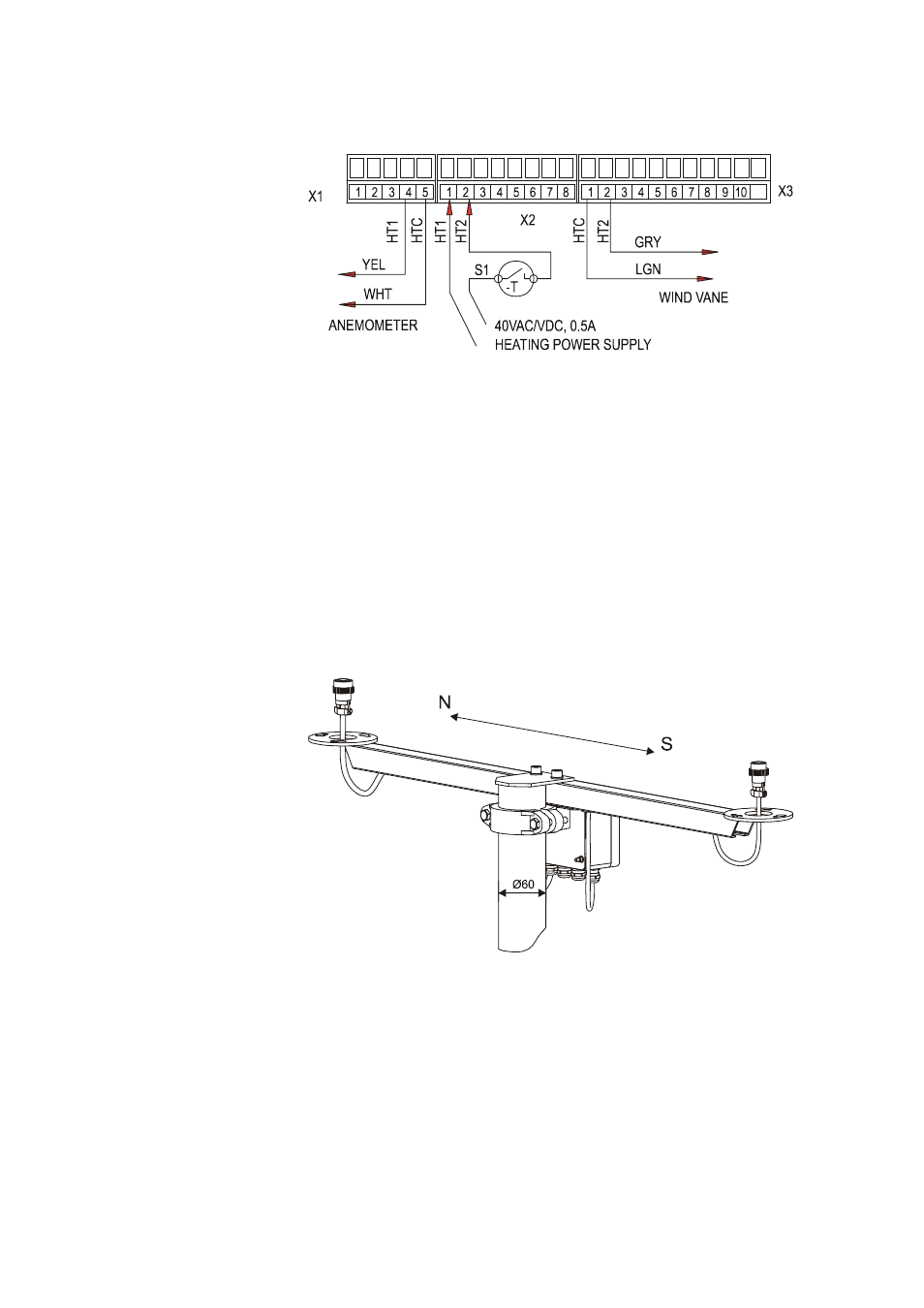

Figure 20 Standard Connection for Thermostat Switch
Mounting
Mounting WAT12 to the Top of a Pole Mast
Figure 21 below illustrates mounting of the WAT12
transmitter to the top of a Ø 60 mm pole mast, with the
standard mounting clamp. The arrow on the cover of the
junction box must point to north.
0206-059
Figure 21 Mounting WAT12 to the Top of a Pole Mast
