User's Guide ________________________________________________________
10 _____________________________________________________M210309EN-A
The WAT12 transmitter provides the sensors with a
throughput for optional heating power. A thermostat switch
is available as an option to automatically connect the
heating power in temperatures below +4 °C.
0206-041

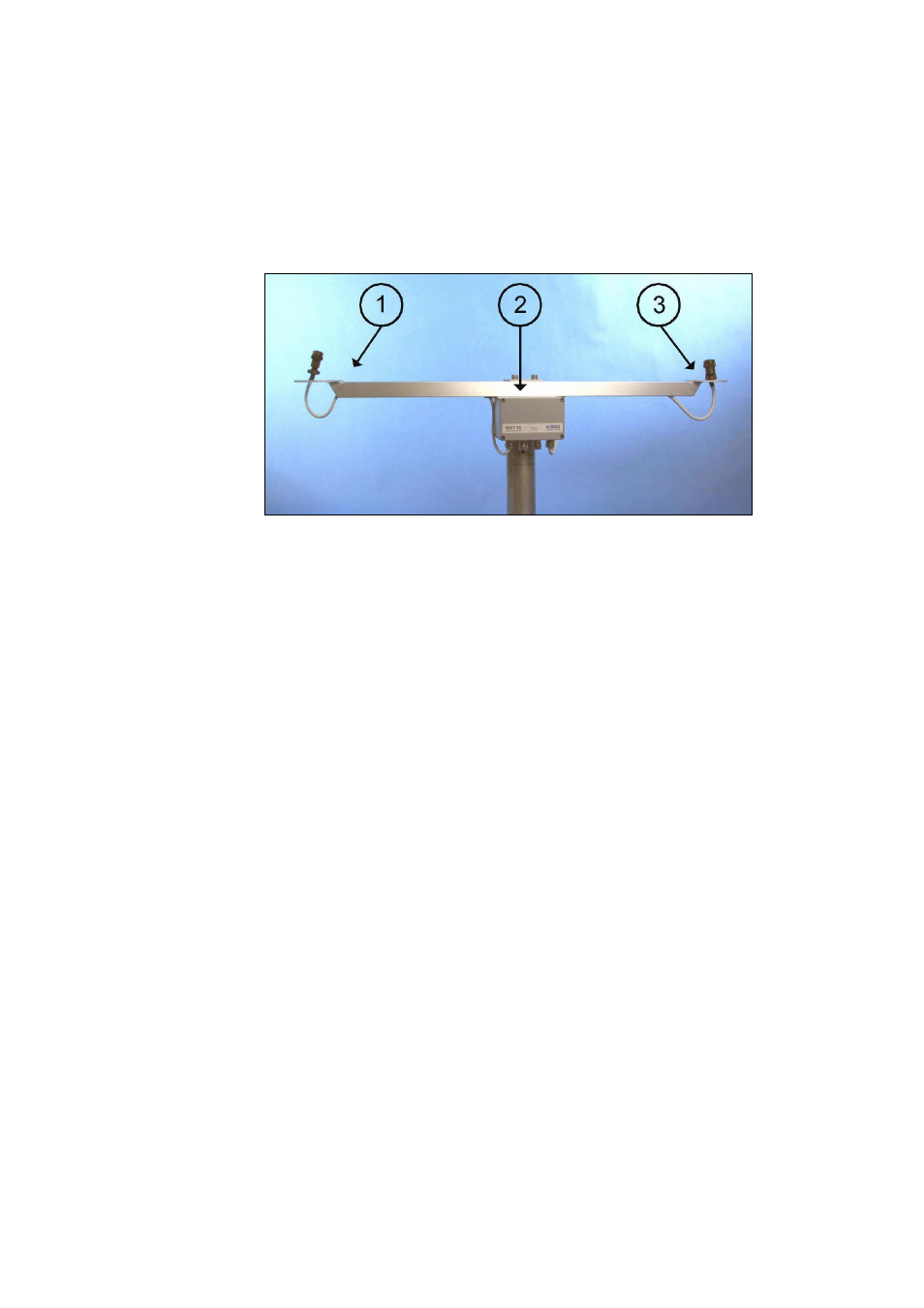

Figure 1
WAT12 Analog Wind Transmitter
The following numbers refer to Figure 1 above:
1 = Flange for mounting a Vaisala anemometer
2 = Junction box, containing the circuit board
3 = Flange for mounting a Vaisala wind vane
