Connections, 0 m/s – Vaisala WAT12 User Manual
Page 18
User's Guide ________________________________________________________
16 _____________________________________________________M210309EN-A
0206-044

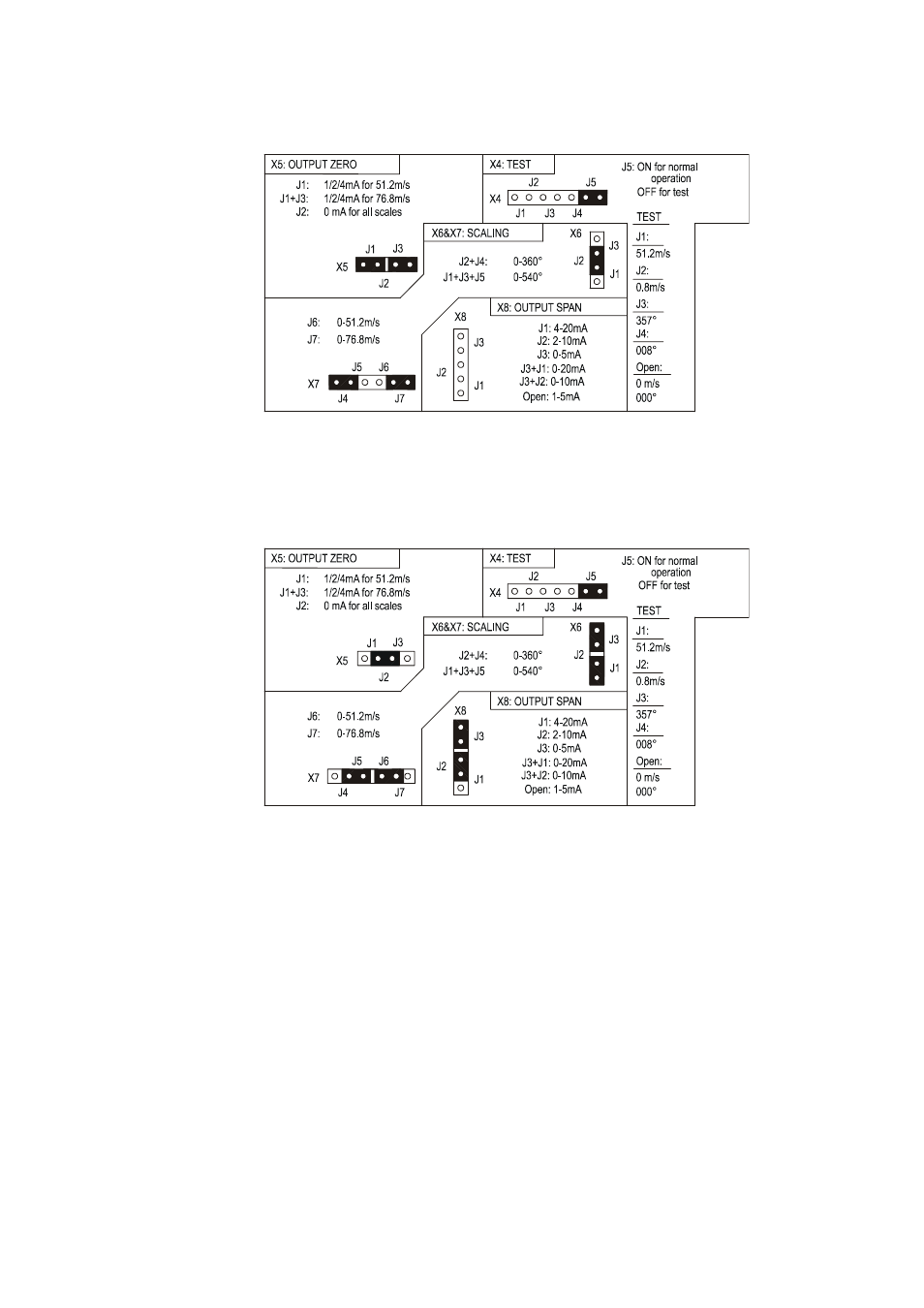

Figure 6
Jumpers for the Setting: 1 ... 5 mA,
0° ... 360°, 0 ... 76.8 m/s
0206-045
Figure 7
Jumpers for the Setting: 0 ... 10 mA,
0° ... 540°, 0 ... 51.2 m/s
Connections
The WAT12 transmitter provides the line cable entry
through a gland for a cable with a diameter from 7 to
10 mm. For better protection against RF interference, bend
the cable shield as illustrated in Figure 8 on page 17.
