Chapter 3 ______________________________________________________Installation and Startup
VAISALA _______________________________________________________________________ 15
of the PC name. The problem can also be caused by limited
communication rights in the PC network.
If a sensor is not connected or if data is unavailable, the data
collection device may send (depending on its configuration) any non-
numeric value between the delimiters, for example, ///// or nothing at
all (which would be received as two consecutive delimiters). In these
cases, the numeric displays will change to NaN (Not a Number) and
there will be gaps in the corresponding graph.
In Browser, the corresponding table cell contains the same string
value that was received in the message, for example, ///// or nothing at

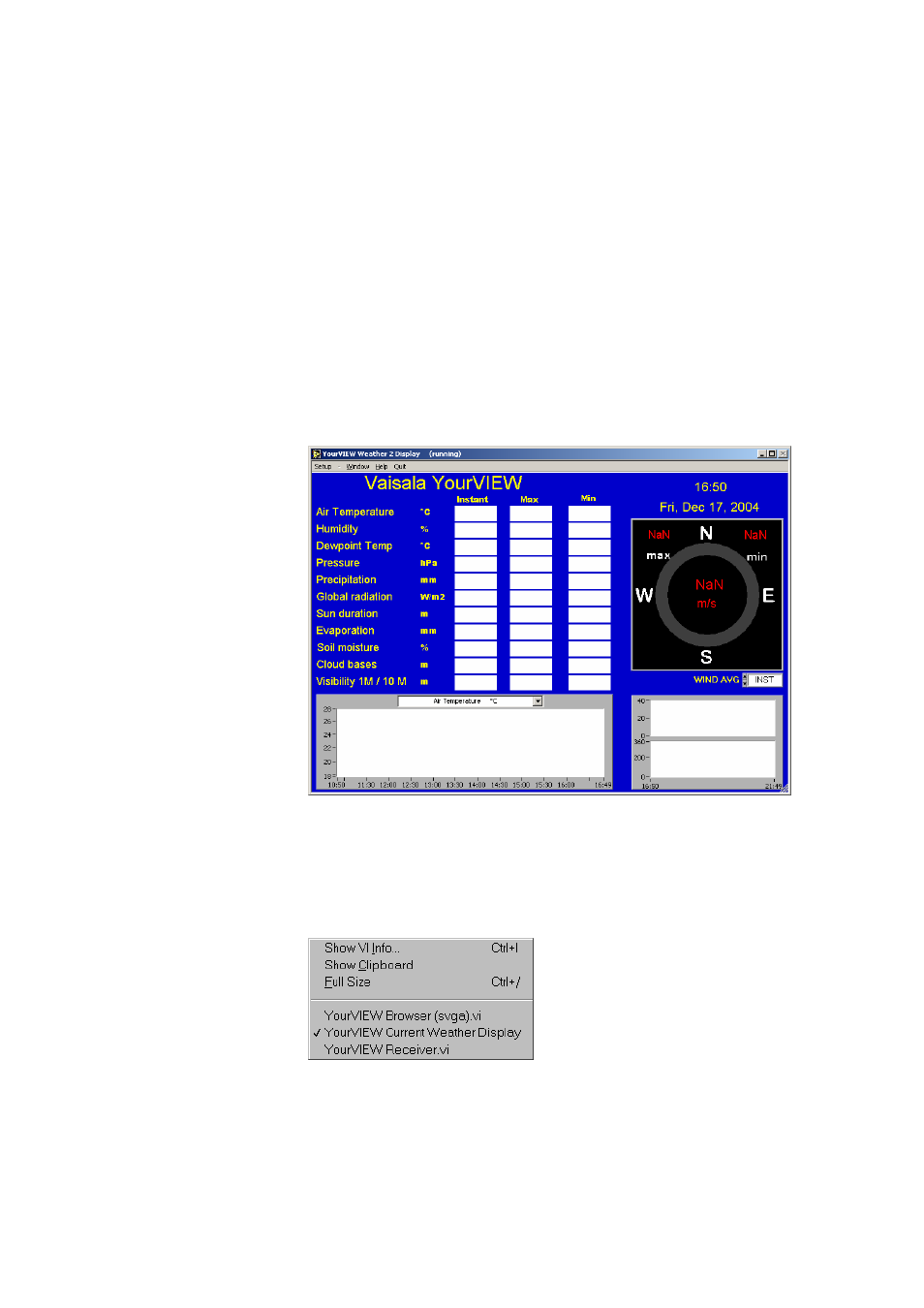

all. An example of the Weather Display is shown in Figure 4 below.
0412-102
Figure 4 Weather 2 Display
Other windows can be opened by selecting the module name from the
Windows menu as shown in Figure 5 below. Alternatively, you can
click the Window button on the taskbar.
0105-143
Figure 5 Window Menu
