Connecting the Battery
Follow these steps to connect the battery to the radiosonde:
1.
Open the foil bag as indicated on the bag.
0912-138

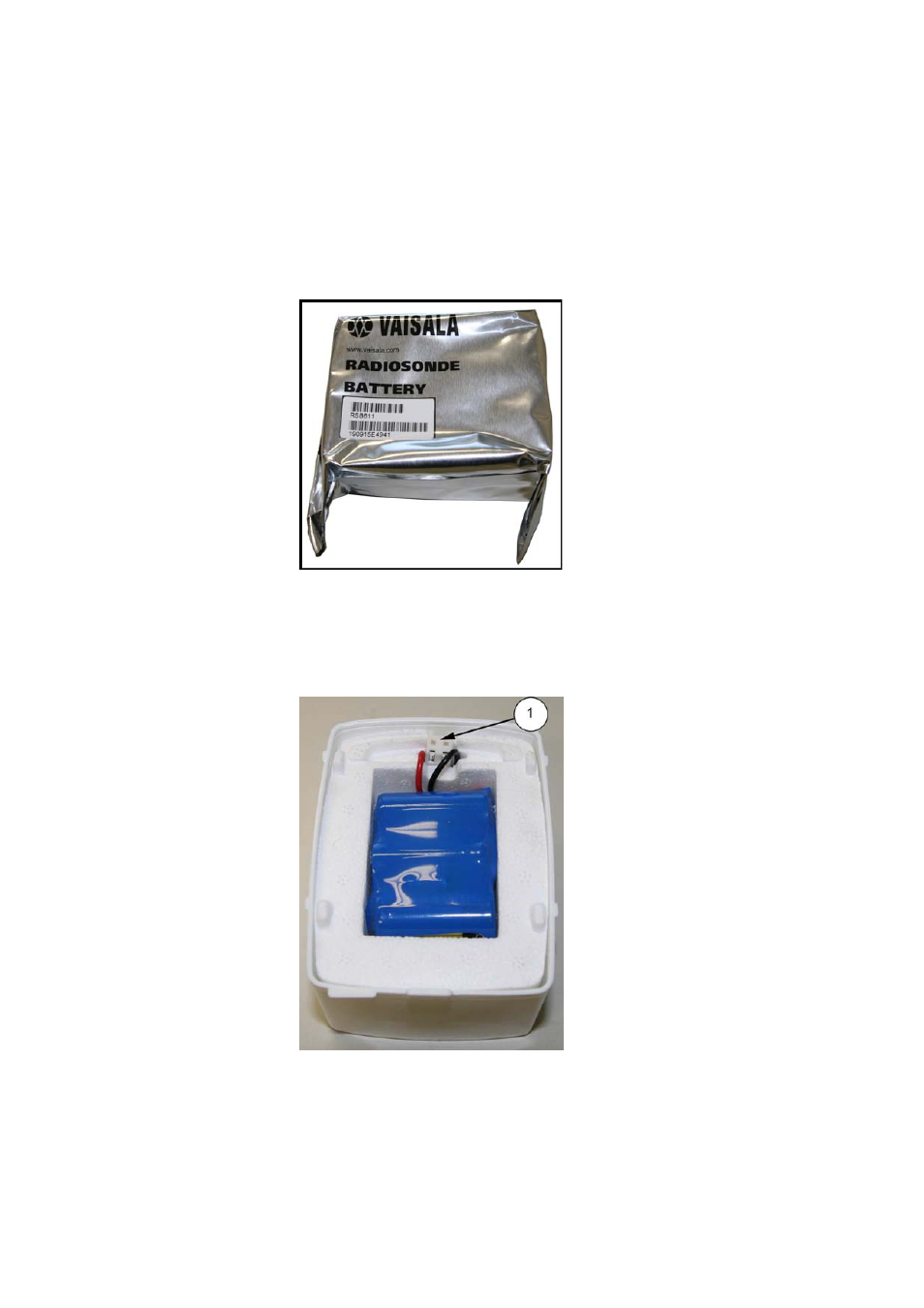

Figure 16
Battery Package
2.
Take out the battery connector (number 1 in
by gently pulling the wires.
0912-140
Figure 17
Battery Connector Shown with RSB611
