Chapter 4 _________________________________________ MENU OPERATIONS AND SETTINGS
CHAPTER 4
MENU OPERATIONS AND SETTINGS
Function Keys and Menu Structure
Navigating in Menu
0605-106

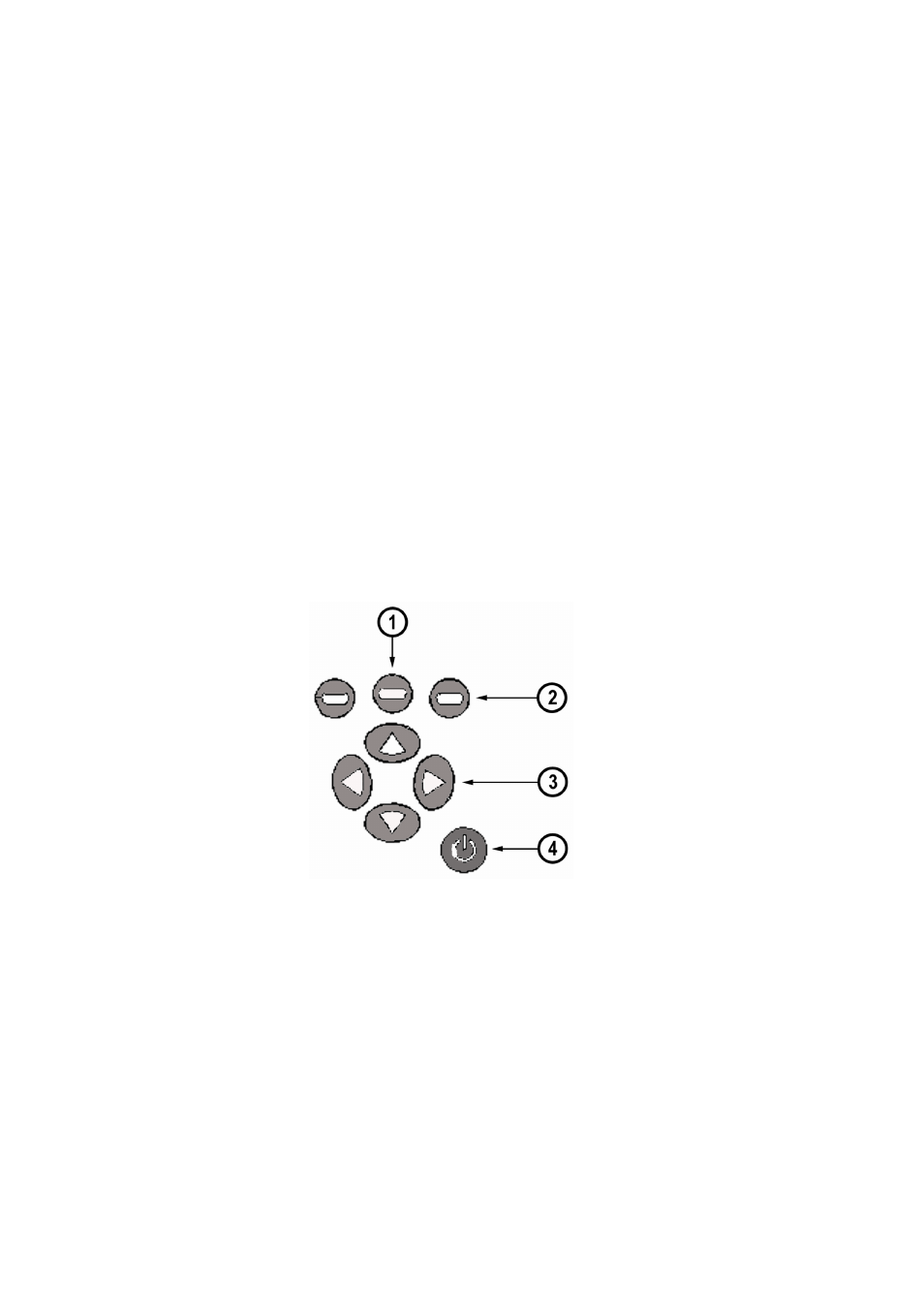

Figure 9
Keypad
The following numbers refer to Figure 9 on page 21 above:
1 = To open the main menu, first press any of the arrow keys (3),
then press the middlemost function key (1).
2 = Function keys left/middle/right
3 = Arrow keys up/down/left/right
4 = Power On/Off key
