Chapter 3 ________________________________________________________________ Installation
VAISALA ________________________________________________________________________ 31

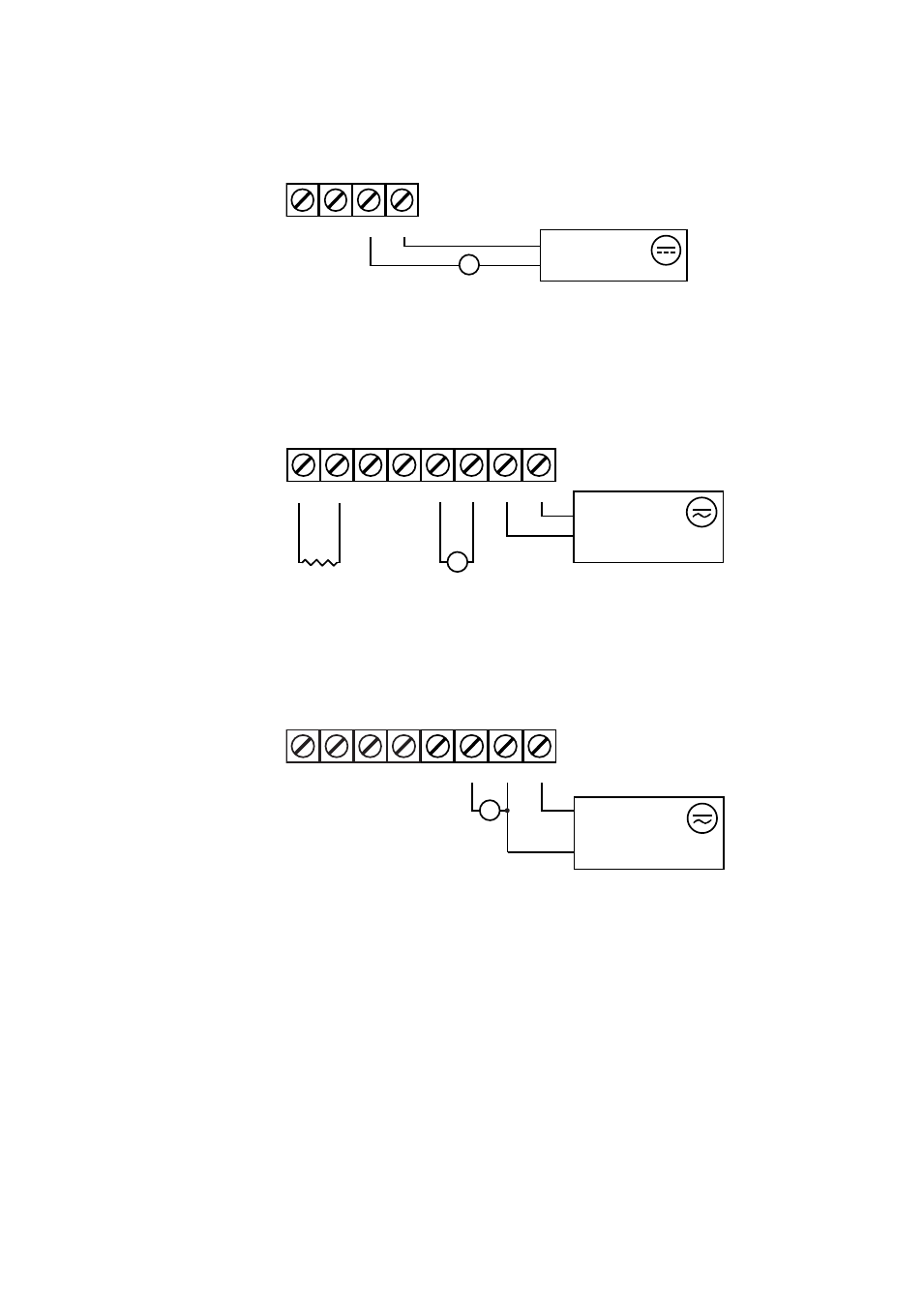

Wiring TMW92
1202-117
Figure 16
Wiring TMW92
Wiring TMW93
Recommended wiring for long cables:
1202-118
Figure 17
Wiring TMW93
3-wire connection with -Vs as common ground. Maximum cable
resistance is 2.5
Ω (24V supply, 0 ... 10 V output, relay not used).
1202-119
Figure 18
Three-Wire Wiring for TMW93
-T +T
Power supply
10 ... 28 VDC
R
L
= 0 ... 600 Ω
mA
-T
-Vs
+T
+Vs
Power supply
18 ... 35 VDC
or 24 VAC ±20%
V
Relay
max. 50 VDC
500 mA
R
L
= 10 kΩ min.
-T
-Vs
+T
+Vs
Power supply
18 ... 35 VDC
or 24 VAC ±20%
V
Relay
R
L
= 10 kΩ min.
